Evaporative Emission Control Canister: Testing and Inspection

Procedure
1. Disconnect the vacuum hoses from the EVAP canister.

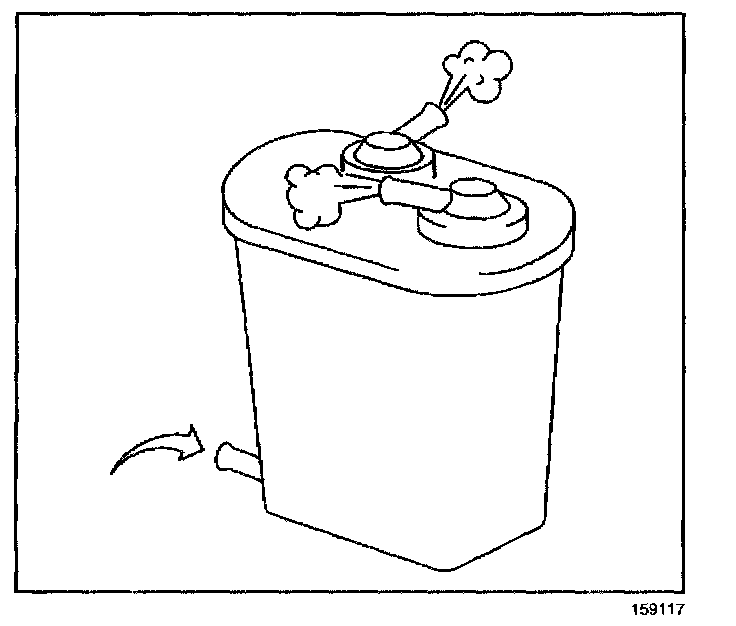

2. Blow air into the tank pipe of the EVAP canister. There should be no restriction of air flow through the purge pipe and the air pipe.
3. Replace the EVAP canister, if the EVAP canister fails the above check.
4. Connect the vacuum hoses to the EVAP canister.
