Evaporative Emission Control Canister: Service and Repair

Removal Procedure

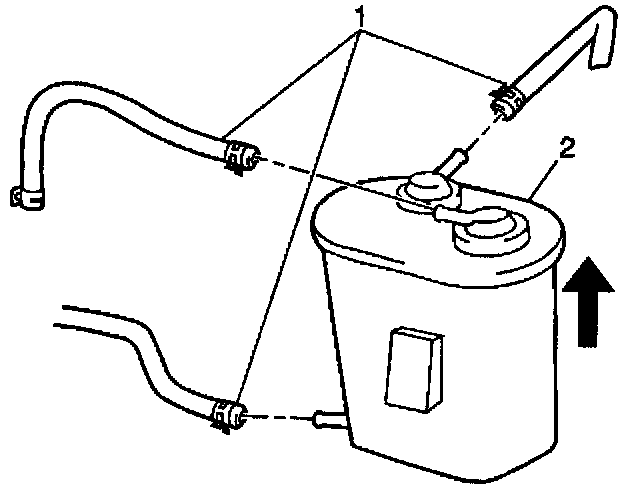

1. Disconnect the three [1][2]EVAP hoses (1) from the Evaporative Emission (EVAP) canister.
2. Remove the EVAP canister (2) from the canister bracket in the engine compartment.

Installation Procedure
1. Install the EVAP canister to the canister bracket in the engine compartment.
2. Connect the three [1][2]EVAP hoses to the EVAP canister.
