Home
>>
Chevy Truck
>>
1998
>>
Tracker 4WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>

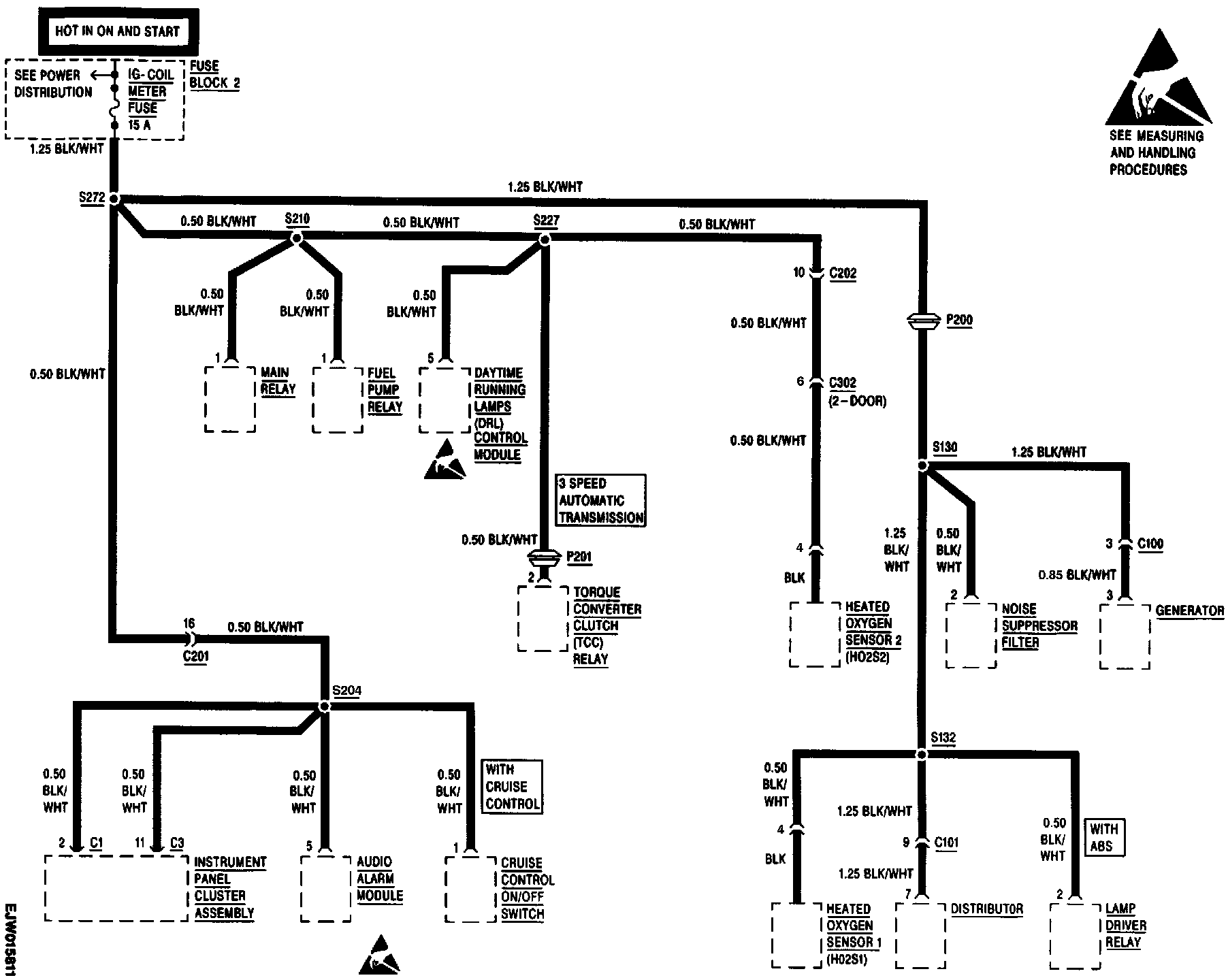

IG-Coil Meter Fuse
IG-Coil Meter Fuse
IG-Coil Meter Fuse:
