Locking Hub Replacement (Automatic Locking Hub)

FRONT HUB/BEARING





REMOVAL PROCEDURE

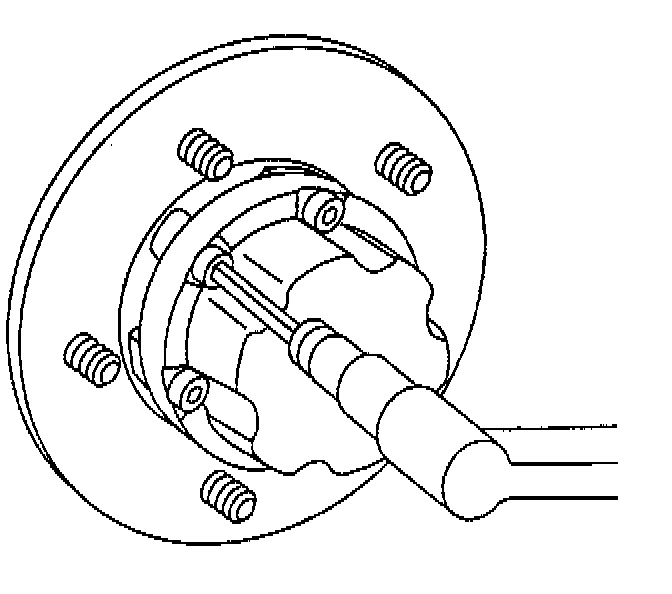

1. Remove the six Allen-head bolts in order to remove the automatic locking hub.
2. Remove the automatic locking hub.
3. Remove the locking hub assembly from the wheel hub.

INSTALLATION PROCEDURE

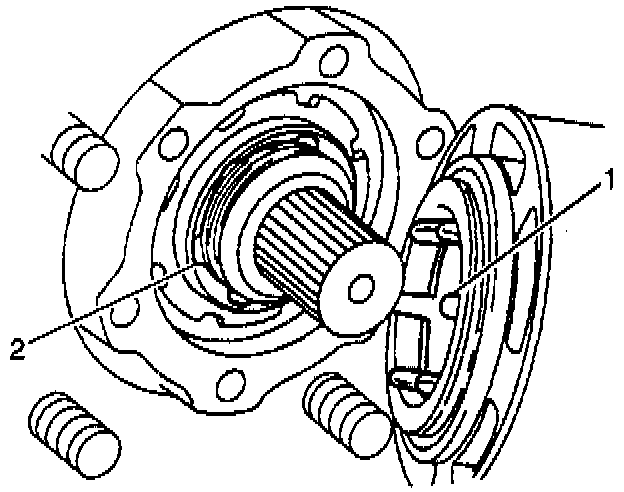

1. Install the automatic locking hub assembly to the wheel hub.





Be sure to align the fix cam (1) with the slots in the spindle (2).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

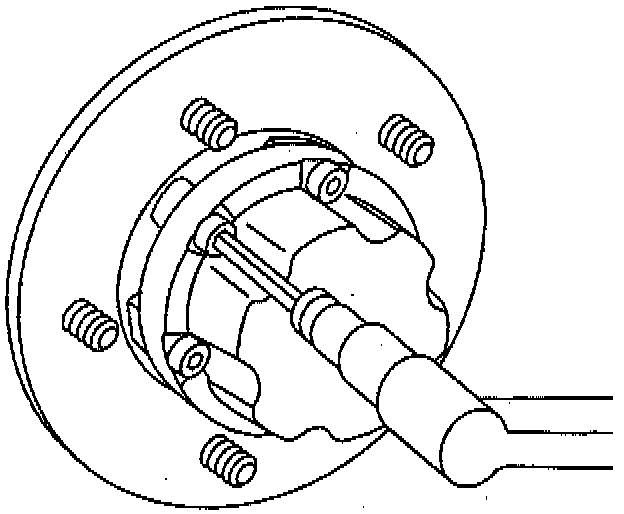

2. Install the six Allen-head bolts.

Tighten the automatic locking hub bolts to 33 Nm (24 lb ft).
