Radiator Hose Replacement - Outlet (Hose 2)

REMOVAL PROCEDURE
1. Remove the radiator cap.
2. Start the engine. Run the engine for 15 minutes.
3. Stop the engine.





4. Open the drain plug (3) on the radiator in order to drain the coolant.

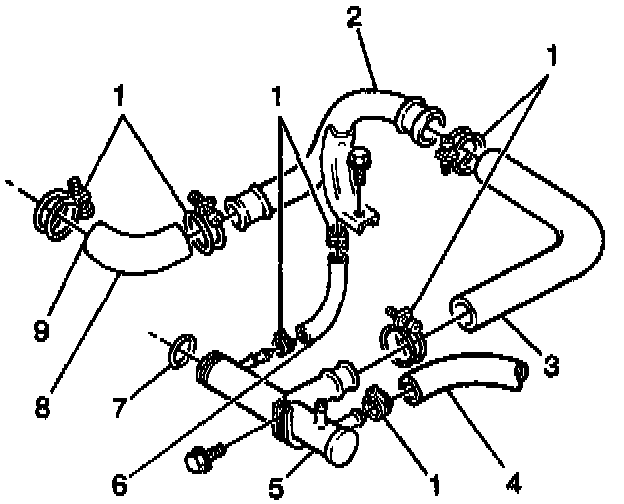

5. Loosen the two hose clamps (1) on outlet hose #2 (3).
6. Remove the hose from the radiator outlet pipe (2) and from the coolant intake pipe (5).

INSTALLATION PROCEDURE





1. Position a new hose clamp (1) on each end of the radiator outlet hose #2 (3).
2. Install the new radiator outlet hose #2 (3) on the radiator outlet pipe (2) and on the coolant intake pipe (5).
3. Position the hose over the intake pipe and radiator outlet pipe flares.
4. Secure the hose with the two hose clamps (1).
5. Fill the radiator with approved coolant.
