Instrument Panel Cluster Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the hazard lamps switch by gently pulling the knob straight up.
3. Remove the cluster bezel from the panel.

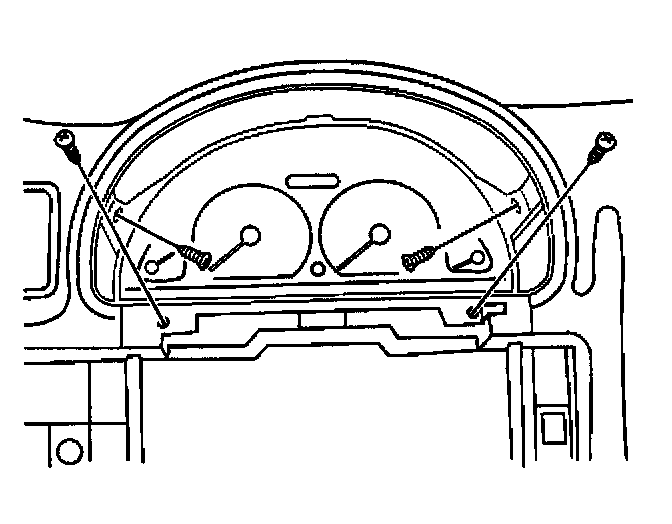

4. Remove the 4 screws and pull the cluster assembly forward from the panel.
5. Disconnect the 3 electrical connectors.
6. Remove the speedometer cable at the speedometer head.
7. Remove the cluster assembly from the vehicle.

INSTALLATION PROCEDURE
1. Connect the 3 electrical connectors and install the speedometer cable to the cluster assembly.
2. Install the cluster assembly to the panel. Secure the cluster assembly with the 4 screws.
3. Install the cluster bezel to the panel.
4. Push into place the hazard lamps switch knob.
5. Connect the negative battery cable.
