Transmission Position Sensor/Switch, A/T
>>
Transaxle Range Switch
Transaxle Range Switch

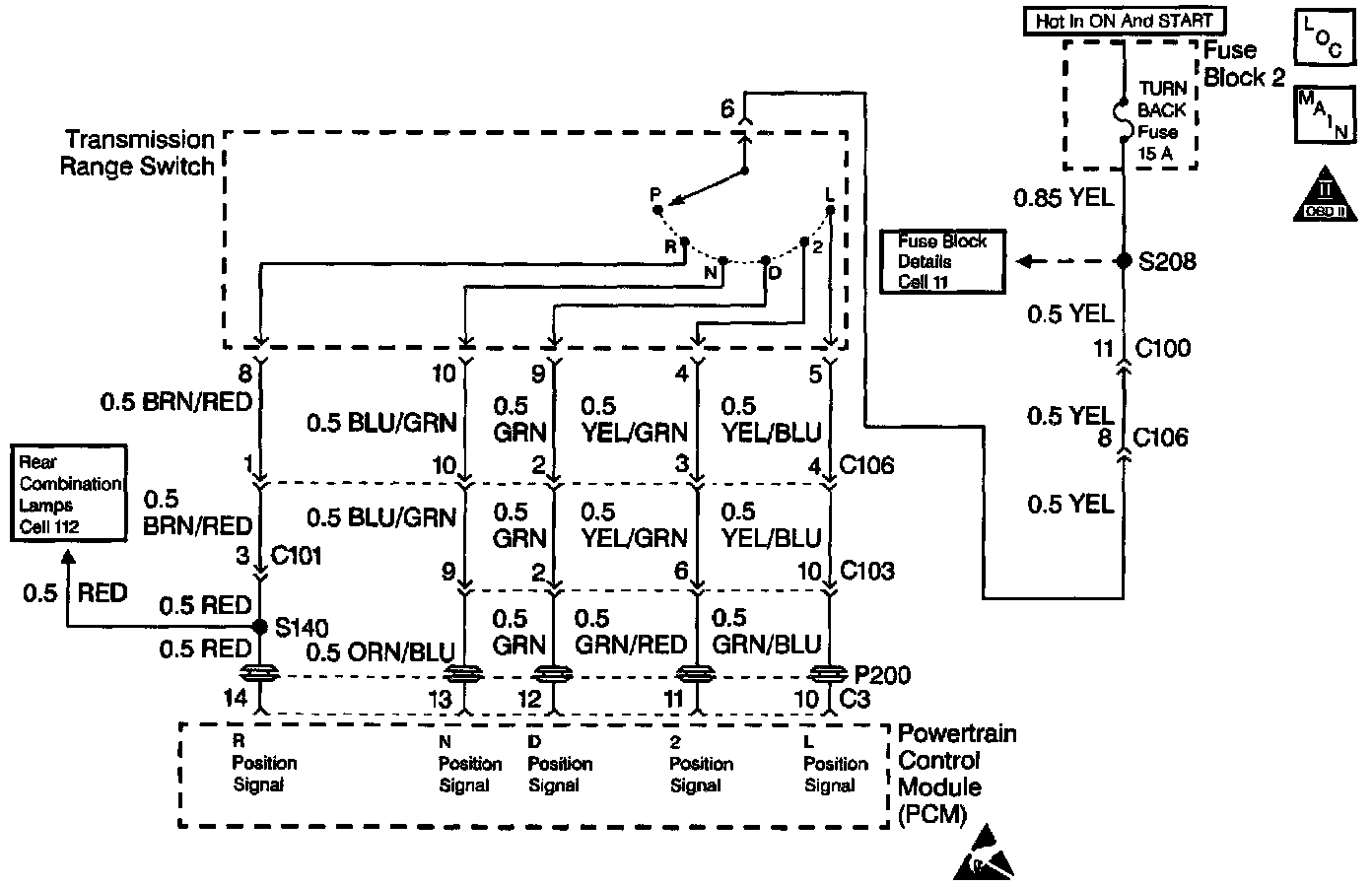

Wiring Diagram:
