Home
>>
Chevy Truck
>>
1998
>>
Tracker 4WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lamps
>>
Headlamps DRL
>>
Control Module
Control Module

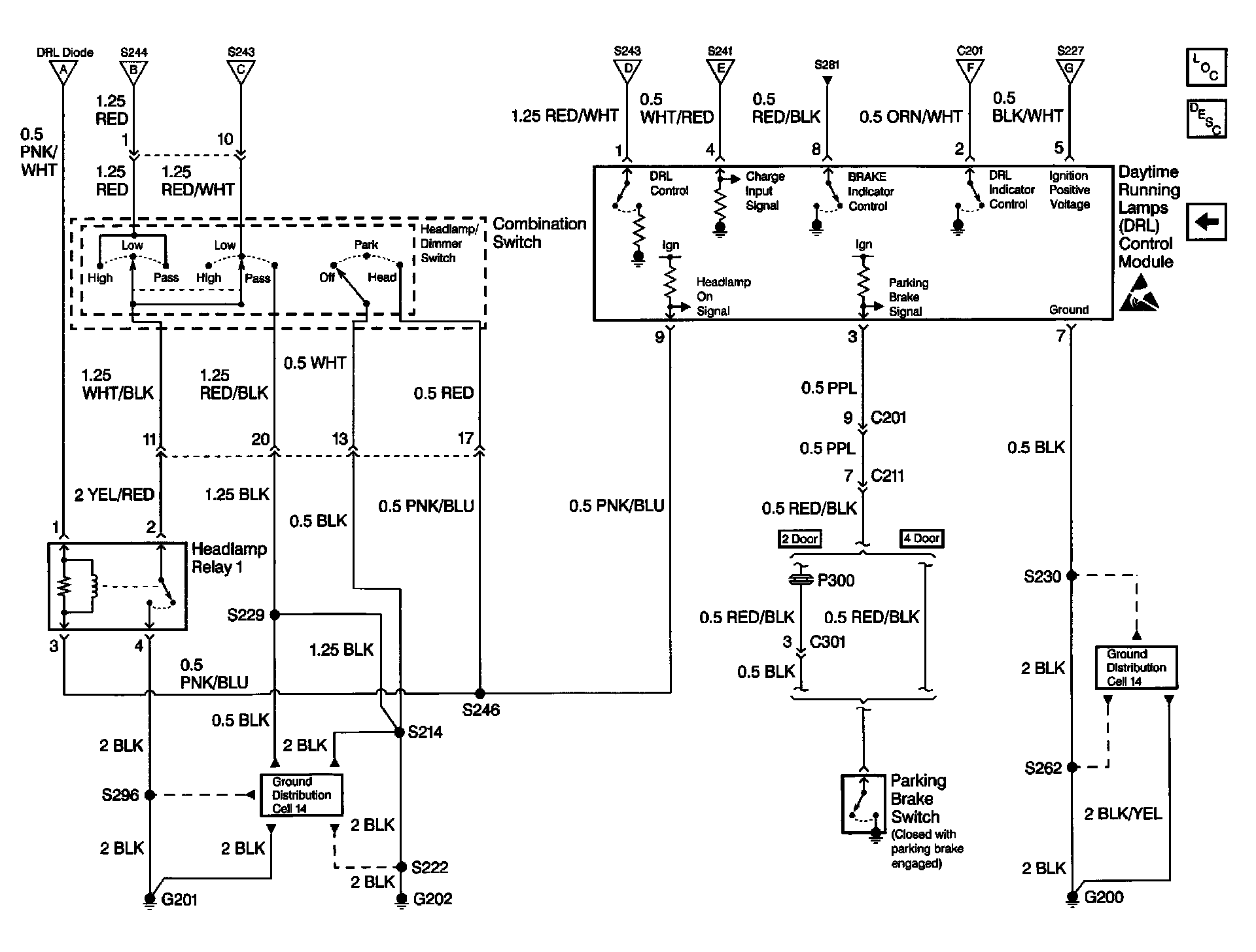

Headlights DRL Schematics: Control Module:
