Home
>>
Chevy Truck
>>
1998
>>
Tracker 4WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
C1
C1

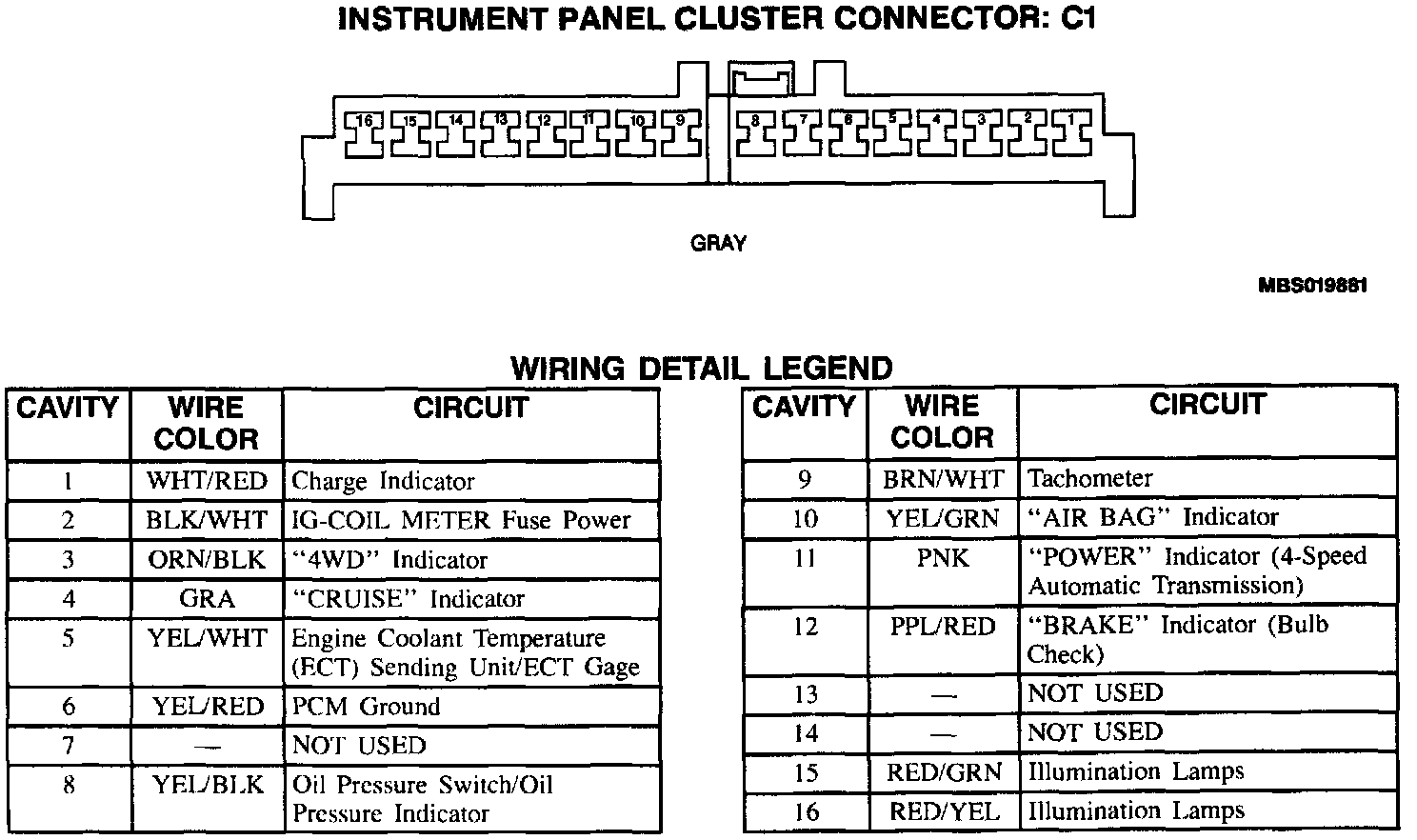

Instrument Panel Cluster Connector: C1:
