Diagnostic System Check - ABS

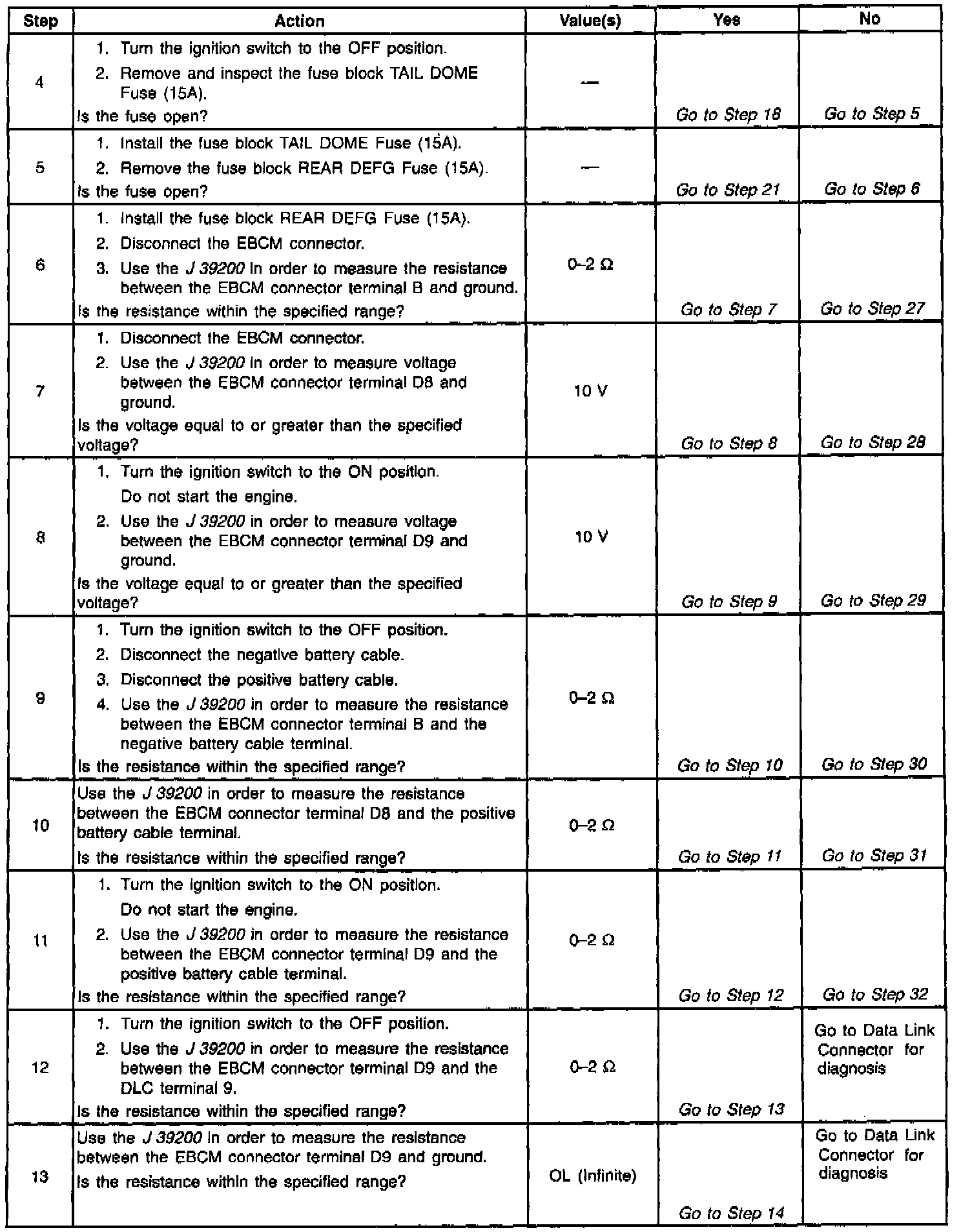

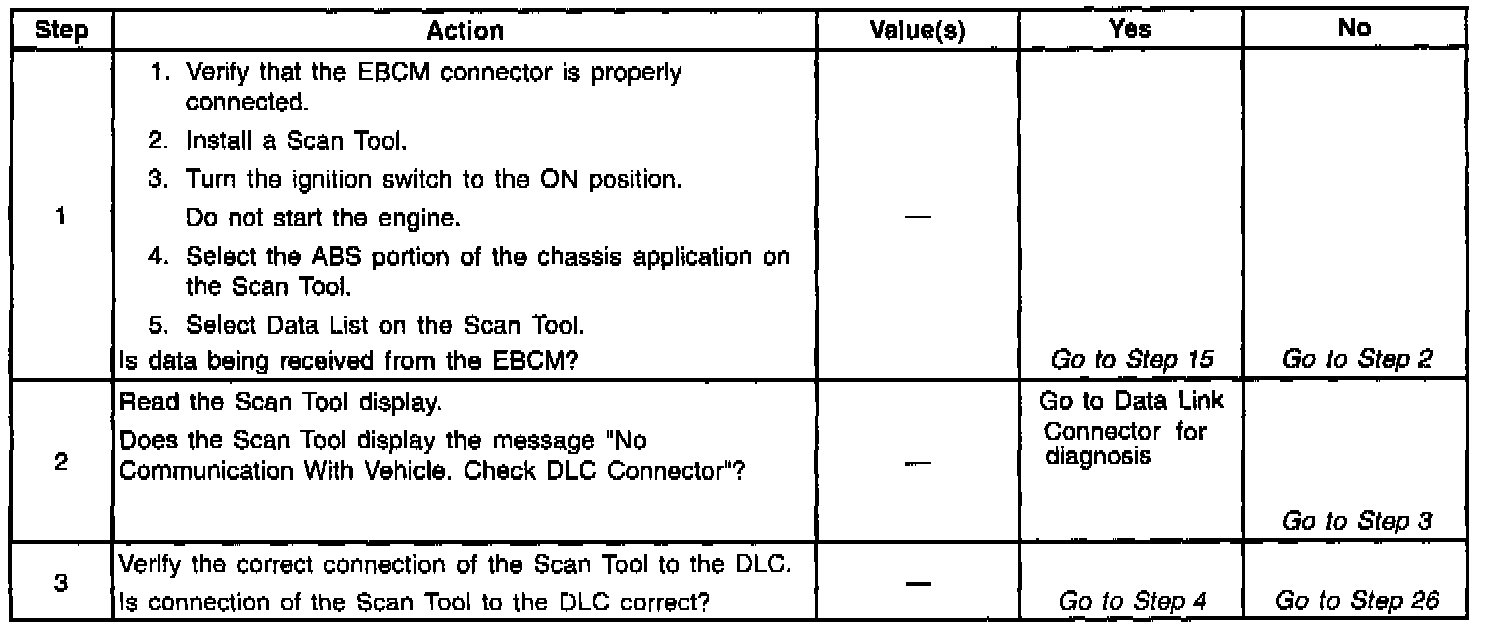

Part 1 Of 5:




Part 2 Of 5:

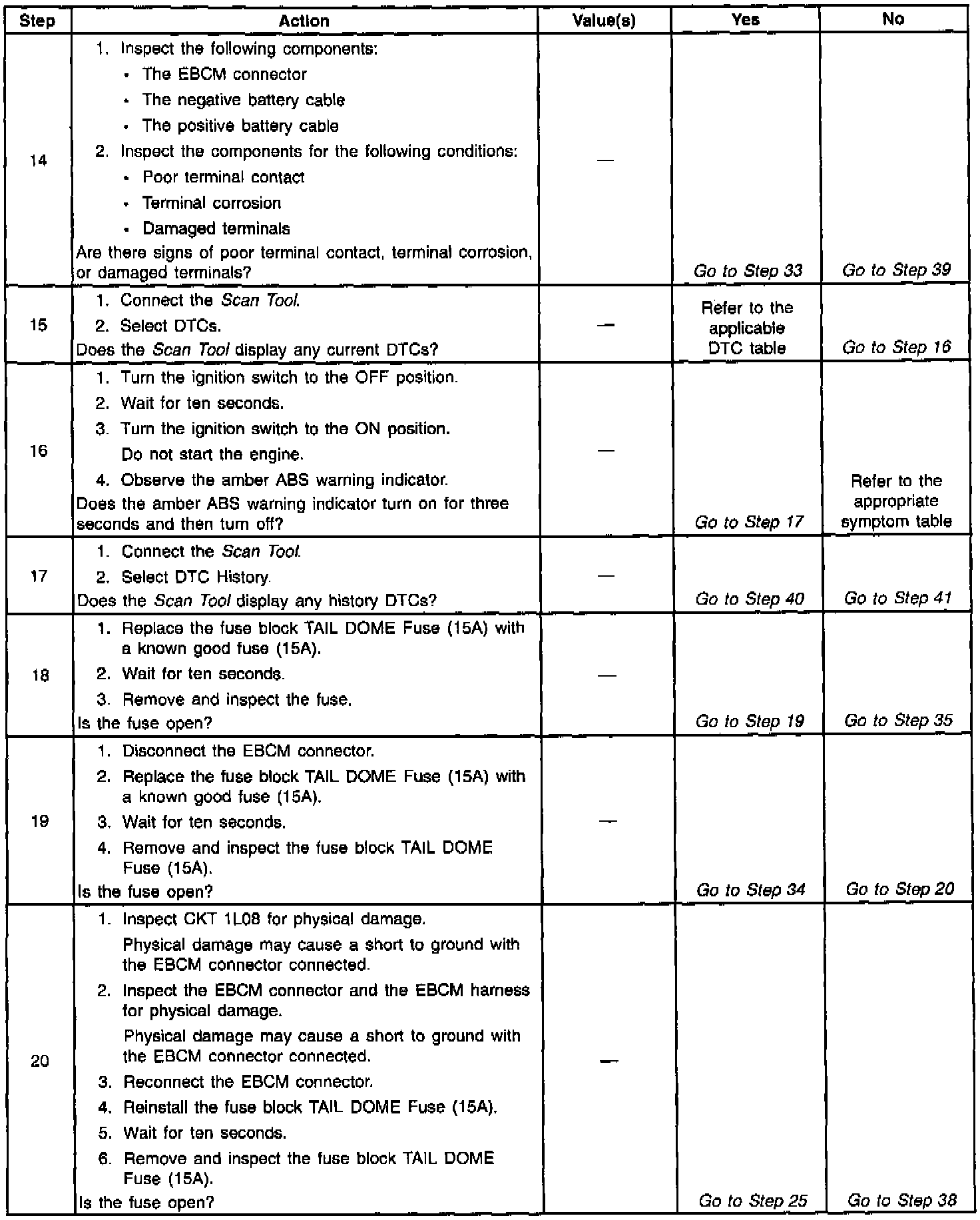

Part 3 Of 5:

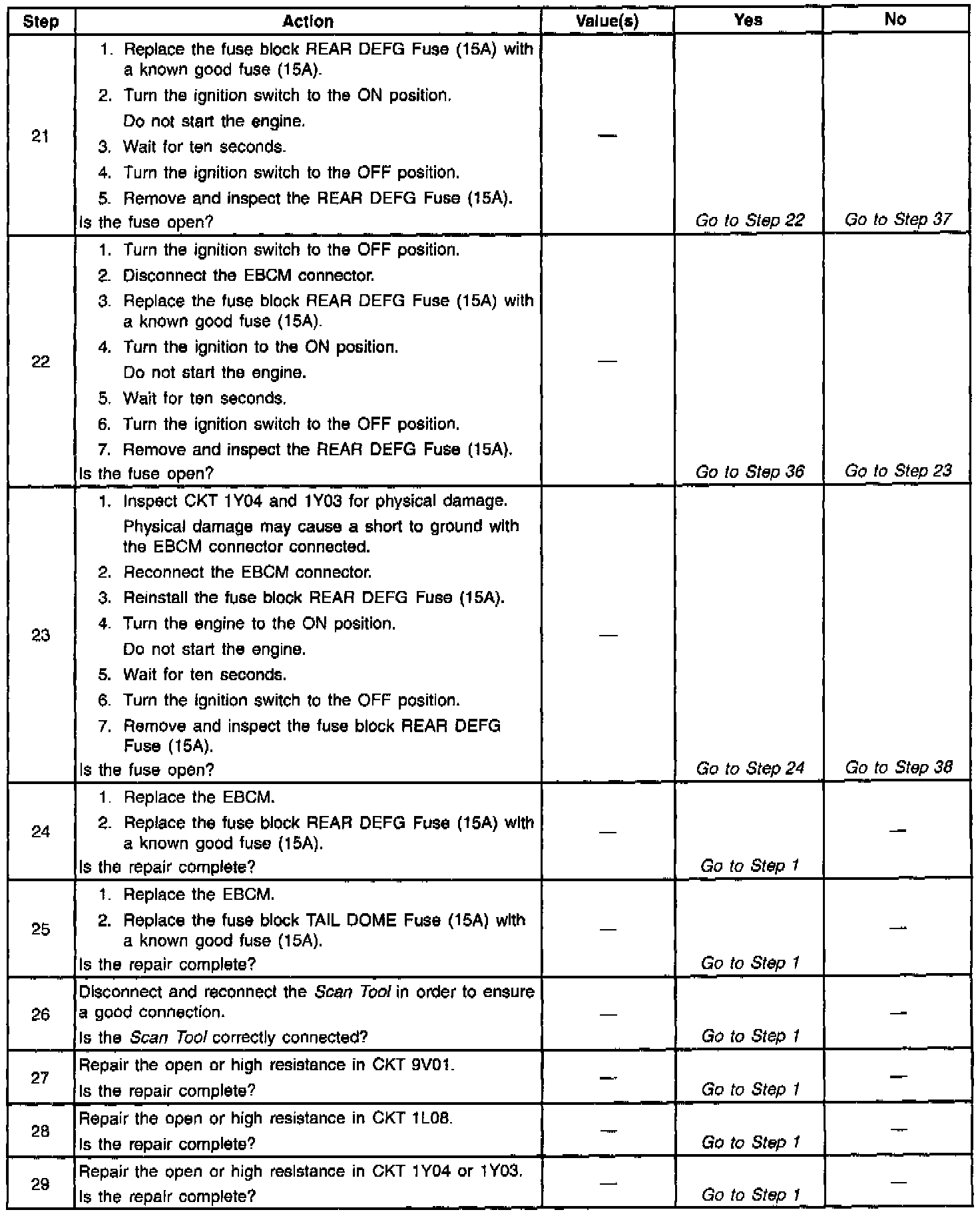

Part 4 Of 5:

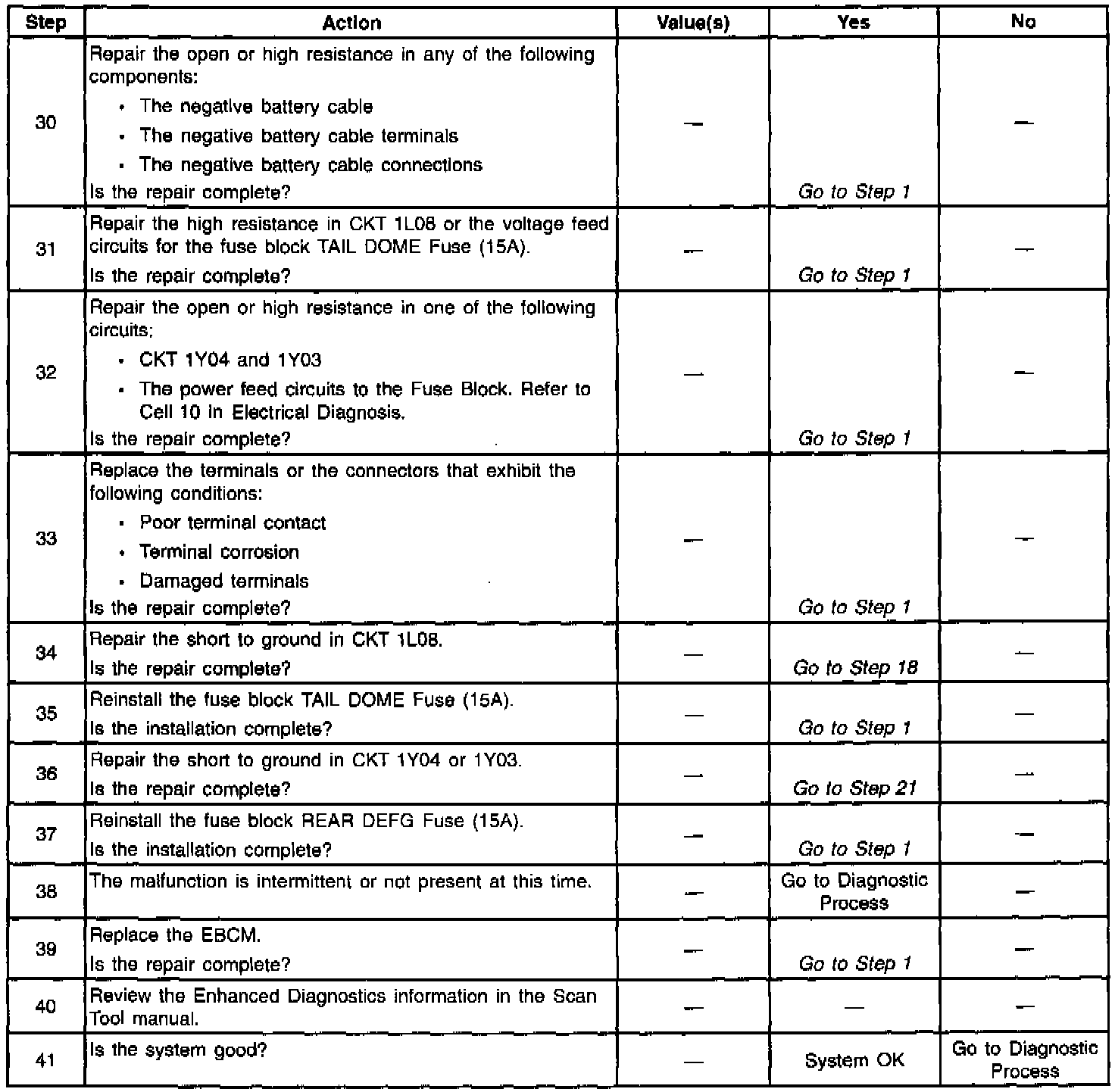

Part 5 Of 5:






System Description
The diagnostic system check is an organized method of identifying any problems caused by a malfunction in the Antilock Brake System (ABS) system.
The service technician must begin diagnosis of any ABS complaint with the diagnostic system check.
The diagnostic system check directs the service technician to the next logical step in diagnosing the complaint.

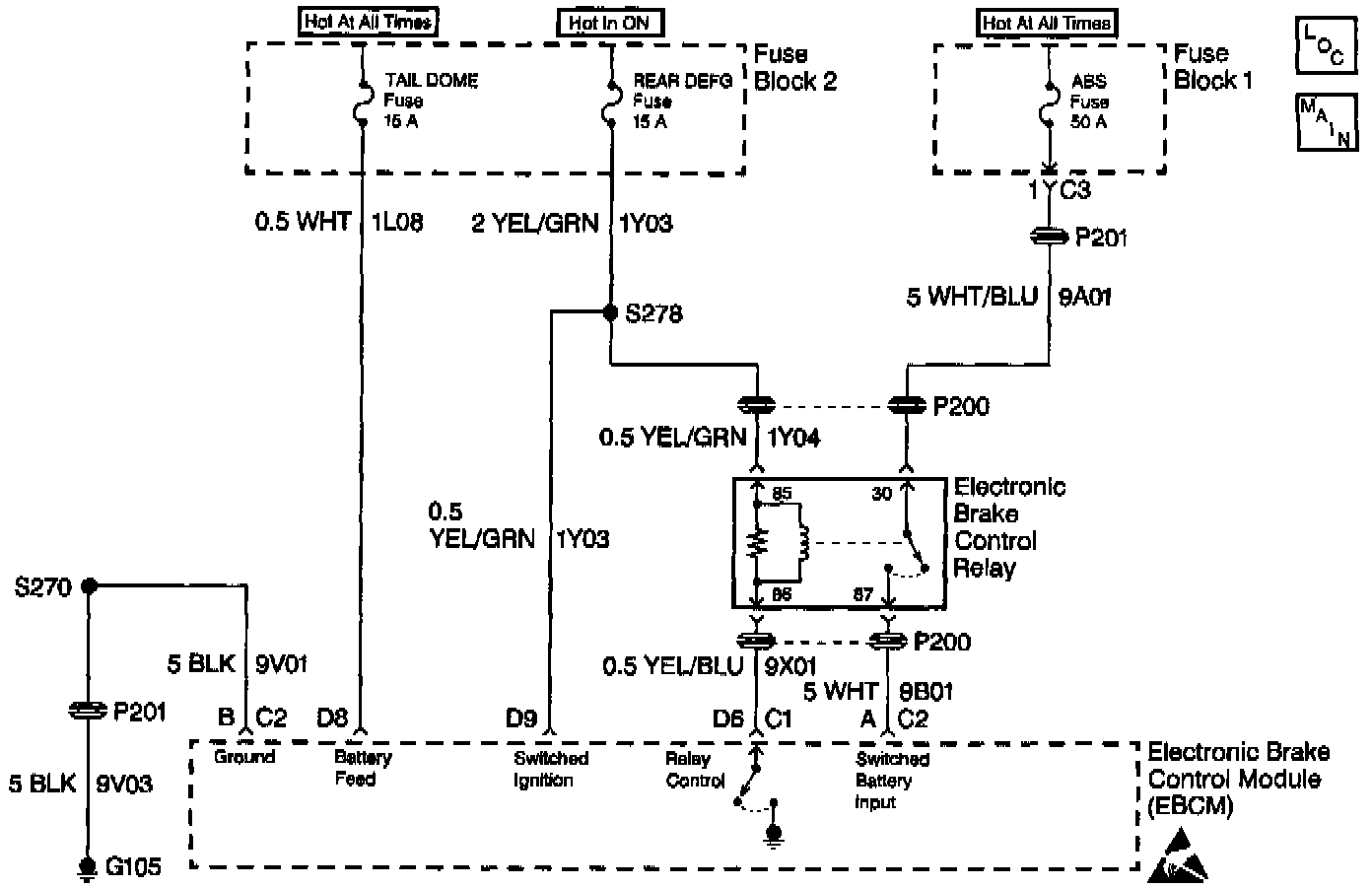

Serial data is transmitted/received by the Electronic Brake Control Module (EBCM) through connector C1 terminal C5.The EBCM is supplied switched ignition voltage through connector C1 terminal DO and battery feed voltage through connector C1 terminal D8.The EBCM ground is provided through connector C2 terminal B.

Diagnostic Process
Use the following ordered procedure when servicing the ABS.
Failure to use the following procedure may cause the loss of important diagnostic data. Failure to use the following procedure may lead to difficult and time-consuming diagnosis procedures.
1. Use the following procedure to perform a vehicle preliminary diagnosis inspection:

- Inspect the brake master cylinder fluid reservoir.
- Verify that the brake fluid level is correct.

- Inspect the master cylinder for contamination.
- Inspect the brake modulator for leaks or wiring damage.
- Inspect the brake components of all four wheels.
- Verify that no drag exists.
- Verify that the brake apply operation is correct.
- Inspect for worn or damaged wheel bearings.
- Worn or damaged wheel bearings may cause a wheel to "wobble".
- Inspect the wheel speed sensors and the wheel speed sensor wiring.
- Verify that all of the sensors solidly attach.
- Inspect for wiring damage, especially at vehicle attachment points.
- Inspect the outer CV joint.
- Verify that the outer CV joint is aligned correctly.
- Verify that the outer CV joint operates correctly.
- Inspect the tires.
- Verify that the tires meet legal trend depth requirements.


2. Perform the Diagnostic System Check.

If any Diagnostic Trouble Code (DTC)s are displayed, select DTC History.
2.1. Determine which malfunction occurred the most recently.
2.2. Diagnose and repair the most recent malfunction first.

3. Determine if the following conditions exist:

- No DTCs are present.
- There are malfunctions in the mechanical components.
- The failure is intermittent and cannot be reproduced.
4. If the above conditions exist, attempt to reproduce the malfunction:

4.1. Use the automatic snapshot feature of the Scan Tool while test driving the vehicle.
4.2. Perform normal acceleration, stopping, and turning maneuvers during the test drive.
If the test drive does not reproduce the malfunction, perform an ABS stop.
Perform the stop on a low coefficient surface (such as gravel).
Perform the stop from a speed of 48-80 km/in (30-50 mph).
Trigger the snapshot mode on any ABS DTC while performing the stop.
4. 3. If the ABS stop does not reproduce the malfunction, use the enhanced diagnostic information in the DTC History in order to determine if further diagnosis is needed. This determination will be based on the frequency of failure.

5. Clear the ABS DTCs after all of the system malfunctions have been corrected.

Diagnostic Aids
Communication with the EBCM is not possible when excessive resistance exists in the following components:
- Grounds
- The power supply circuits
If communication with the EBCM is not possible, perform the following actions:

- Verify that the EBCM ground connection is good.
- Verify that no excessive resistance exists in any of the power supply circuits. The following list contains items that need to be inspected when diagnosing this system:
- Open REAR DEFOG fuse.
- Open TAIL DOME fuse.
- Clean, tight G105.Excessive resistance in the following circuits will not allow communication with the EBCM:
- 1L08-Battery feed.
- 1Y03-Switched ignition.
- 9V01/G105-Ground.
- 3H01 -Serial data line.
If communication with the EBCM is not possible with a scan tool, ensure these circuits are in good condition and that there is no excessive resistance. Also check EBCM connectors C1 and C2 for poor connector terminal contact.

IMPORTANT: Zero the J 39200 test leads before making any resistance measurements. Refer to the J 39200 user's manual.
