Trim Panel: Service and Repair

REMOVAL PROCEDURE

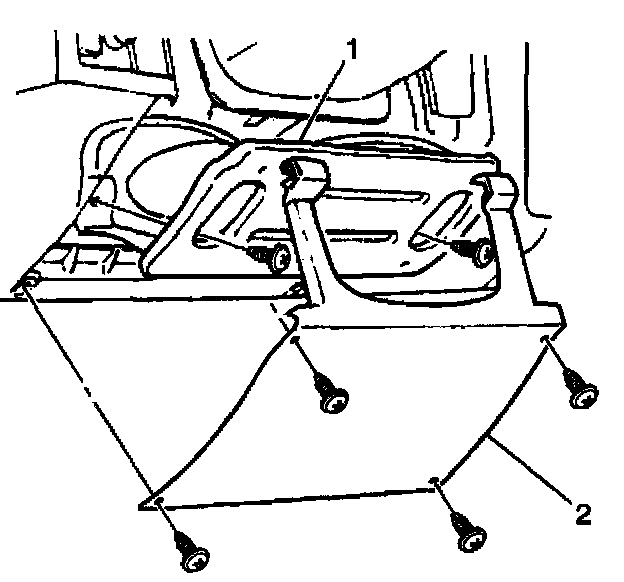

1. Remove the 4 screws and the knee bolster trim panel (2).
2. Gently pull the top portion of the knee bolster trim panel (2) in order to release the 2 clips.

INSTALLATION PROCEDURE

Install the knee bolster trim panel (2). Secure the trim panel with the 2 clips and the 4 screws.
