P0461

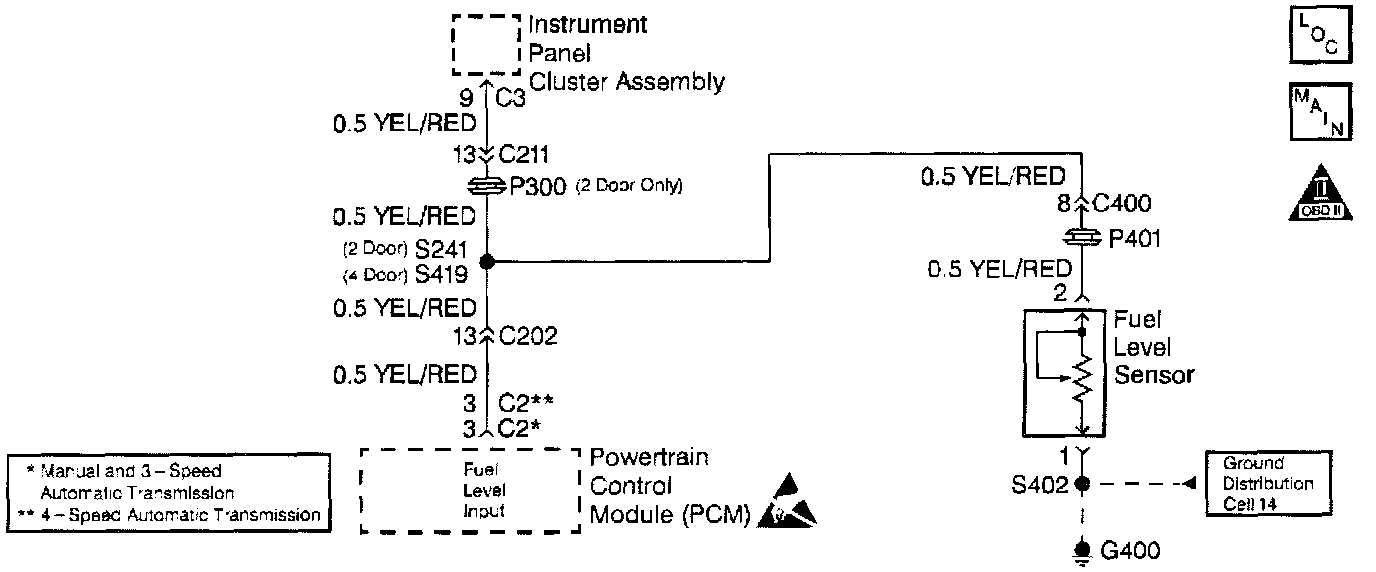

Wiring Diagram:

Circuit Description
The powertrain control module (PCM) uses the fuel level input from the fuel level sensor in order to calculate the expected vapor pressures within the fuel system. Vapor pressures vary as the fuel level changes. Vapor pressure is critical to determining if the EVAP control system is operating properly. Fuel level information is used in determining whether to run an EVAP control system diagnostic. A fuel level that is too high or too low may prevent the EVAP control system diagnostics from accurately detecting a fault.

Conditions for Setting the DTC
^ Fuel level change check: maximum to minimum is less than 2 gallons.
^ Condition present once per drive cycle.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL) after two consecutive ignition cycles in which the diagnostic runs with the fault active.
^ The PCM records the operating conditions at the time the diagnostic fails. This information is stored in the Freeze Frame buffer.

Conditions for Clearing the MIL/DTC
^ The MIL turns OFF after three consecutively passing trips without a fault present.
^ A History DTC clears after 40 consecutive warm-up cycles without a fault.
^ Use the scan tool Clear DTC Information function or disconnect the PCM battery feed in order to clear the DTC.

Diagnostic Aids
Check for any of the following conditions:
^ If a DTC P0463 is also displayed, diagnose that DTC first.
^ A stuck fuel level sensor may cause a DTC P0461 to set.
^ A faulty connection at the PCM.
The scan tool will display a default value of 100% all the time when a fuel level sensor circuit DTC is present. Any current or stored fuel level sensor circuit DTCs (DTC P0463 or P0461) must be cleared before diagnosing the fuel level sensor circuit with a scan tool.

An open in the fuel level sensor circuit will indicate a 0% fuel level (empty fuel tank), while a short to ground in the fuel level sensor circuit will indicate a 100% fuel level (full fuel tank).
Check the resistance of the fuel level sensor at the following positions:

Fuel Level Sensor Inspection

Check for a faulty electrical connection at the PCM. An intermittent malfunction may be caused by a problem in the fuel level sensor electrical circuit. Inspect the wiring harness and components for any of the following conditions:
^ Backed out terminals.
^ Improper mating of terminals.
^ Broken electrical connector locks.
^ Improperly formed or damaged terminals.
^ Faulty terminal to wire connections.
^ Physical damage to the wiring harness.
^ A broken wire inside the insulation.
^ Corrosion of electrical connections, splices, or terminals.
If the DTC P0461 cannot be duplicated, the information included in the Freeze Frame data can be useful in determining vehicle operating conditions when the DTC was first set.

Test Description

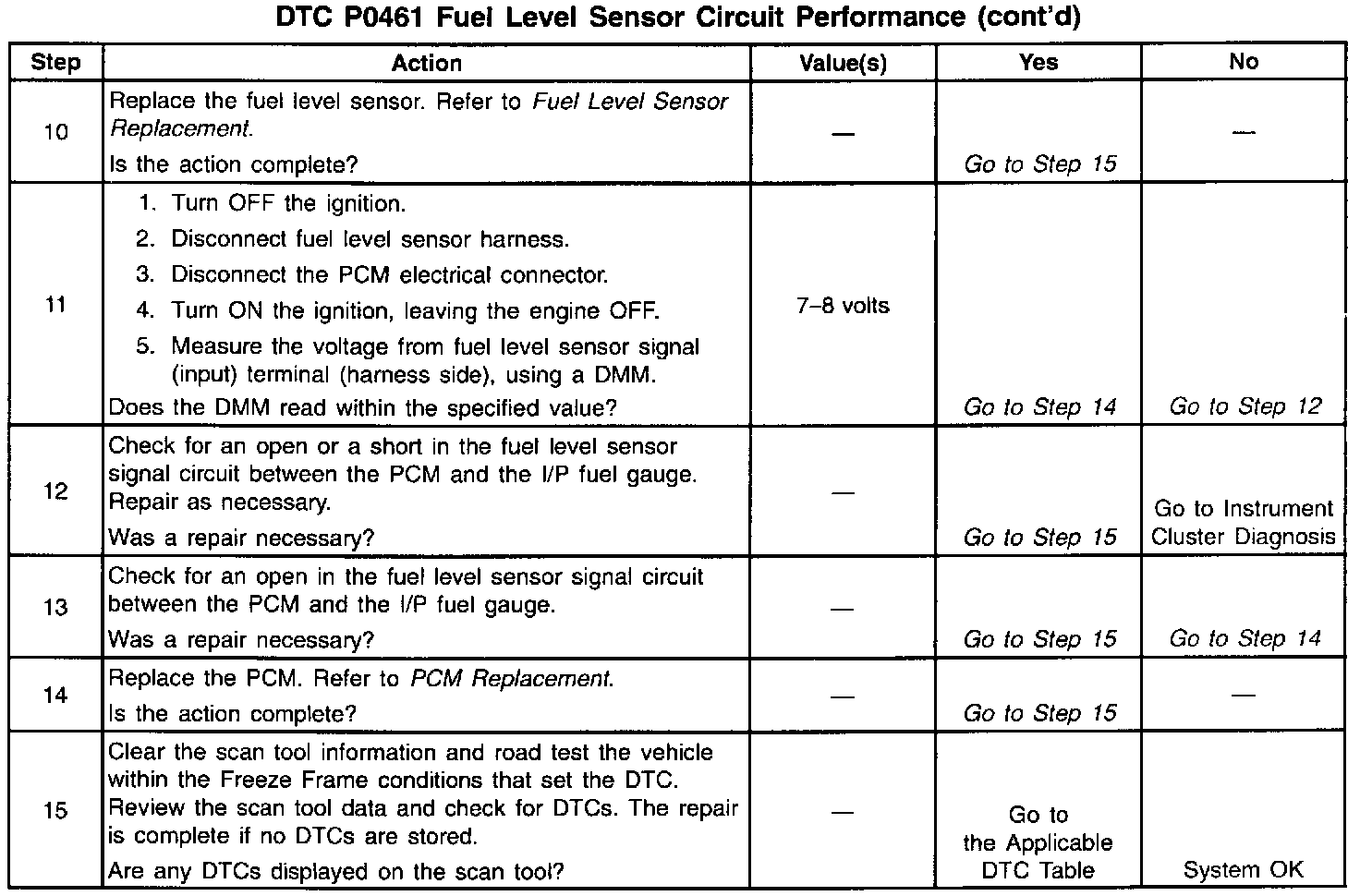

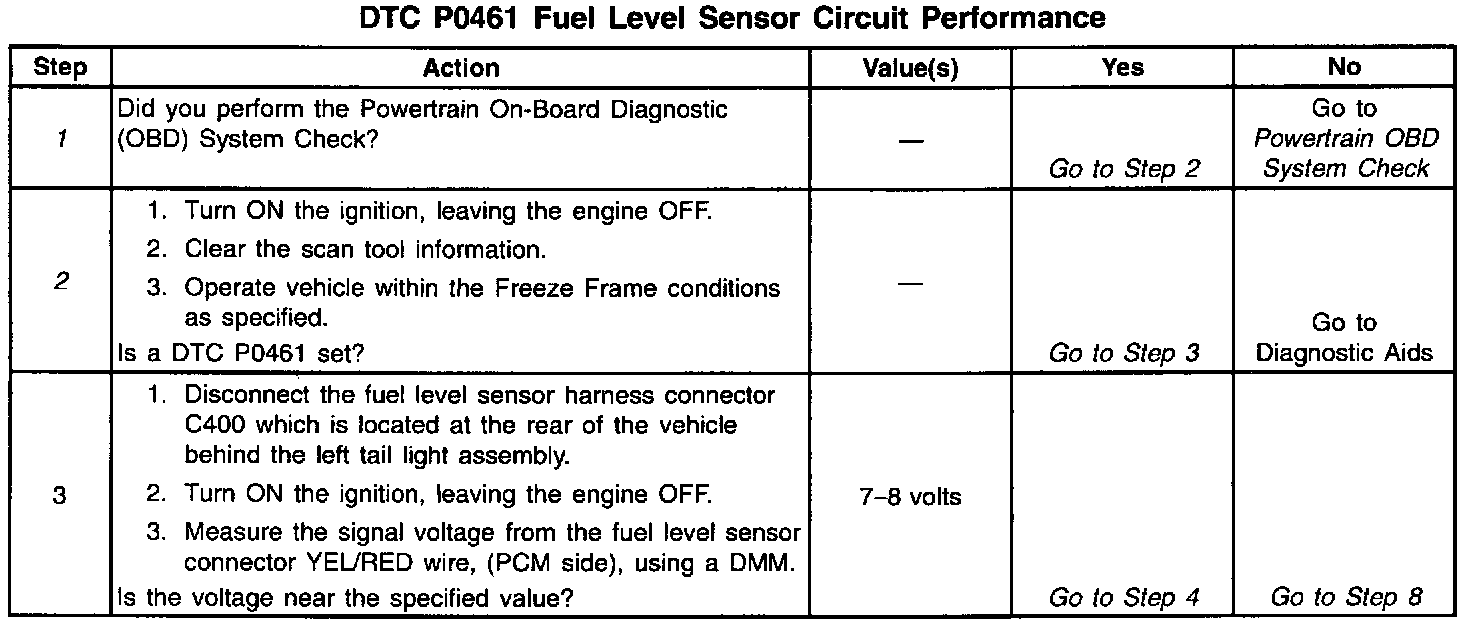

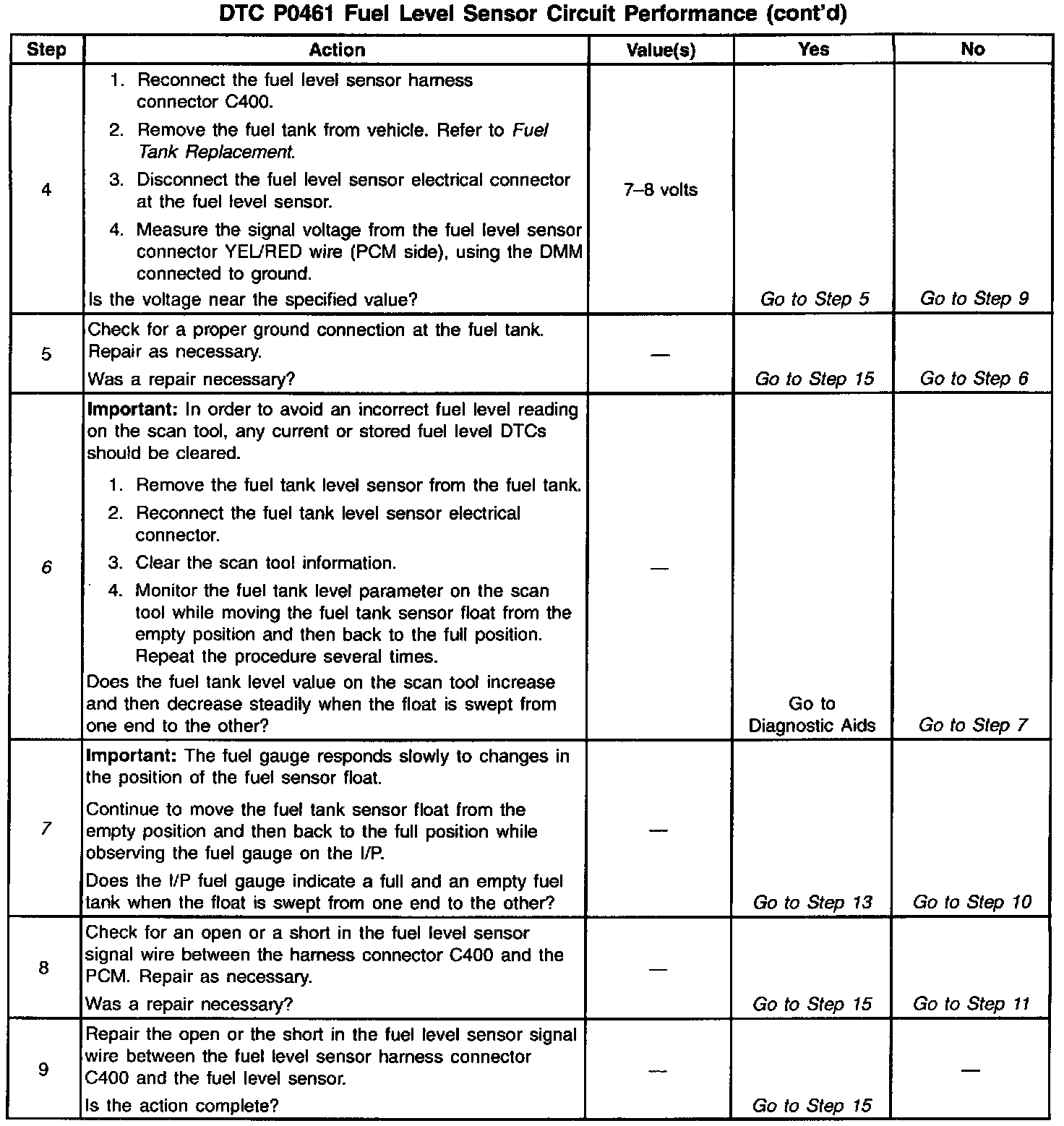

The numbers below refer to the step numbers in the Diagnostic Table.
1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the Freeze Frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.
2. This step determines if a fault is present. Review the Freeze Frame data in order to determine when the DTC set. Always record this information.
6. This step checks the circuit from the fuel level sensor to the PCM. Because the scan tool will display a default value of 100% all the time when a fuel level sensor circuit DTC is present, any current or stored fuel level sensor circuit DTCs (DTC P0463 or P0461) must be cleared before reading the fuel level parameter on the scan tool.
7. Checks for a faulty fuel level sensor.
