P0450

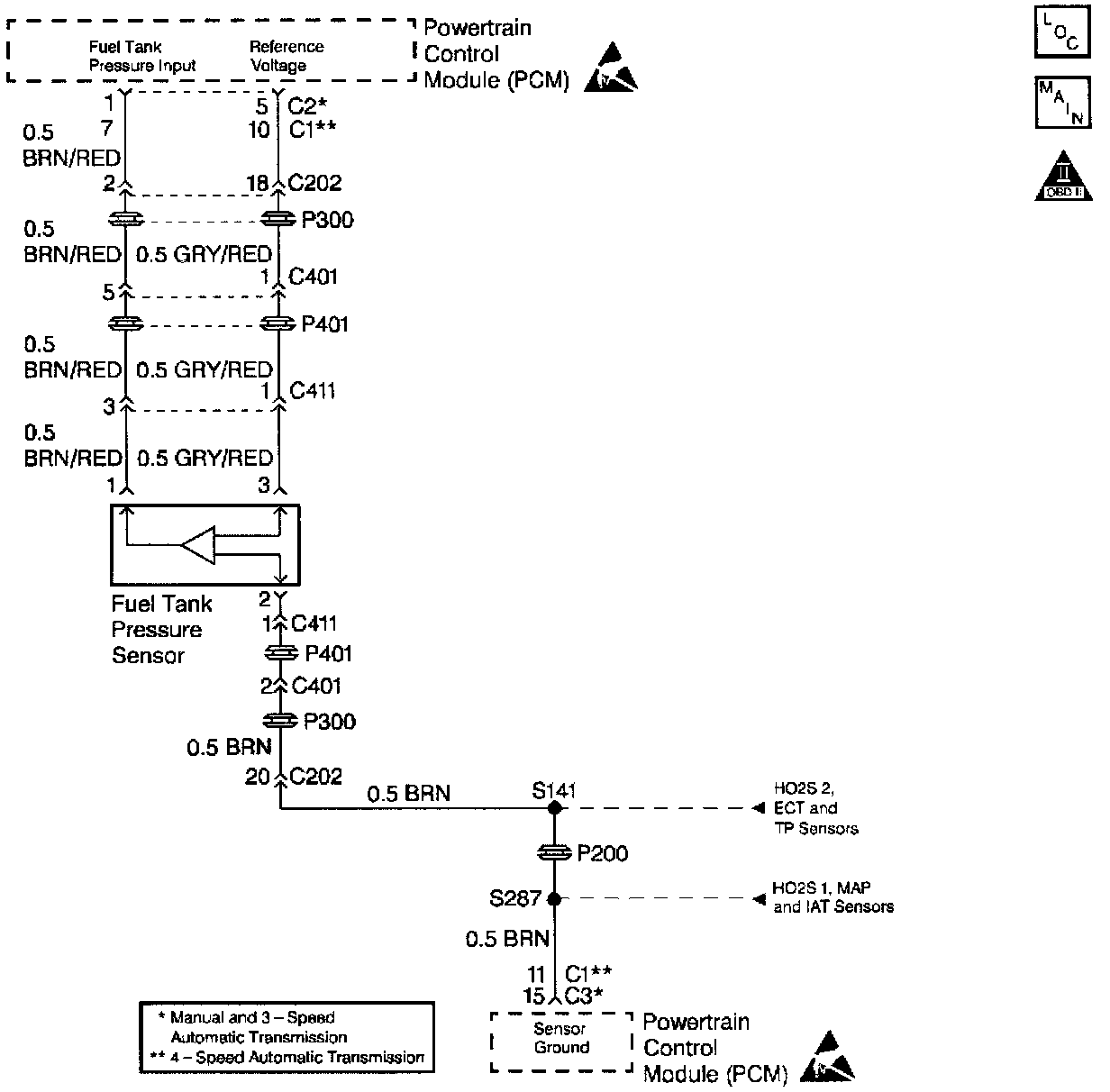

Wiring Diagram:

Circuit Description
The fuel tank pressure sensor responds to changes in fuel tank pressure or vacuum. The fuel tank pressure sensor signal voltage to the PCM varies from above 4 volts, with pressure in the fuel tank, to a minimum of 0.6 volts with a high vacuum condition in the fuel tank (vent solenoid closed).

Conditions for Setting the DTC
Input range check:
^ Voltage less than 0.5 volts.
^ Voltage greater than 4.8 volts.
^ condition present for 0.5 seconds.

Action Taken When the DTC Sets
^ The Malfunction Indicator Lamp (MIL) will illuminate after two consecutive ignition cycles in which the diagnostic runs with the fault active.
^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame buffer.

Conditions for Clearing the MIL/DTC
^ The MIL will turn off after three consecutive drive cycles without a fault present.
^ A DTC will clear after 40 consecutive warm-up cycles without a fault.
^ The DTCs can be cleared by using a scan tool or by disconnecting the PCM battery feed.

Diagnostic Aids
Check for any of the following conditions:
^ A plugged sensor air vent hole. Inspect the sensor and clean if necessary.
^ If multiple DTCs are set, it may be possible to have an open or a shorted reference voltage circuit or an open ground circuit.
^ A poor connection at the PCM. Inspect the harness connectors for backed out terminal, improper mating, broken locks, improperly formed or damaged terminals, and a poor terminal to wire connection.
^ A damaged wiring harness. Inspect the wiring harness for damage and repair as necessary.
If the DTC P0450 cannot be duplicated, the information included in the Freeze Frame data can be useful in determining vehicle operating conditions when the DTC was first set.

Test Description

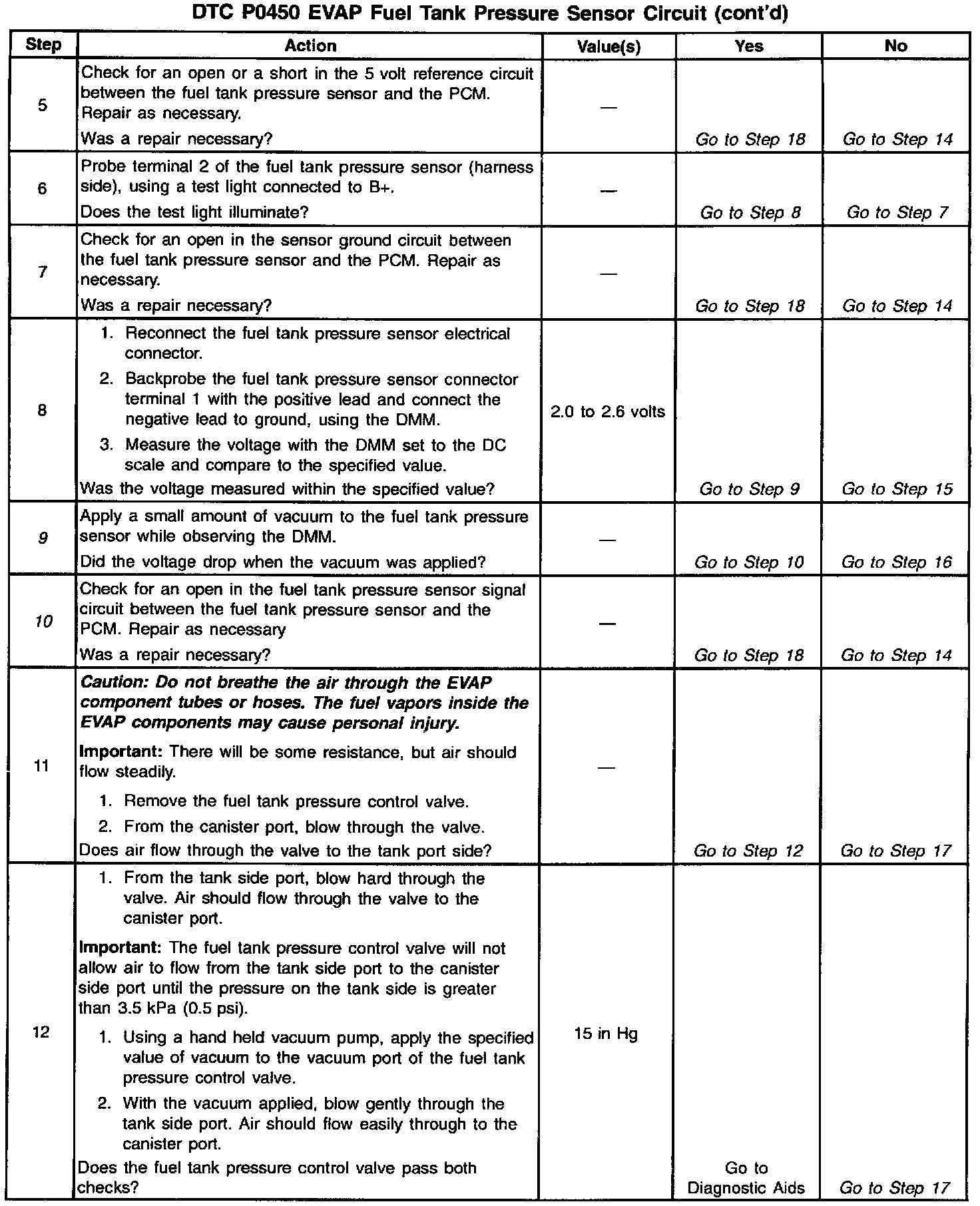

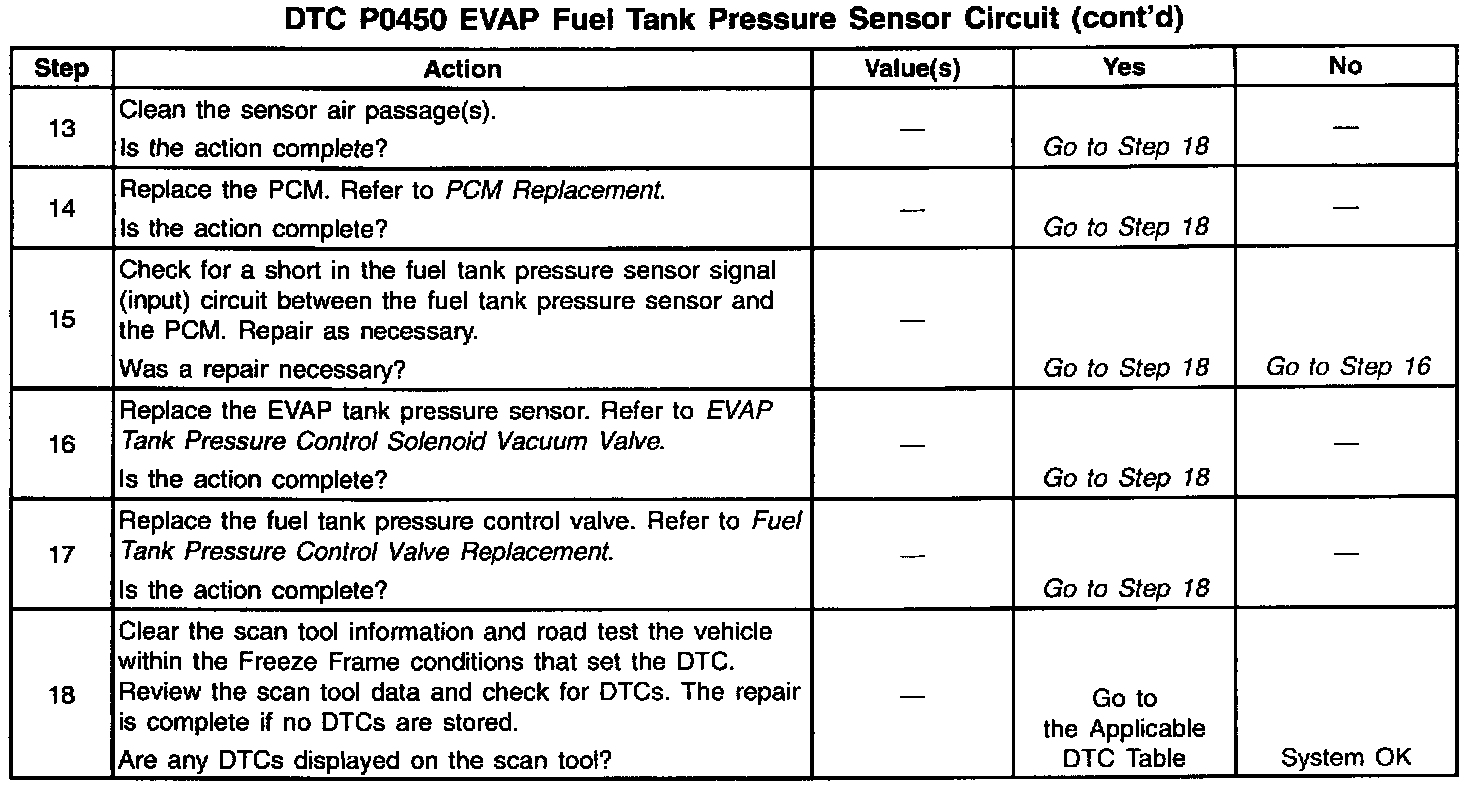

The numbers below refer to the step numbers in the Diagnostic Table.
1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the Freeze Frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.
2. Determine if a fault is present. Review the Freeze Frame data to determine the condition of when the DTC set. Always record this information.
9. Verifies that the fuel tank pressure sensor accurately reacts to EVAP system pressure changes. This also checks the sensor signal input circuit.
10. Checks the operation of the tank pressure control valve. For additional functional checks, Refer to Enhanced EVAP System Diagnosis.
