P0101

Wiring Diagram:

Circuit Description
The Mass Air Flow (MAF) sensor measures the amount of air which passes through it in a given amount of time. The Powertrain Control Module (PCM) uses this information to determine the operating requirements of the engine in order to control fuel delivery. The PCM calculates the engine[prime is fuel requirements by monitoring the current flow on the signal wire from the MAF sensor. When the volume of air entering the MAF sensor increases, the current flow seen by the PCM from the MAF sensor also increases. When the air flow decreases, the current seen by the PCM also decreases. The MAF sensor is located between the air intake tube and the air cleaner in the LH front area of the engine compartment.

Conditions for Running the DTC
^ Engine speed greater than 2000 RPM.
^ Throttle Position (TP) sensor less than 20 degrees.

Conditions for Setting the DTC
^ Maximum flow rate - Minimum flow rate less than 0.1 g/sec.
^ Condition present for at least 20 seconds.

Action Taken When the DTC Sets
^ The Malfunction Indicator Lamp (MIL) will illuminate after two consecutive ignition cycles in which the diagnostic runs with the fault active.
^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Freeze Frame buffer.

Conditions for Clearing the MIL/DTC
^ The MIL will turn off after three consecutively passing cycles without a fault present.
^ A History DTC will clear after 40 consecutive warm-up cycles without a fault.
^ DTC(s) can be cleared by using a scan tool or by disconnecting the PCM battery feed.

Diagnostic Aids
Check for any of the following conditions:
^ A skewed or stuck TP sensor. A faulty TP sensor or TP sensor circuit can cause the PCM to incorrectly calculate the predicted mass air flow value. On a scan tool observe the Throttle Angle with the throttle closed. If the Throttle Angle reading is not 0 to 13% check for the following conditions and repair as necessary:
^ The throttle plate sticking or excessive deposits on the throttle plate or throttle bore.
^ The TP sensor signal circuit shorted to voltage.
^ A poor connection or high resistance in the TP sensor ground circuit.
^ A misrouted wiring harness. Inspect the MAF sensor harness to ensure that it is not routed too close to high voltage wires such as spark plug leads.
^ A damaged wiring harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the scan tool while moving connectors and wiring harnesses related to the MAF sensor. A change in the display will indicate the location of the fault.
^ A plugged intake air duct or a dirty air filter element. A wide-open throttle acceleration from a stop should cause the mass air flow parameter displayed on a scan tool to increase from about 2 to 3.5 g/s at idle to about 100 g/s or greater at the time of the 1-2 shift. If not, check for a restriction.
If the DTC P0101 cannot be duplicated, the information included in the Freeze Frame data can be useful in determining vehicle operating conditions when the DTC was first set.
If any wiring repairs need to be made, Refer to Diagnostic Aids in Diagrams.

Test Description

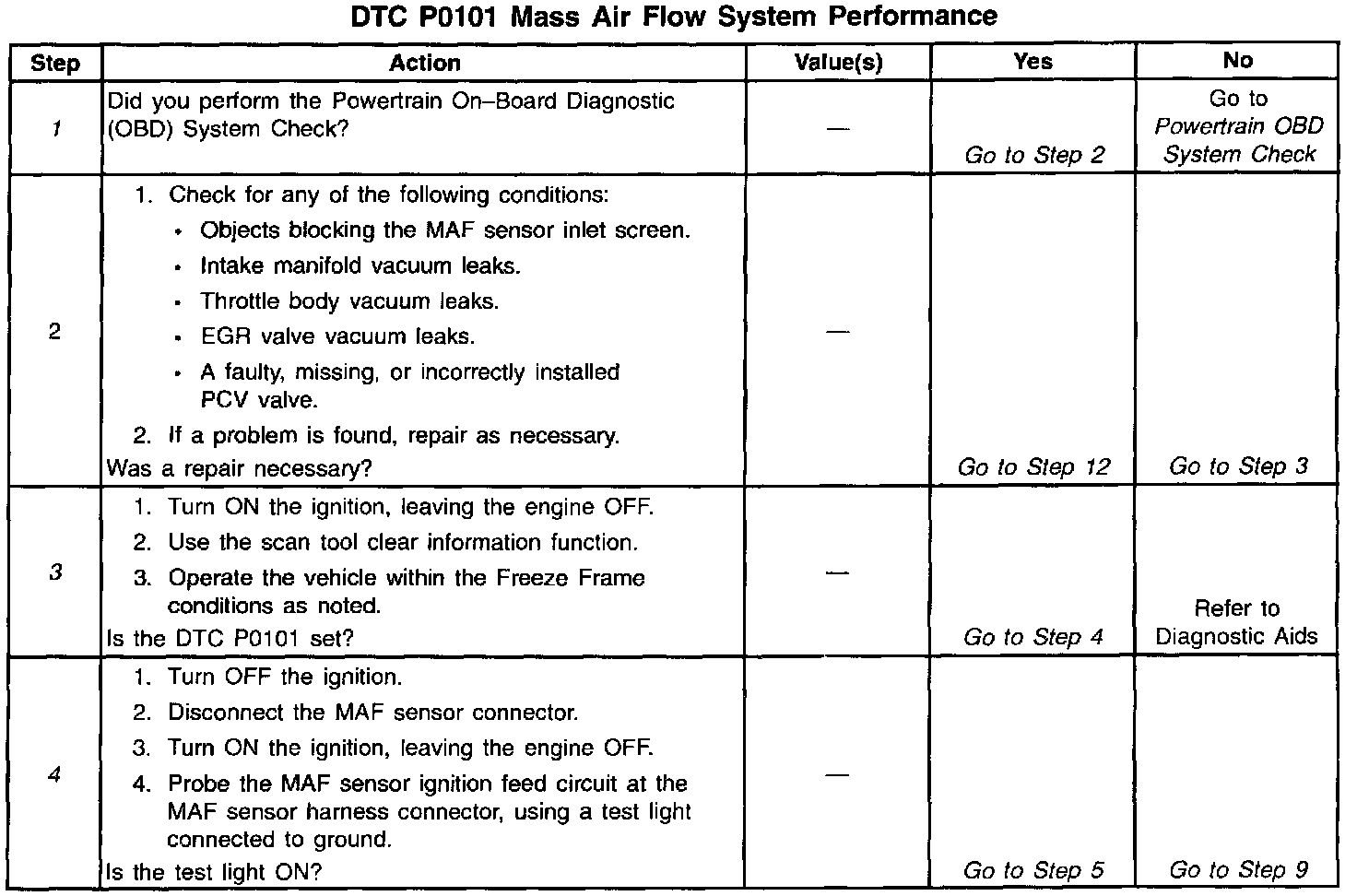

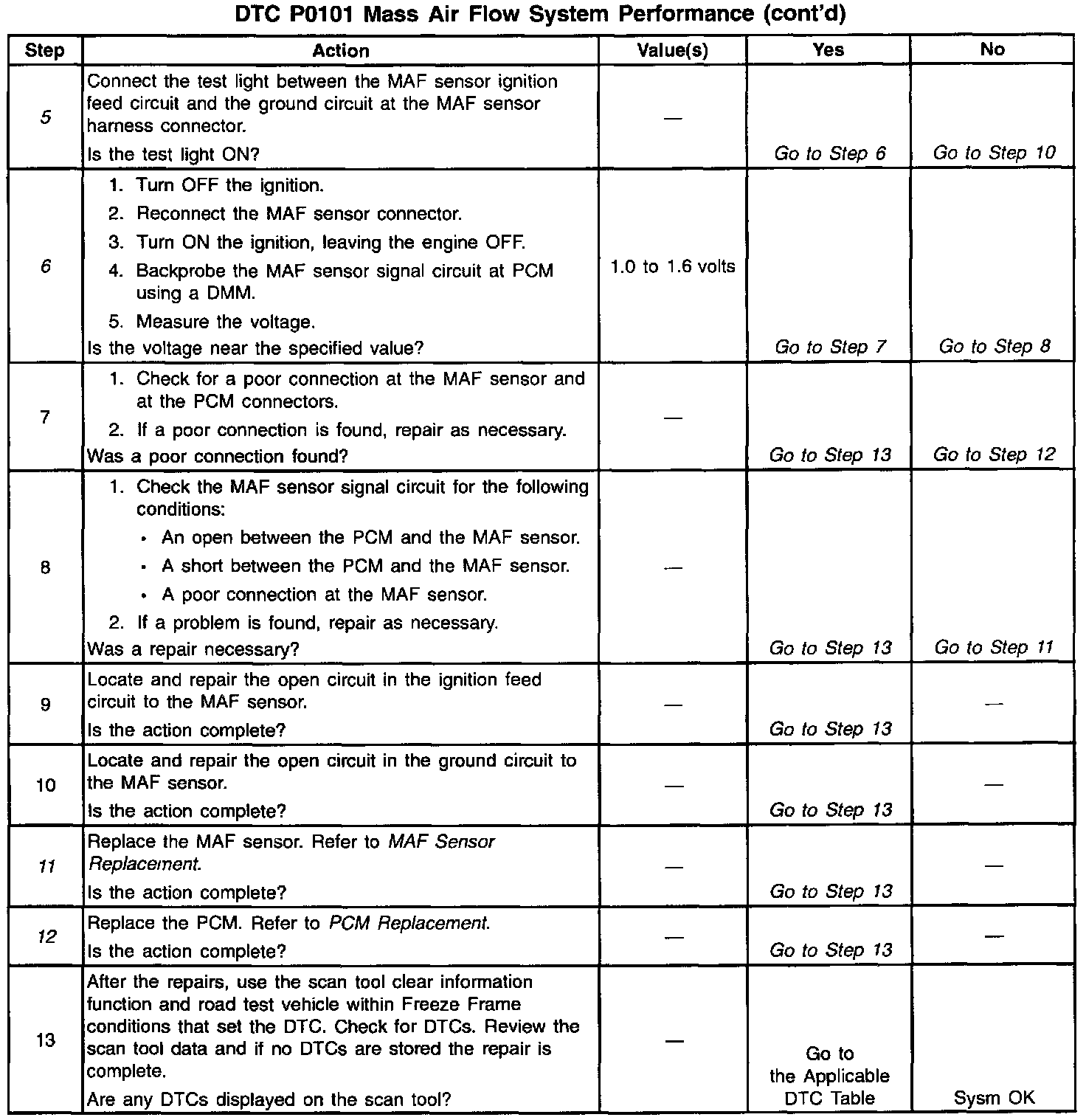

The numbers below refer to the step numbers in the Diagnostic Table.
1. The Powertrain OBD System Check prompts the technician to complete some basic checks and store the freeze frame data on the scan tool if applicable. This creates an electronic copy of the data taken when the fault occurred. The information is then stored in the scan tool for later reference.
3. This step verifies that the malfunction is present.
4. This step checks that the ignition feed voltage is reaching the MAF sensor
5. This step checks that the MAF sensor has a good ground.
6. This step verifies that the MAF signal circuit is within range.
11. Before replacing the MAF sensor check Diagnostic Aids above for any conditions that might apply.
12. Before replacing the PCM check Diagnostic Aids above for any conditions that might apply.
