C1293

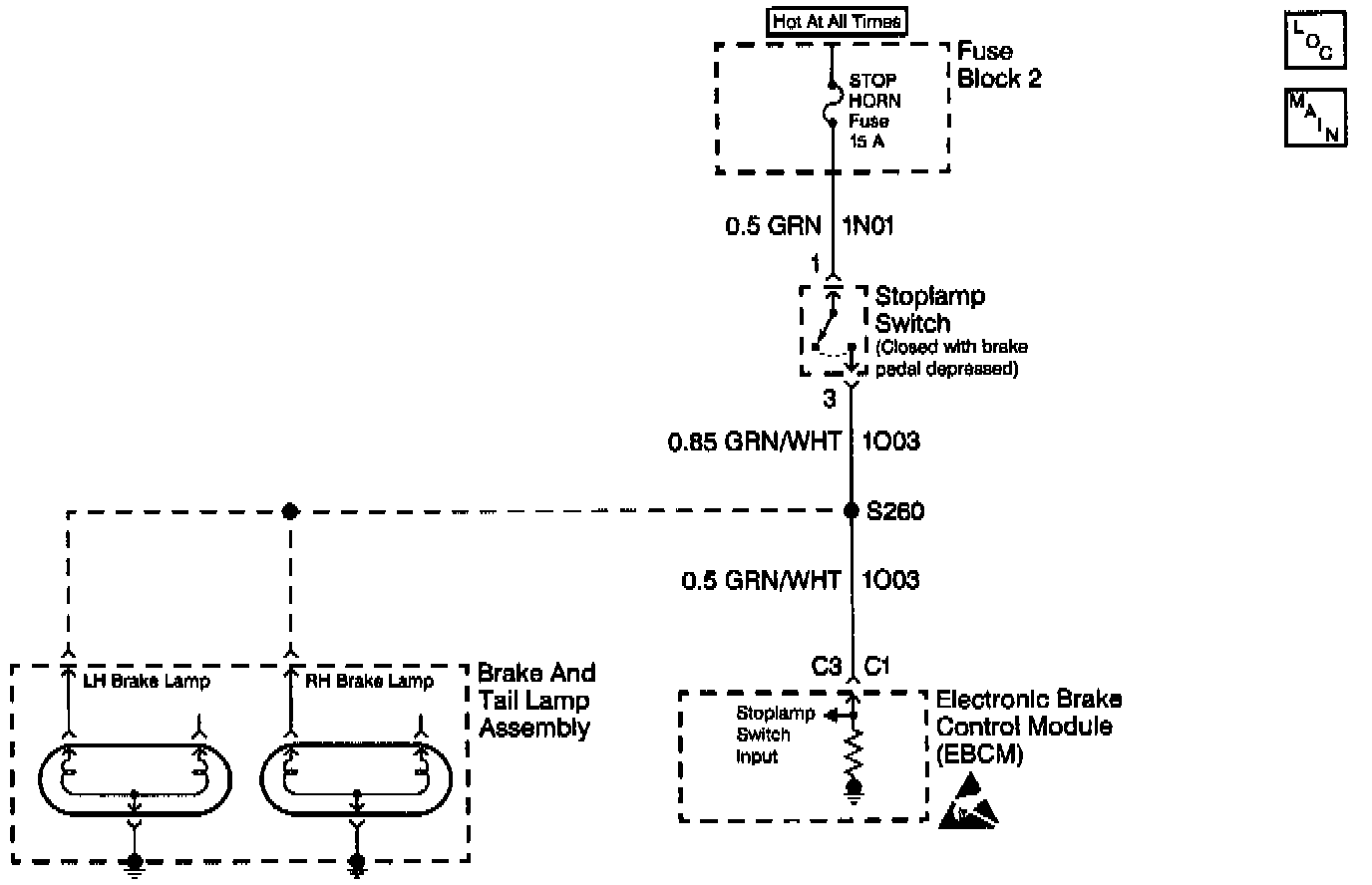

Circuit Description
If Diagnostic Trouble Code (DTC) 1291 or DTC 1292 failed during the last ignition cycle, DTC C1293 becomes a current failure during the next ignition cycle. DTC C1293 failure keeps Antilock Brake System (ABS)/ETS disabled until identifying a Brake Switch ON state. When identifying a change during an ignition cycle in which DTC C1293 is a current malfunction, DTC C1291 or DTC 1292 will clear itself at the end of the current ignition cycle. ABS will then enable itself at the start of the next ignition cycle. DTC C1293 alone indicates DOT C1291 or DTC C1292 failed previously, but is intermittent, or has been corrected.

Conditions for Setting the DTC
DTC C1293 alone indicates DTC C1291 or C1292 occurred previously, but is intermittent, or has been corrected.

Action Taken When the DTC Sets
- A malfunction DTC stores.
- ABS is disabled until the Electronic Brake Control Module (EBCM) receives a valid input from the brake switch.
- The ABS warning indicator turns ON.

Conditions for Clearing the DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- When a change is seen during an ignition cycle in which DTC C1293 is a current malfunction, DTC C1291 or C1292 will clear itself at the end of the current ignition cycle and ABS will enable itself at the start of the next ignition cycle.

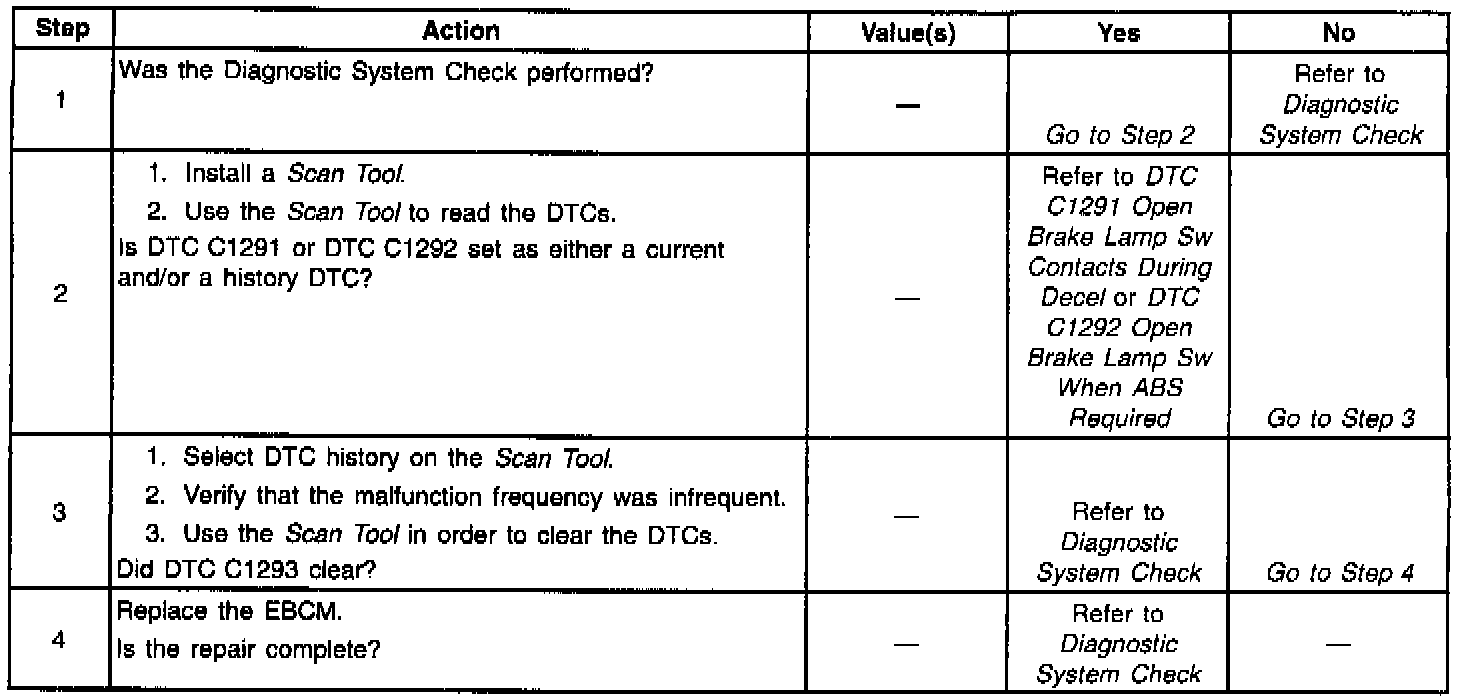

Diagnostic Aids
Use the Data List of the Scan Tool to verify proper brake switch operation. The Data List should display the brake switch as the brake is applied within 25 mm (1.0 in) of brake pedal travel.
