C1237

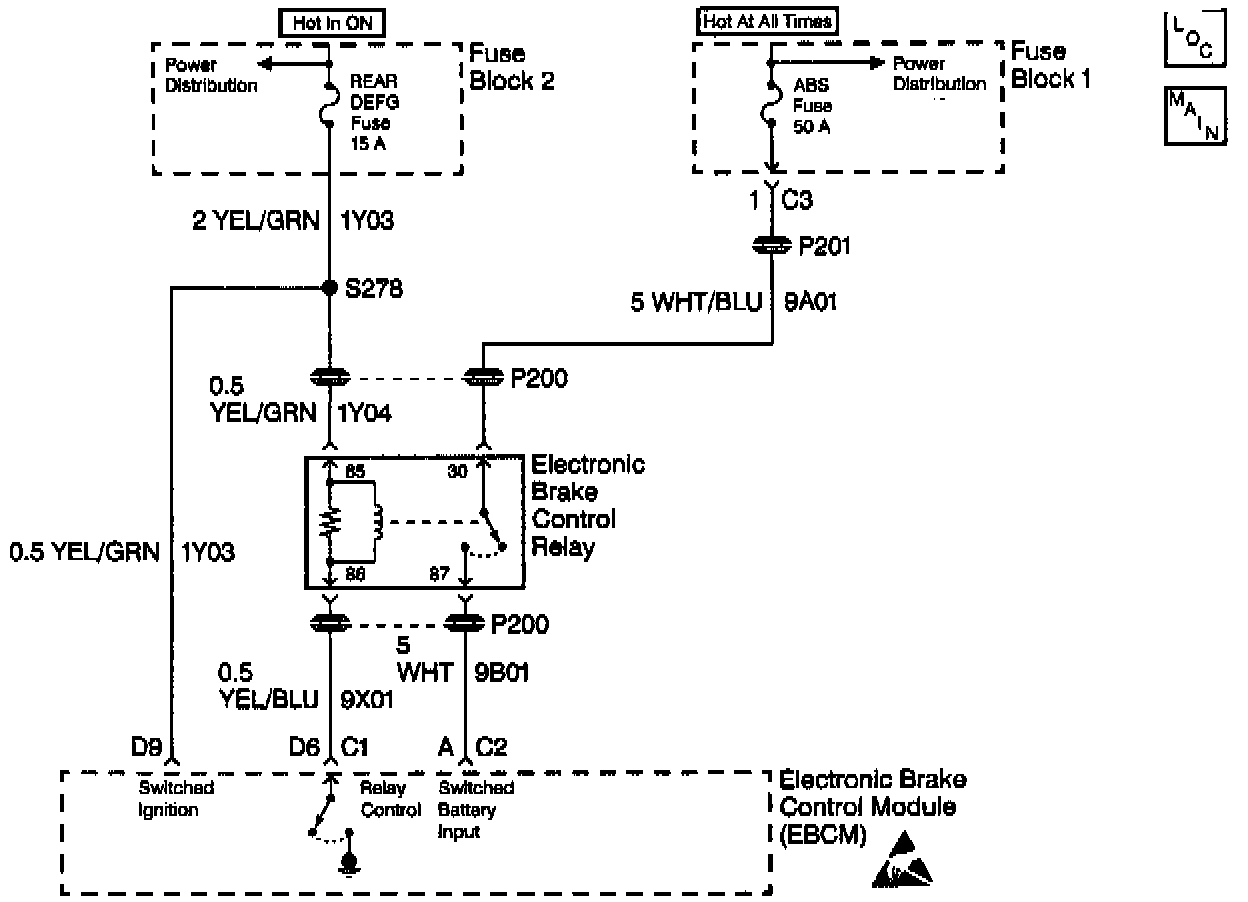

Circuit Description
Diagnostic Trouble Code (DTC) C1237 detects high vehicle voltage levels prior to any required motor movement (initialization or ABS). Damage to the system may occur if excessive voltage exists.

Conditions for Setting the DTC
- DTC C1237 can set only if the vehicle's speed is greater than 5 km/in (3 mph).
- A malfunction exists if the switched battery voltage is greater than 17 volts.

Action Taken When the DTC Sets
- A malfunction DTC stores. The Antilock Brake System (ABS) disables.
- The ABS warning indicator turns ON.

Conditions for Clearing the DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
100 drive cycles pass with no DTCs detected. A drive cycle consists of starting the vehicle, driving the vehicle over 16 km/h
(10 mph), stopping and then turning the ignition off.

Diagnostic Aids
Use the enhanced diagnostic function of the Scan Tool in order to measure the frequency of the malfunction.
Ensure the vehicle's charging system is working properly.

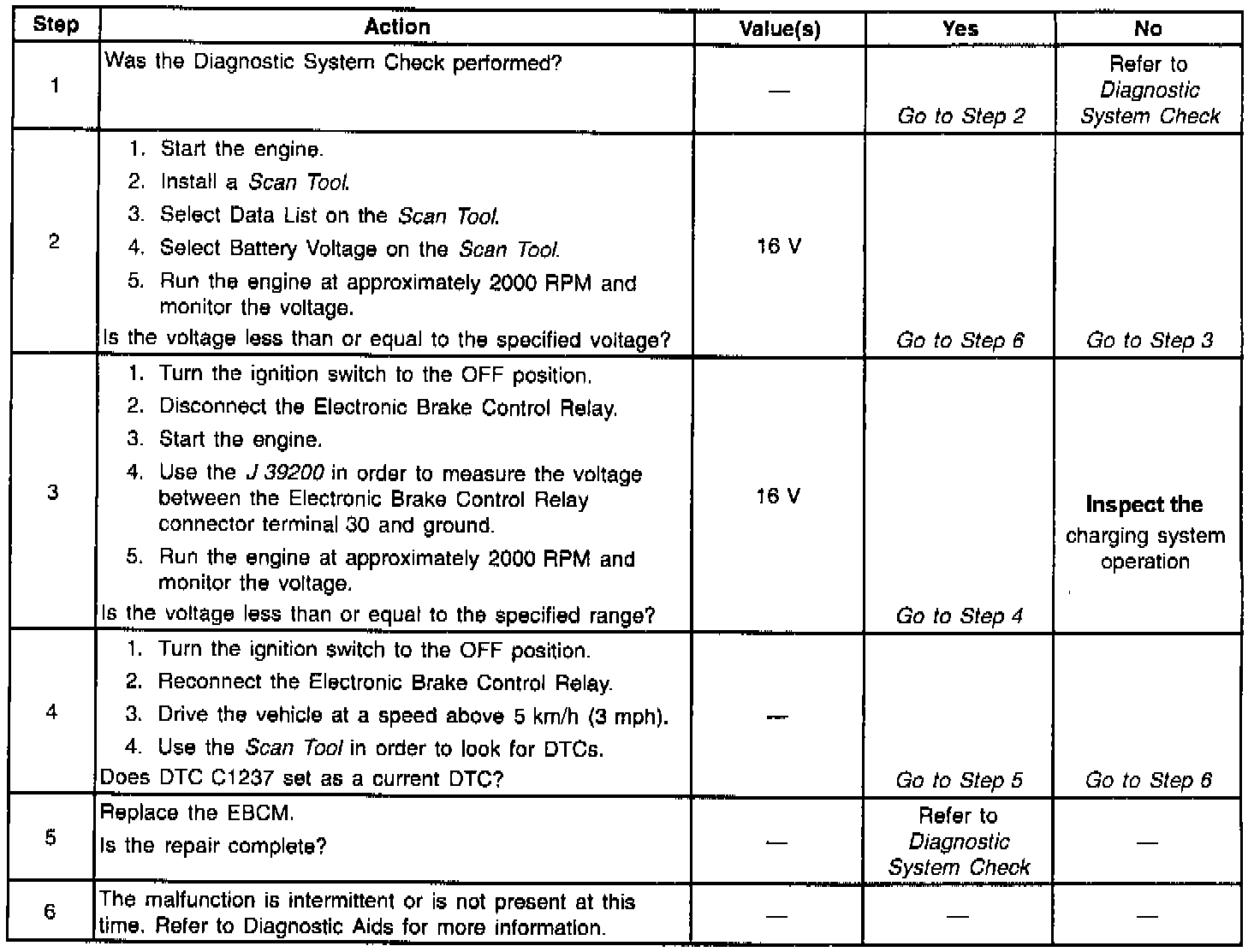

IMPORTANT: Zero the J 39200 test leads before making any resistance measurements. Refer to the J 39200 user's manual.
