Case: Service and Repair

TRANSFER CASE VENT HOSE REPLACEMENT

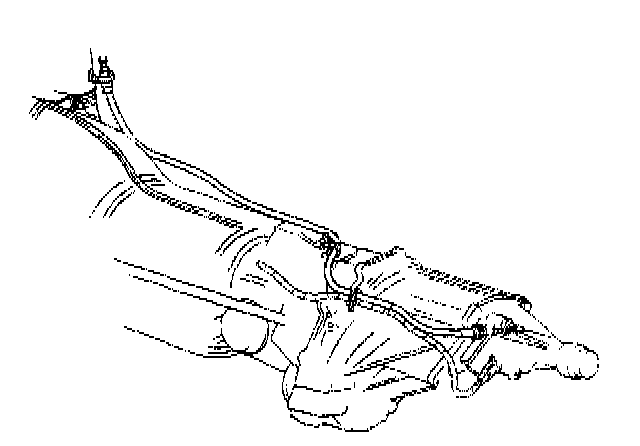

REMOVAL PROCEDURE





1. Remove the clip securing the vent line to the transfer case vent.
2. Remove the three straps securing the vent line to the transfer case.

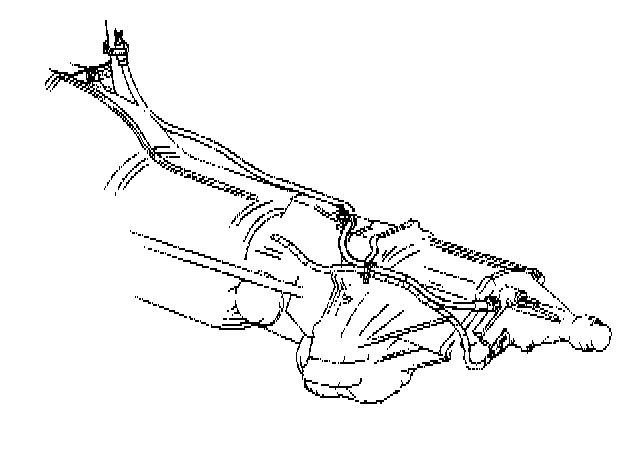

INSTALLATION PROCEDURE





1. Secure the vent line to the transfer case vent with the clip.
2. Install three new straps securing the vent line to the transfer case.
