Upper Control Arm Replacement
REMOVAL PROCEDURE^ Tools Required:
- J 2147418 Nut
- J 2147419 Bolt
- J 33793 Control Arm Bushing Service Set
- J 36607 Ball Joint Separator
1. Raise the vehicle. Support the vehicle with safety stands.
2. Remove the tire and the wheel.
3. Support the knuckle.
4. Remove the cotter pin.
5. Remove the nut.
6. Position the J 36607 to the knuckle.
7. Back the nut off until the upper ball joint separates.

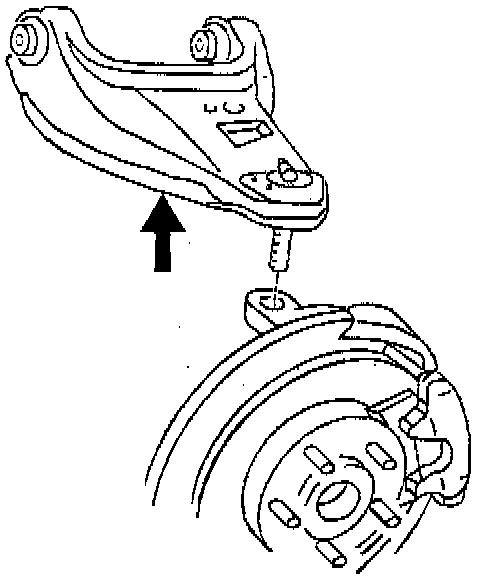

8. Remove the upper control arm from the knuckle.
9. Remove the following parts:
9.1. The nuts
9.2. The cams
9.3. The bolts
9.4. The cams
9.5. The upper control arm
9.6. The nut
9.7. The bumper from the upper control arm
10. Remove the bushings. Use the tools shown.
INSTALLATION PROCEDURE
^ Tools Required:
- J 2147418 Nut
- J 147419 Bolt
- J 33793 Control Arm Bushing Service Set

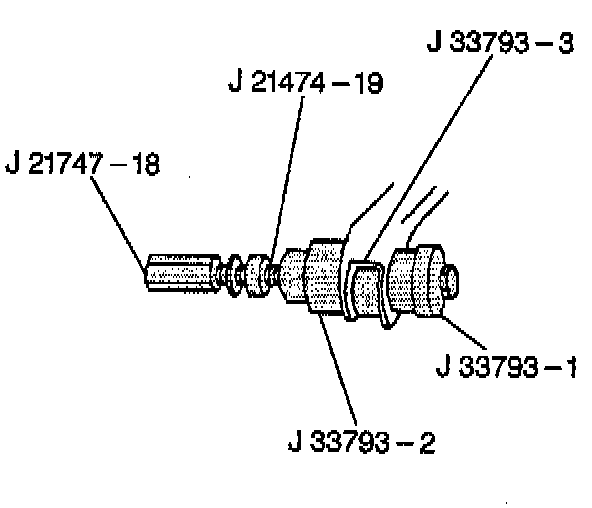

1. Install the bushings to the upper control arm. Use the tools shown.

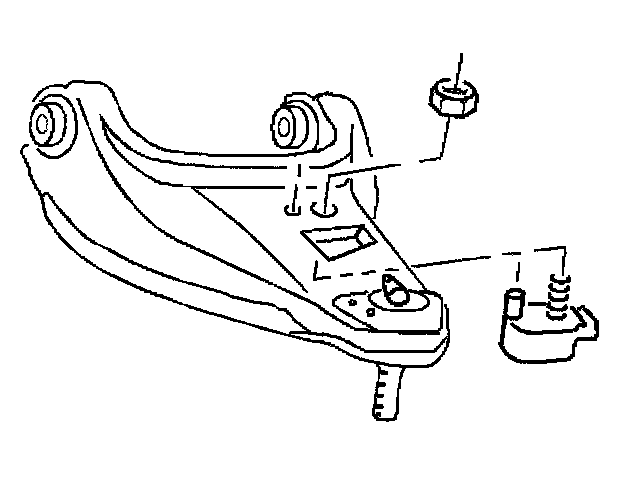

2. Install the bumper to the upper control arm.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
3. Install the nut to the bumper.
Tighten the nut to 27 Nm (20 ft. lbs.).

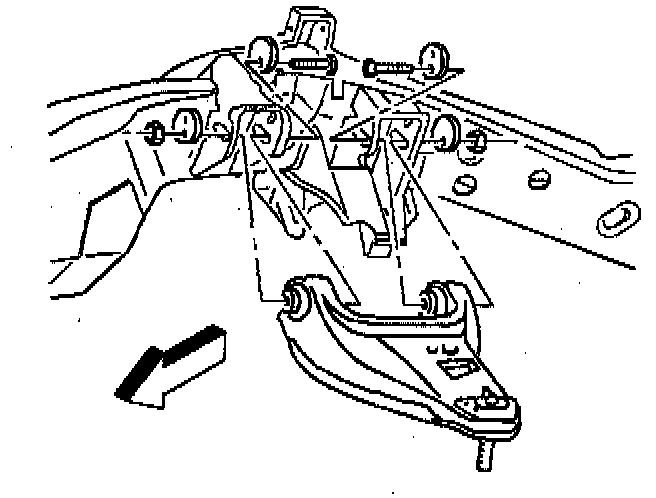

4. Install the upper control arm to the frame.
5. Install the cams to the bolts.
Important: The bolt heads must be opposed inside the bracket.
6. Install the bolts to the upper control arm.
7. Install the cams.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
8. Install the nuts.
^ Tighten the nuts with the front suspension loaded.
^ Tighten the front nut to 115 Nm (85 ft. lbs.).

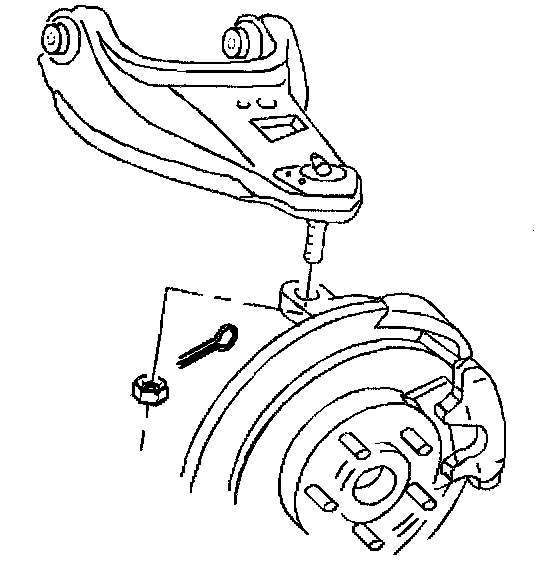

9. Install the upper ball joint stud to the knuckle.
NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
10. Install the nut to the upper ball joint stud.
Tighten
^ Tighten the nut in order to align the cotter pin. Do not tighten the nut more than 1/6 turn.
^ Tighten the nut to 83 Nm (61 ft. lbs.).
11. Install a new cotter pin.
^ Bend the pin ends against the nut flats.
^ Remove the support from the knuckle.
12. Install the tire and the wheel.
13. Lower the vehicle.
