Lower Control Arm Replacement

REMOVAL PROCEDURE
^ Tools Required:
- J 2147401 Control Arm Bushing Service Set
- J 33793 Control Arm Bushing Service Set

1. Raise the vehicle. Support the vehicle with safety stands.
2. Remove the tire and the wheel.
3. Unload the torsion bar.





4. Remove the drive axle nut. This allows more clearance for removal of the lower control arm.
5. Remove the stabilizer shaft.
6. Remove the shock absorber.





7. Remove the nuts and bolts securing the lower control arm to the crossmember and the frame bracket.
8. Remove the ball joint stud from the steering knuckle.





9. Remove the lower control arm.

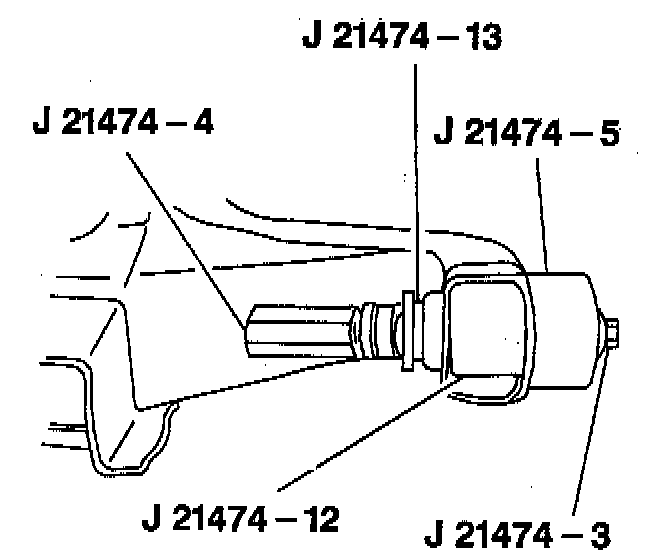

10. Remove the front bushing. Use the tools shown.

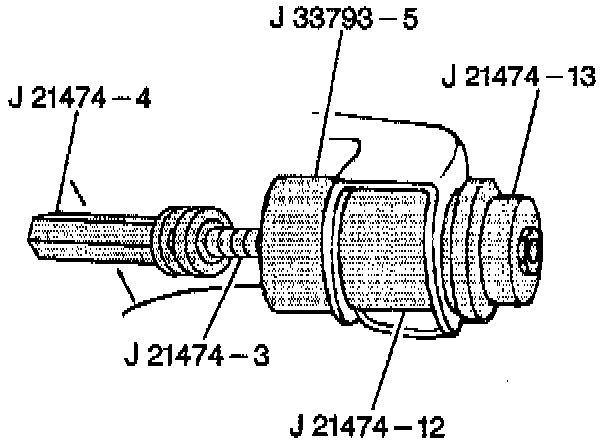

11. Remove the rear bushing. Use the tools shown.

INSTALLATION PROCEDURE
^ Tools Required:
- J 2147401 Control Arm Bushing Service Set
- J 33793 Control Arm Bushing Service Set

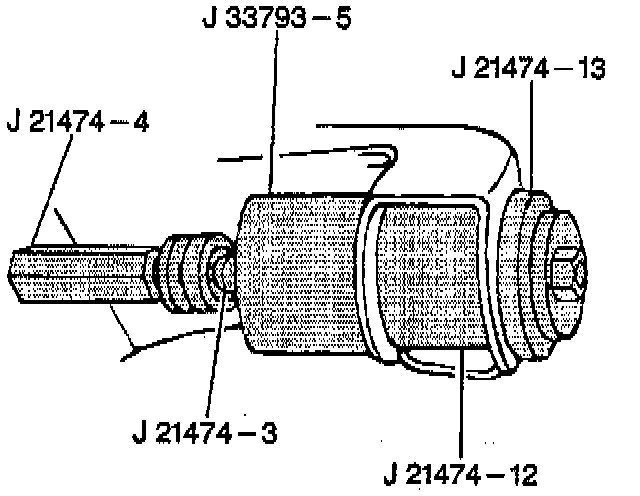

1. Install the front bushing. Use the tools shown.





2. Install the rear bushing. Use the tools shown.

Important: Install the front leg of the lower control arm into the crossmember before installing the rear leg into the frame bracket.

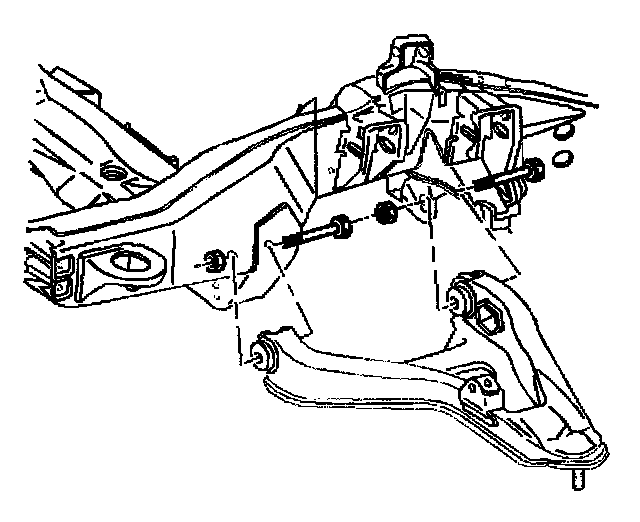

3. Install the lower control arm to the crossmember and to the frame bracket.





4. Install the bolts in the direction shown.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

5. Install the nuts.
^ Tighten the nuts with the lower control arm at the proper Z trim height.
^ Tighten the nuts and the bolts with the front suspension loaded.
^ Tighten the front nut and the rear nut to 110 Nm (81 ft. lbs.).

6. Install the ball joint stud into the steering knuckle.
7. Install the stud nut and a new cotter pin.
^ Tighten the stud nut to 108 Nm (79 ft. lbs.).

8. Install the shock absorber.

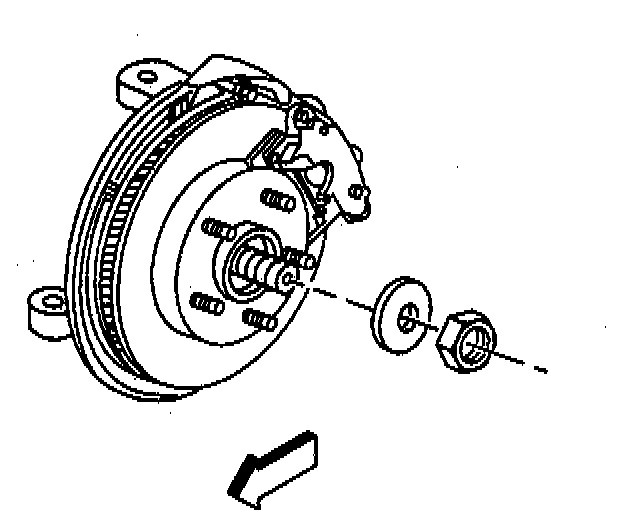

9. Install the drive axle nut.
^ Tighten the nut to 140 Nm (103 ft. lbs.).

10. Install the stabilizer shaft.
11. Adjust the torsion bar.
12. Install the tire and the wheel.
13. Lower the vehicle.
