Chevy Truck
>>
1998
>>
S10/T10 P/U 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

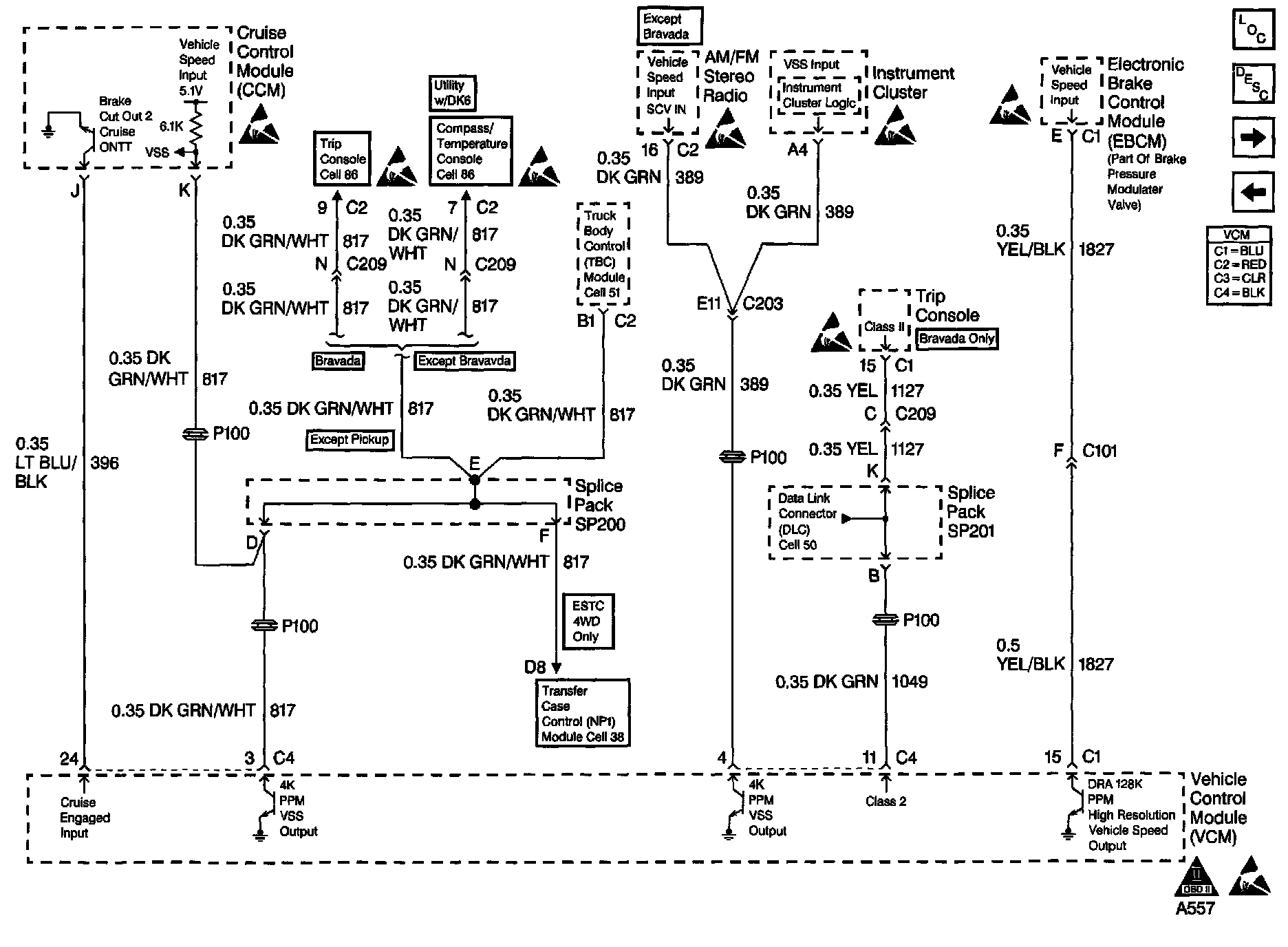

VSS Outputs and Trip Console Link
VSS Outputs and Trip Console Link
