Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>
Selectable 4WD
>>

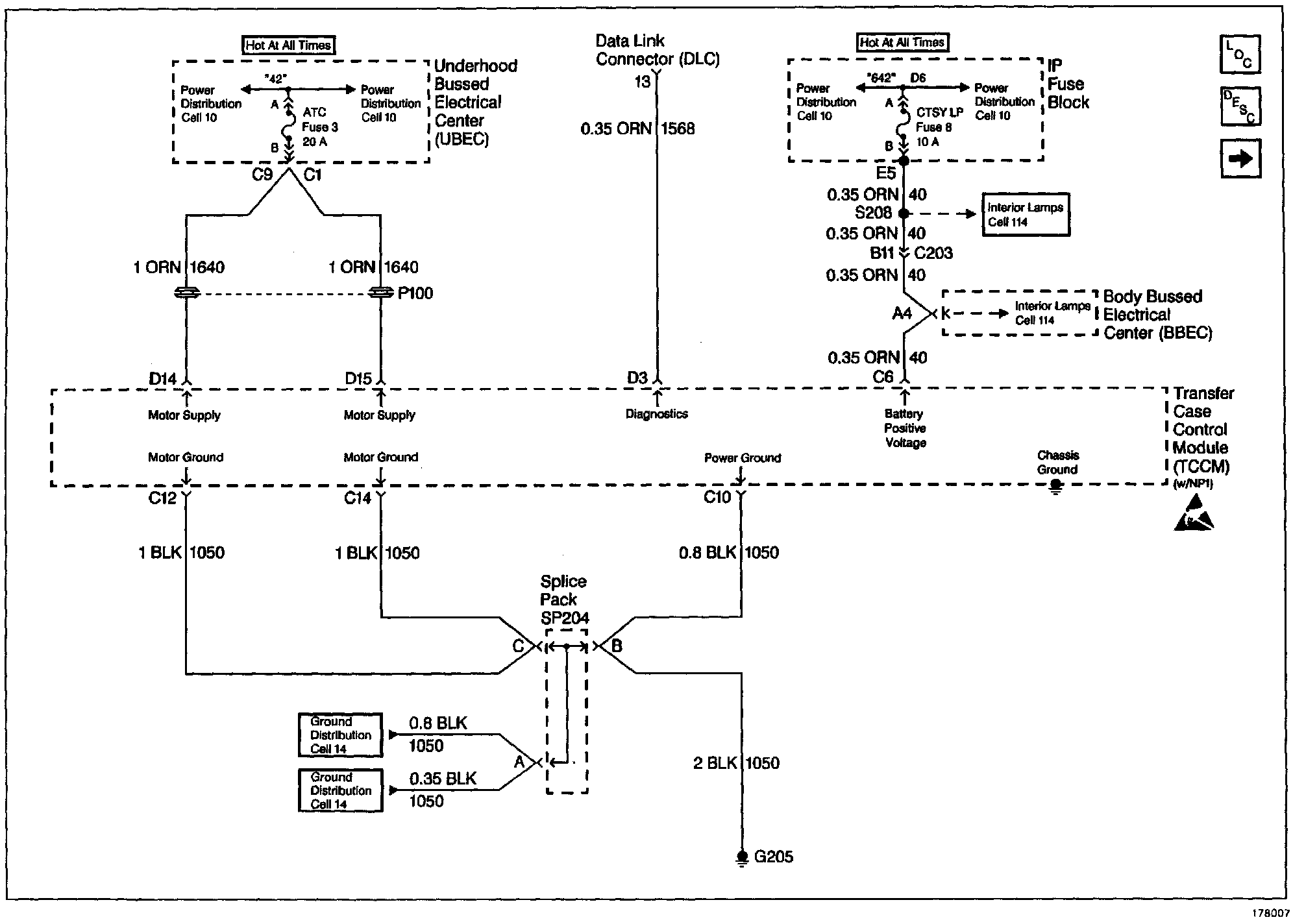

Power, Ground & Data Link
Power, Ground & Data Link
Wiring Diagram:
