Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Shift Interlock, A/T
>>
Column Ignition Lock Schematics
Column Ignition Lock Schematics

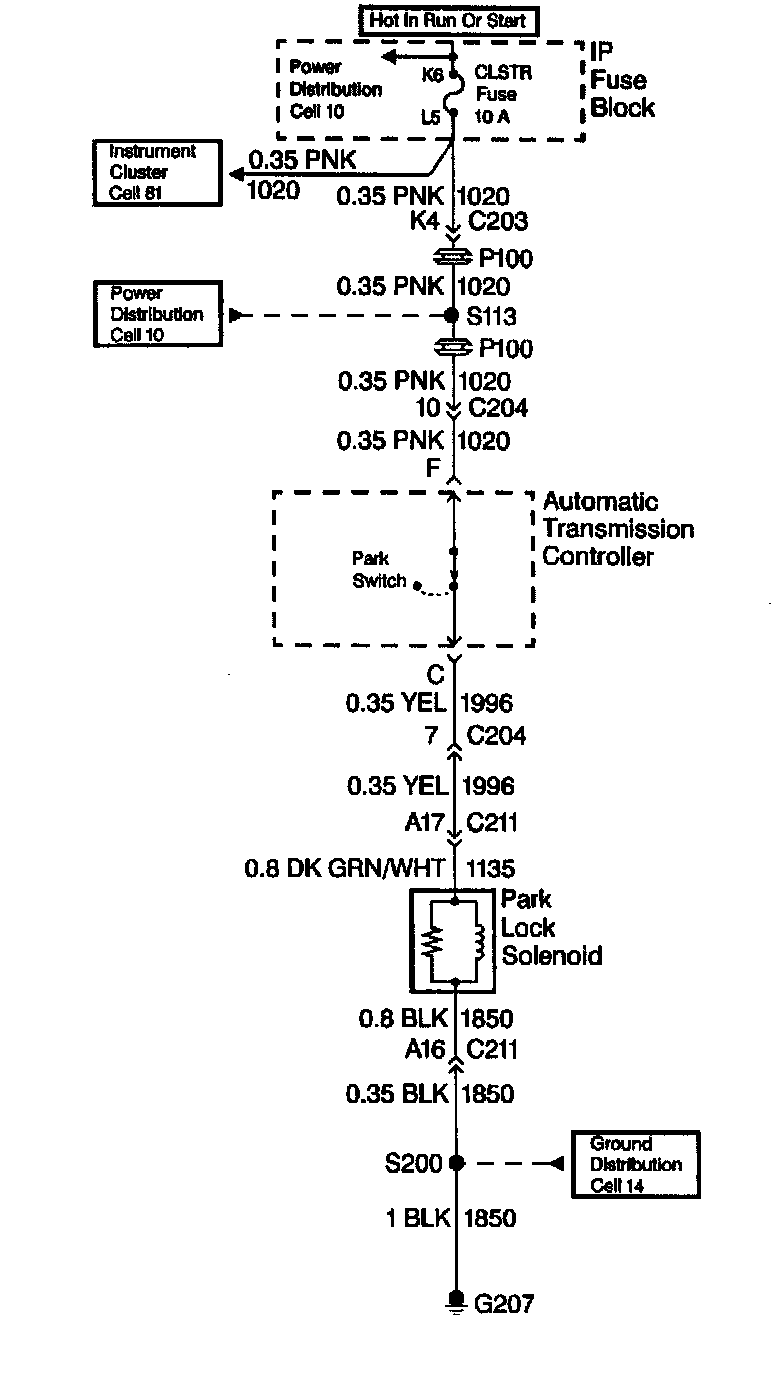

Column Ignition Lock Schematics:
