Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

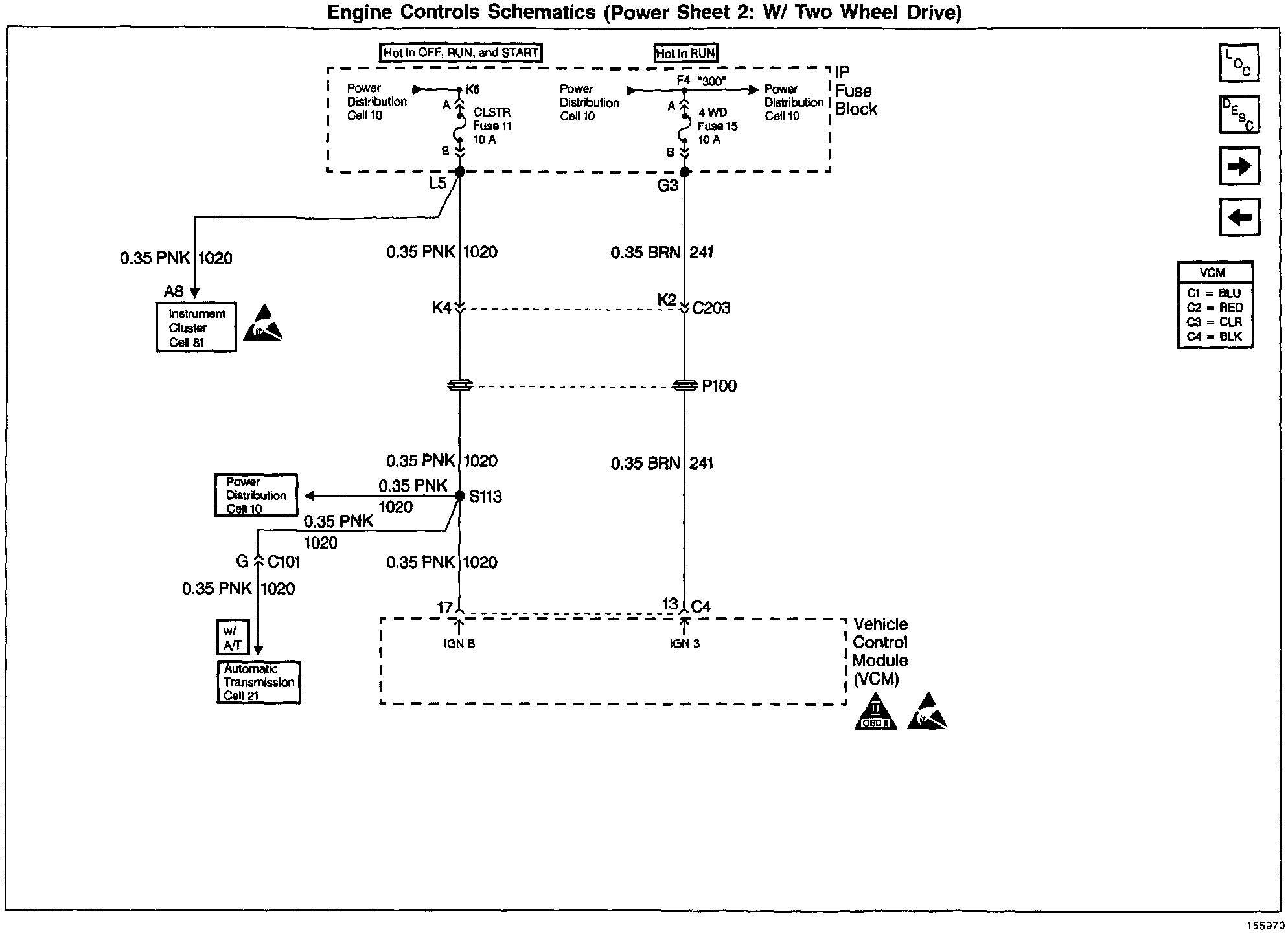

Power Sheet 2: W/Two Wheel Drive
Power Sheet 2: W/Two Wheel Drive
Wiring Diagram:
