On-Vehicle Service

Remove or Disconnect

^ Tools Required:
- J 25034-B Pulley Remover

Place a drain pan below the pump.
1. Hoses. Cap the hoses.
2. Unload the tensioner assembly. Refer to Engine.
3. Belt.





4. Pulley.

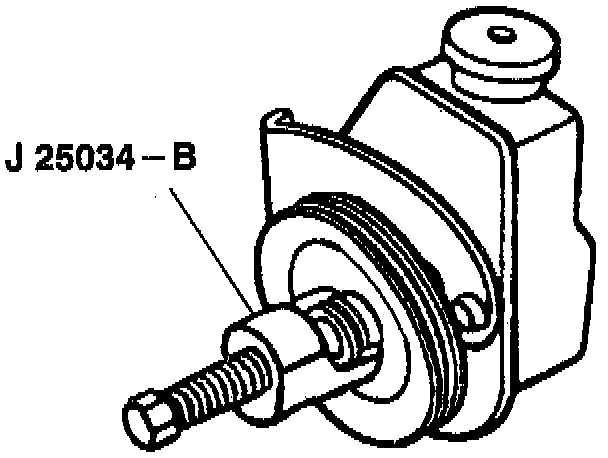

- Install J 25034-B. Be sure the pilot bolt bottoms in the pump shaft by turning the nut to the top of the pilot bolt. Hold the pilot bolt. Turn the nut counterclockwise.

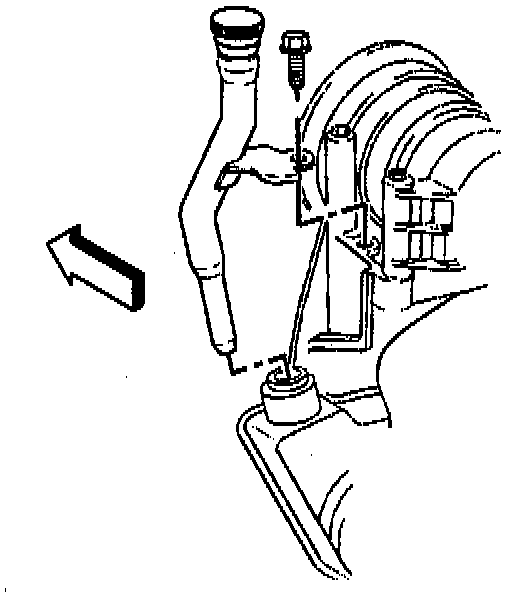

5. Filler neck tube.

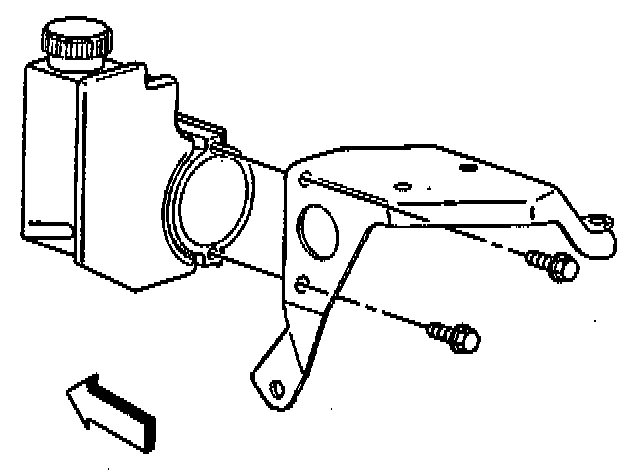

6. Rear brace nut from engine stud.

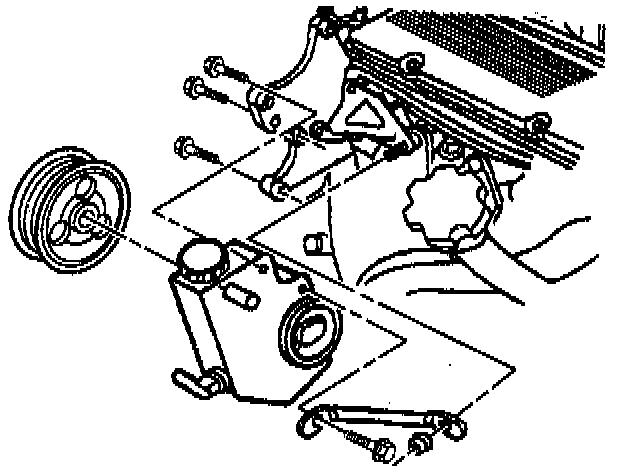

7. Rear brace.





8. Front mounting bolts.
9. Power steering pump.

Install or Connect

^ Tools Required:
- J 25033-B Pulley Installer

1. Power steering pump.
2. Front mounting bolts.
Tighten
- Bolts to 30 Nm (22 ft. lbs.).
3. Rear brace.
4. Nut and bolt.
Tighten
- Nut and bolt to 30 Nm (22 ft. lbs.).
5. Filler neck tube.

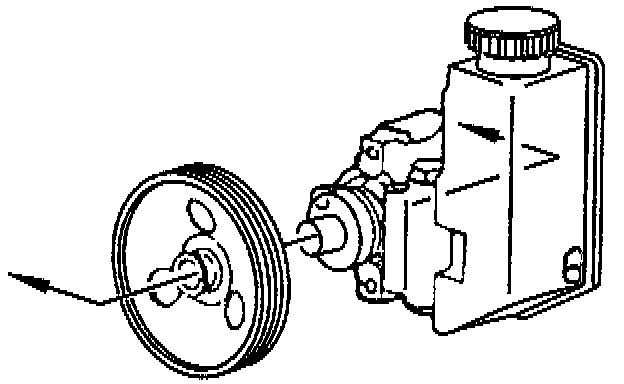

6. Pulley.
a. Place pulley on the end of the pump shaft.
b. Install J 25033-B. Make sure the pilot bolt bottoms in the shaft by turning the nut to the top of the pilot bolt.
c. Hold the pilot bolt.
d. Turn the nut clockwise.

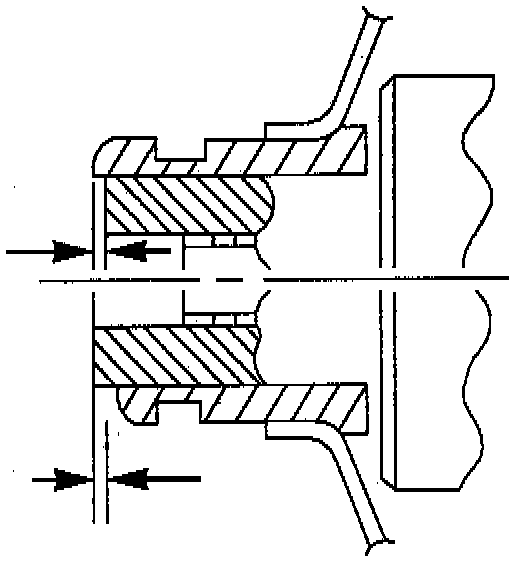

e. Install pulley flush +/- 0.25 mm (0.010 inch) with the end of the power steering pump shaft.
7. Belt. Refer to Engine.
8. Load the tensioner assembly. Refer to Engine.
9. Hoses.
10. Fill and bleed the system. Refer to "Bleeding The Power Steering System."

Inspect
- Hoses for clearance.
