Base

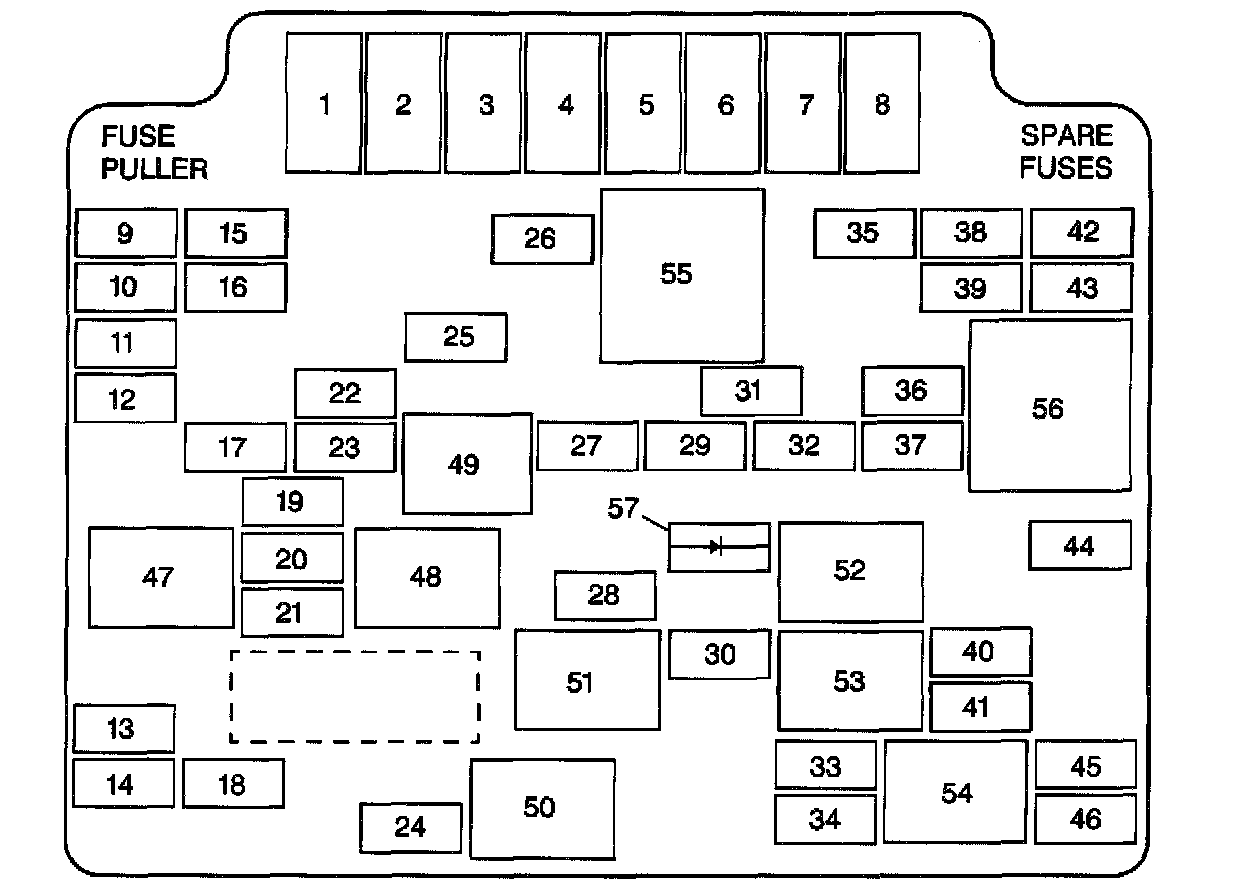

Underhood Bussed Electrical Center (UBEC) Details (Base Pickup):

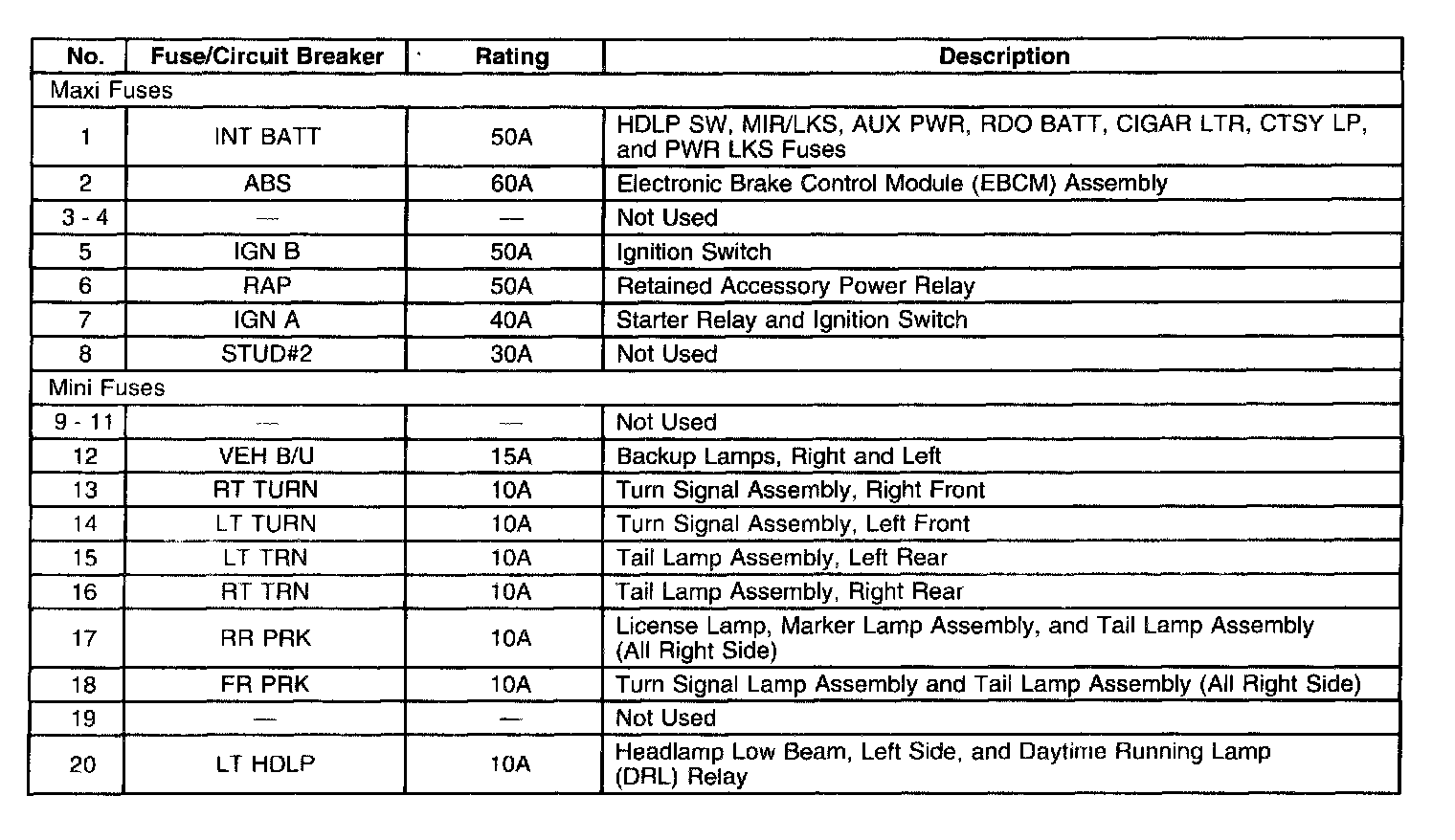

Underhood Bussed Electrical Center (UBEC) Details (Uplevel Pickup) (Part 1 Of 2):

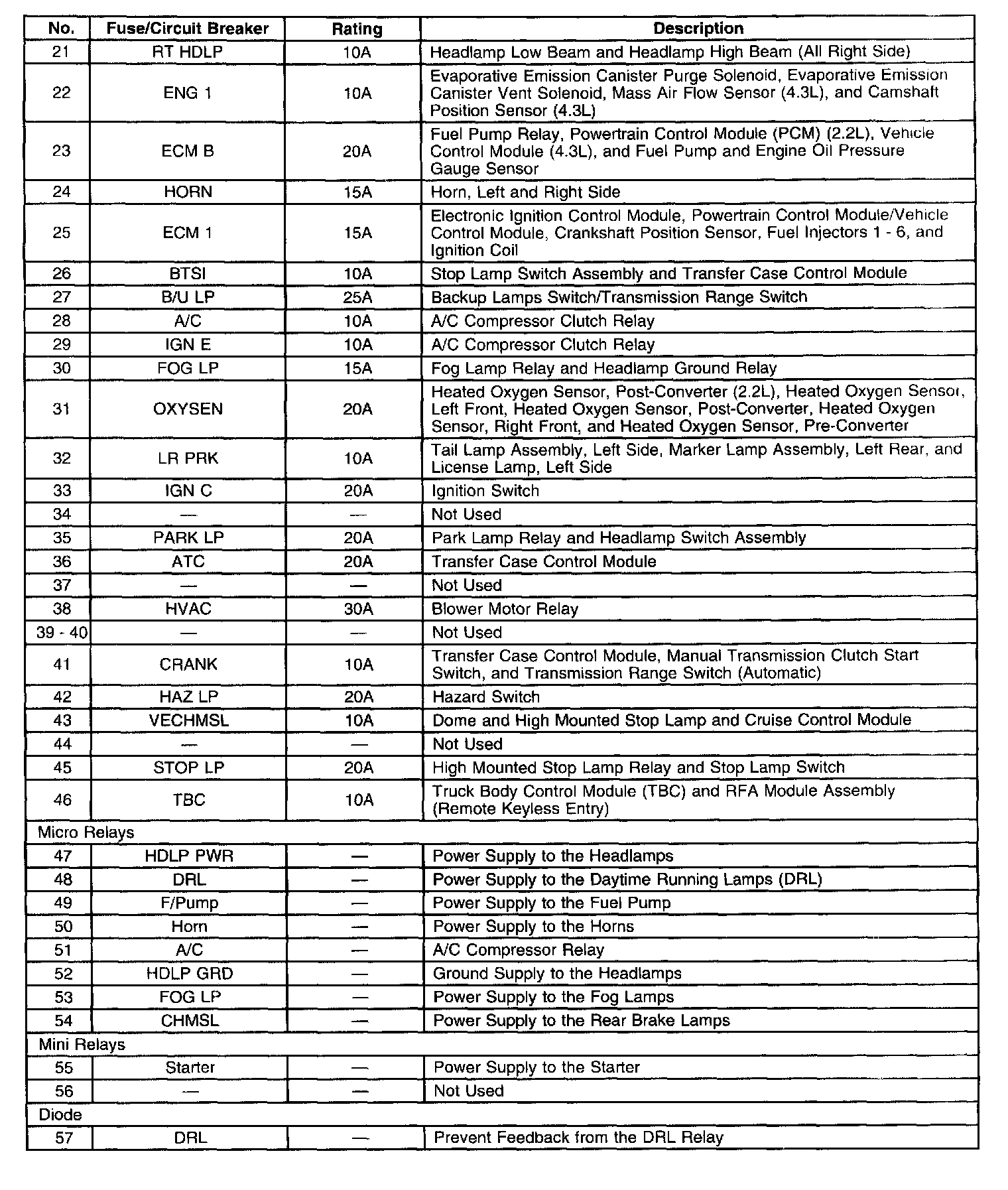

Underhood Bussed Electrical Center (UBEC) Details (Uplevel Pickup) (Part 2 Of 2):
