Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Navigational Aids
>>
Power Distribution Schematics
>>
V - AF
>>
AF
>>
From
From

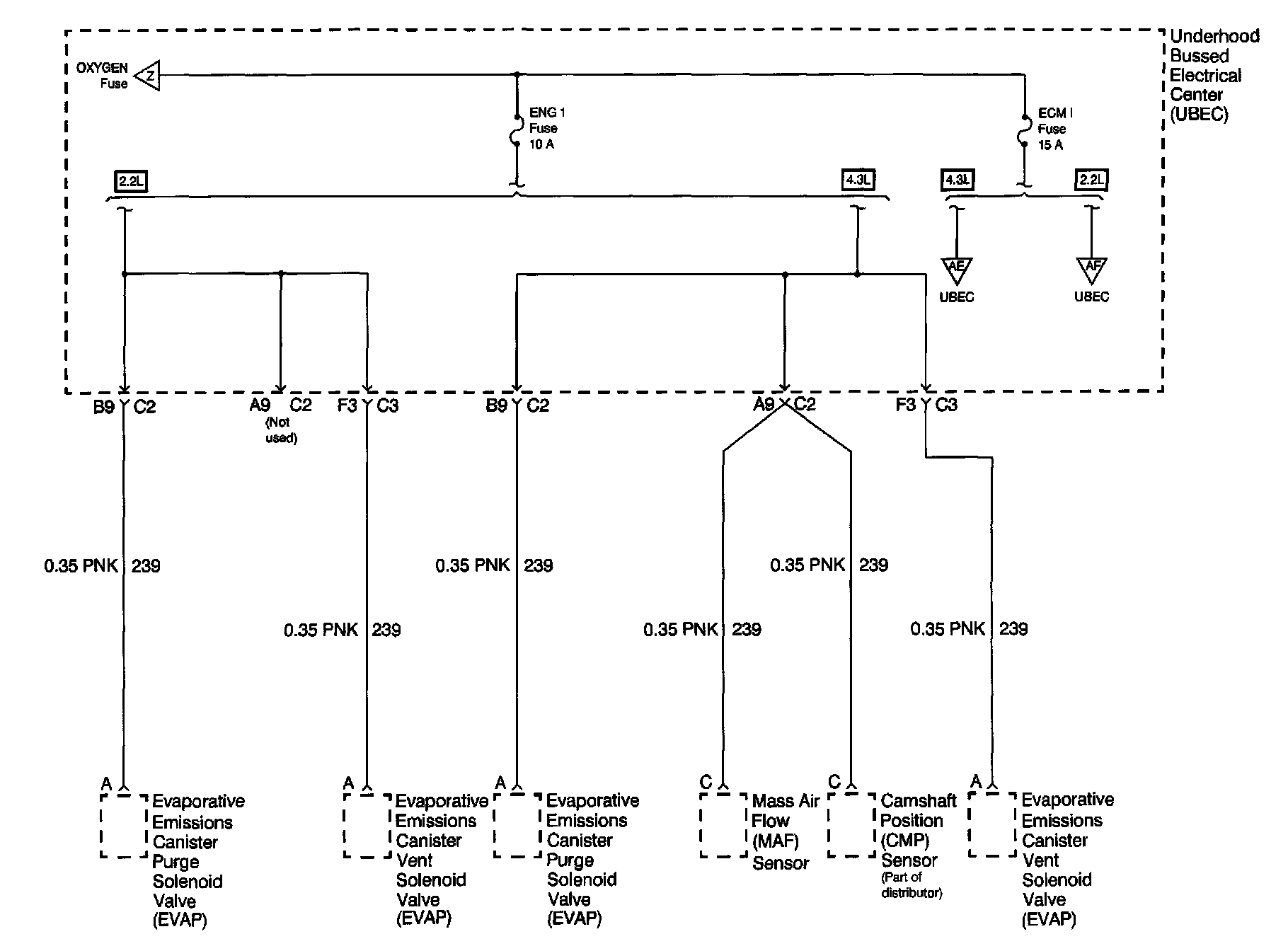

Power Distribution Schematics: ENG 1 And ECM Fuses:
