Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Automatic Transmission Starting
Automatic Transmission Starting

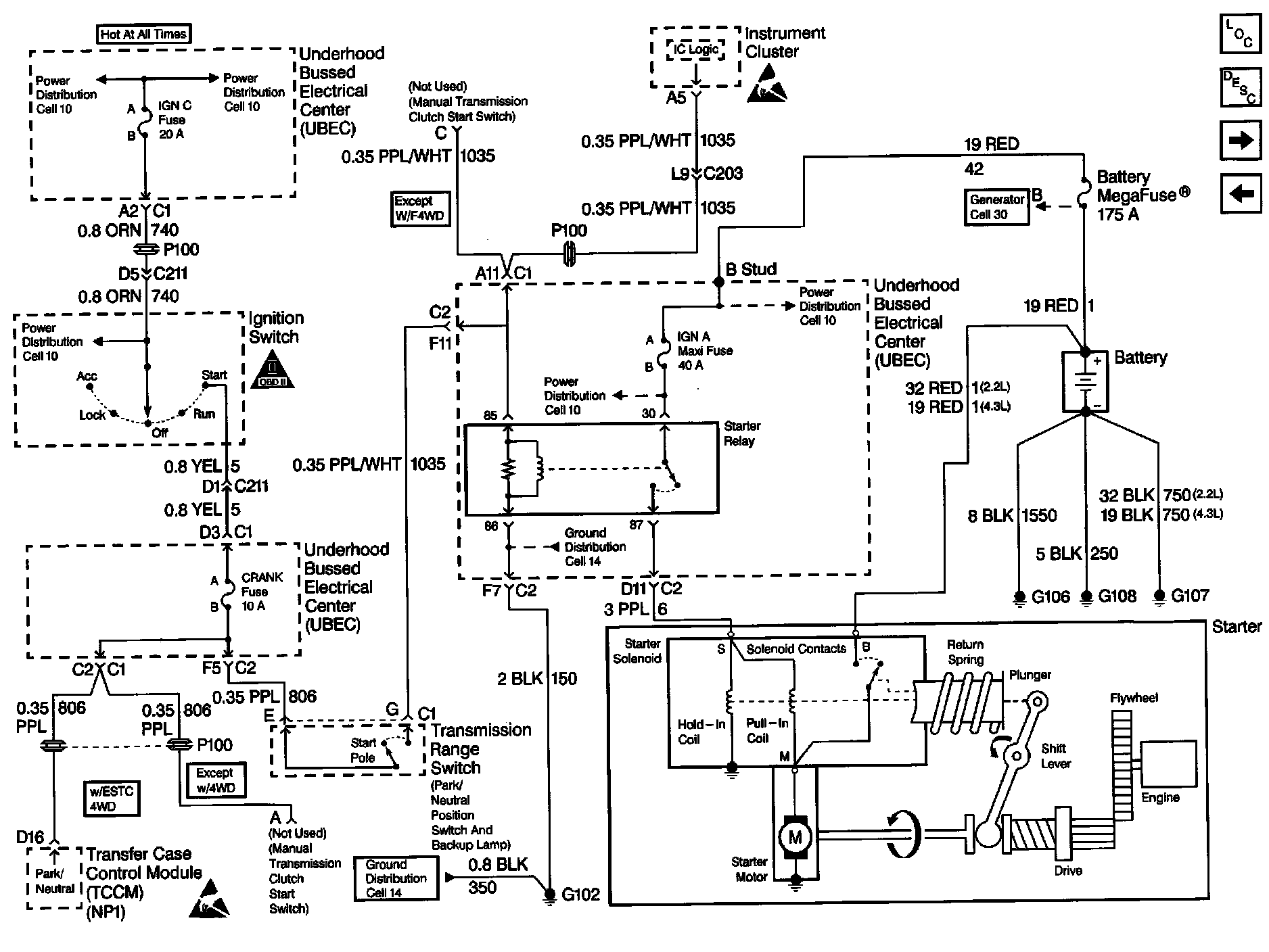

Starting And Charging Schematics: Automatic Transmission Starting:
