Installation Procedure

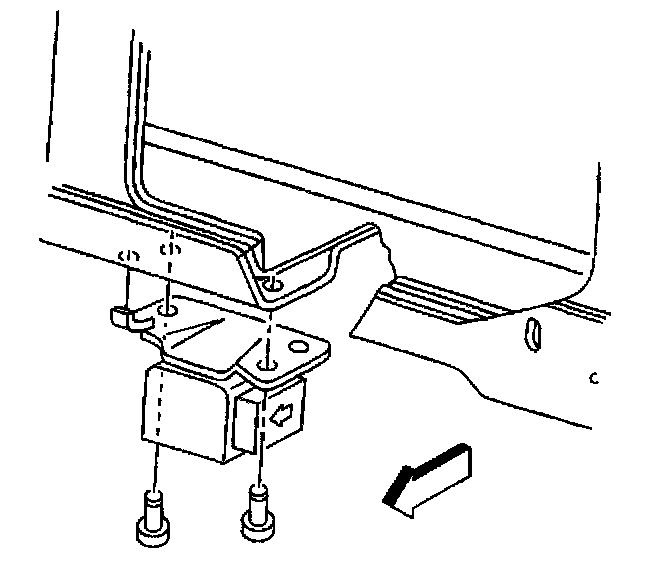

1. Install the inflatable restraint front end discriminating sensor to the lower radiator support surface make sure the arrow is pointing toward the front of the vehicle.
2. Install the inflatable restraint front end discriminating sensor mounting rivets (P/N 15715058).

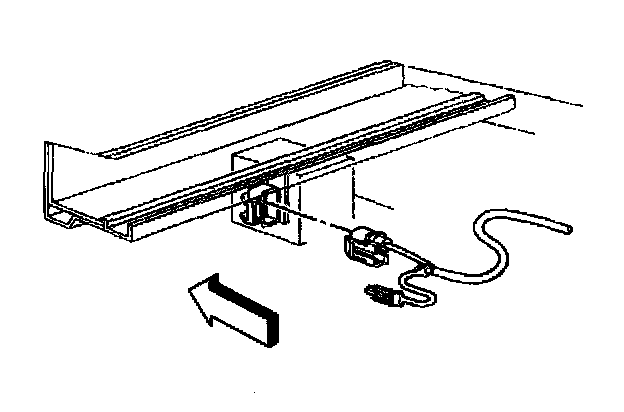

3. Connect the inflatable restraint front end discriminating sensor harness connector to the sensor.
4. Install the Connector Position Assurance (CPA) to the inflatable restraint front end discriminating sensor harness connector.
5. Install the off road skid plate in equipped.
6. Enable the SIR system. Refer to Enabling the SIR System. Enabling the SIR System
