Installation

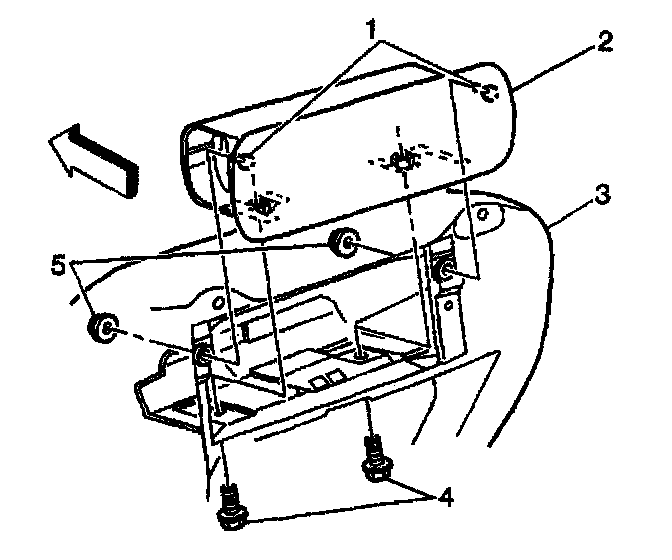

1. Install the inflatable restraint module to the instrument panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners that retain inflatable restraint module to the instrument panel.

Tighten
Tighten the fasteners to 8.0 N.m (70 lb in).

3. Install the instrument panel. Refer to Instrument Panel (IP) Carrier Replacement in Instrument Panel, Gauges and Console.
