Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Fog/Driving Lamp Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

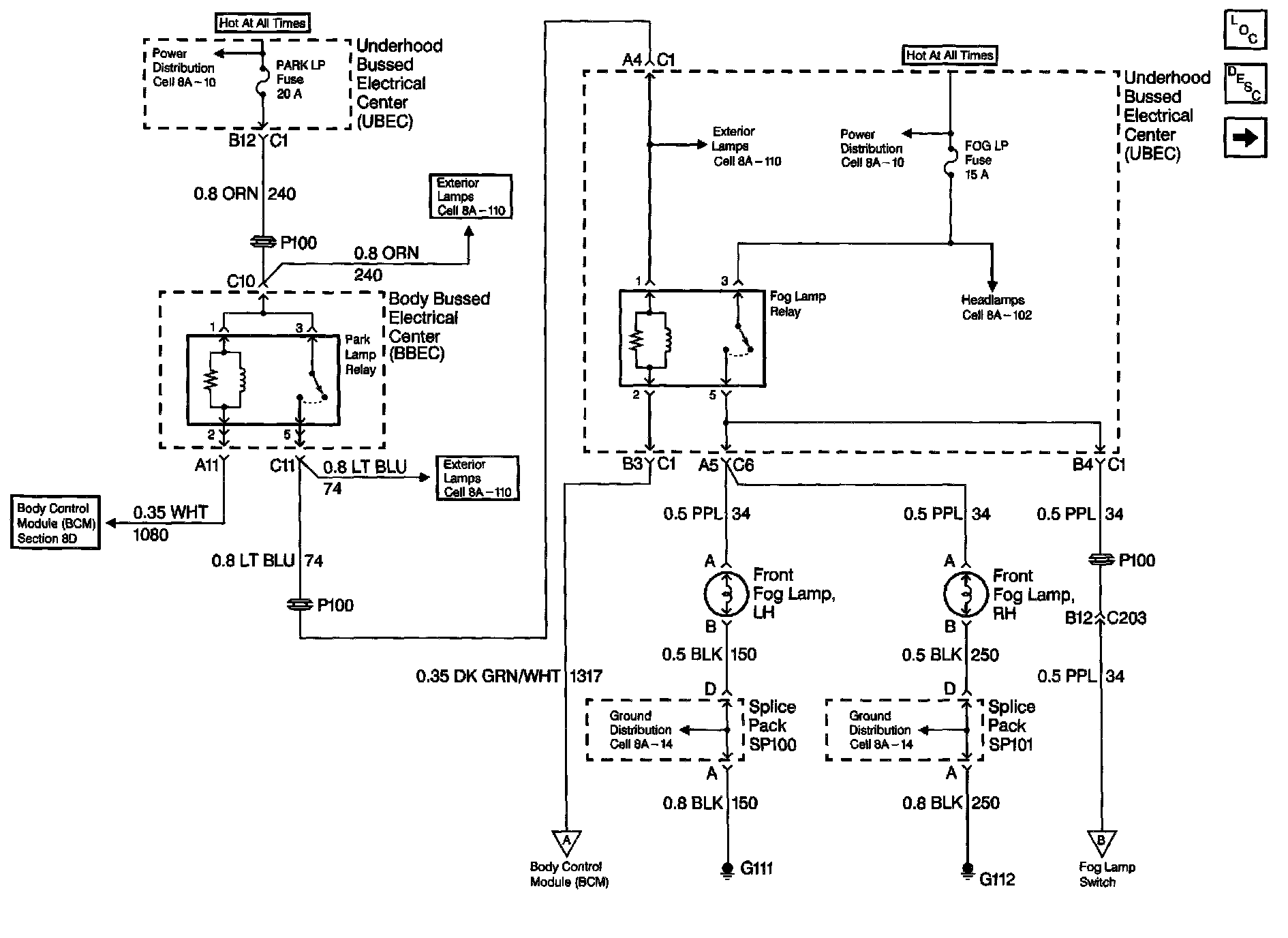

Fog Schematics: Fog Lamp Bulbs And Parklamp Relay:
