Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Locations
>>

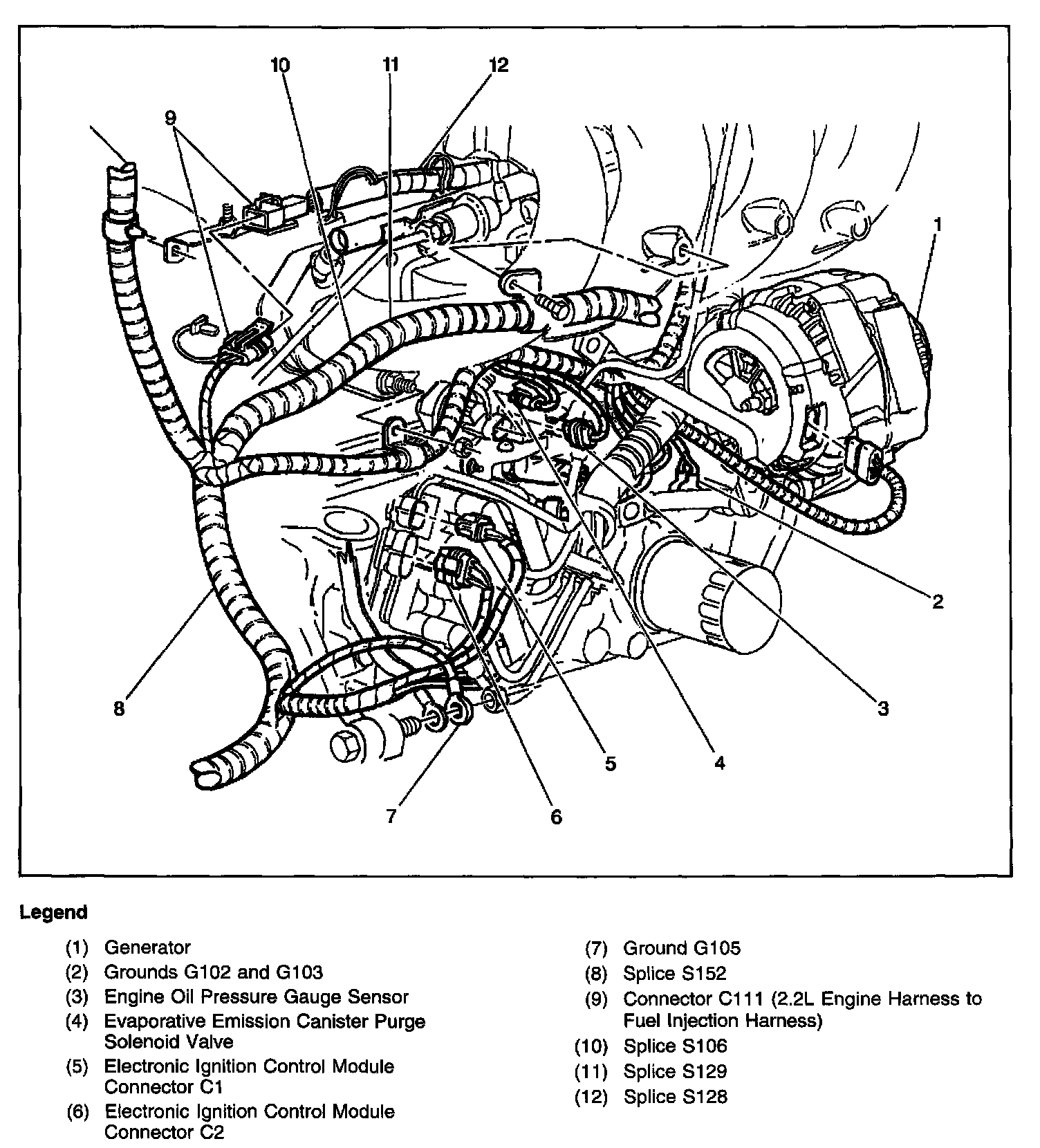

Electronic Ignition Control Module Connector C1, C2
Electronic Ignition Control Module Connector C1, C2
Engine Right Side Rear Locator View:
