Intake Air Resonator Replacement

Description:

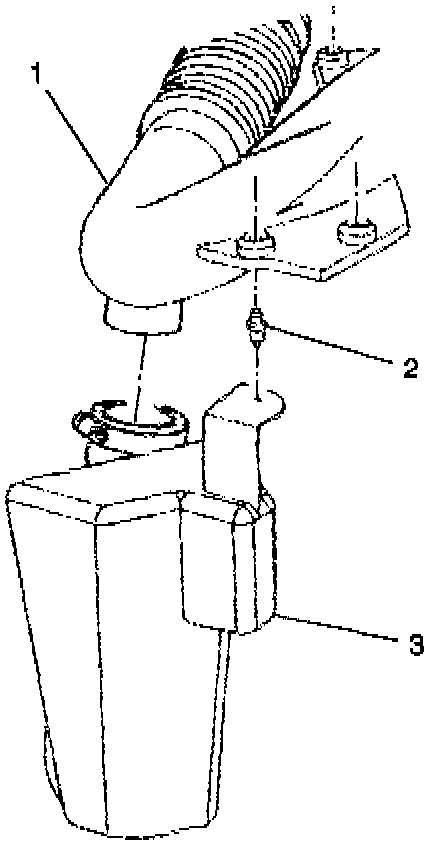

Removal Procedure

1. Loosen the intake air duct clamp.

2. Loosen the rivet (2).

3. Remove the Intake Air Duct Resonator (3) from the Intake Duct Assembly (1).


Installation Procedure

1. Position the resonator (3) in place.

2. Lock the rivet (2) on the resonator (3).

3. Reconnect the intake air duct clamp.
