Evaporative Emission Control Canister: Service and Repair

EVAP Canister:

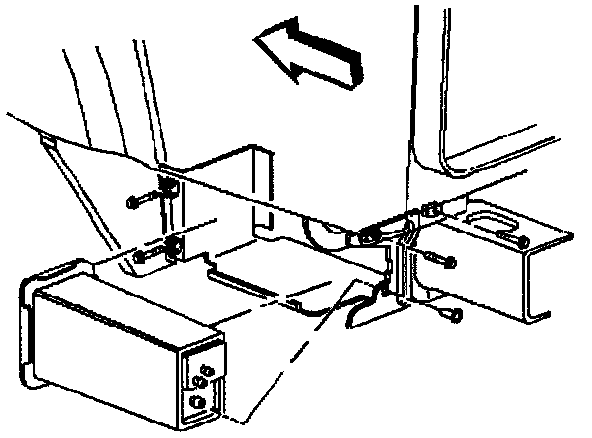

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the canister mounting bolts.
3. After marking the hoses, remove the hoses from the canister.
4. Remove the canister.

INSTALLATION PROCEDURE
1. Install the hoses onto the canister.
2. Install the canister to the bracket.
3. Install the canister mounting bolts.
4. Lower the vehicle.
