Vehicle Speed Sensor W/ Cruise Control
Vehicle Speed Sensor W/ Cruise Control

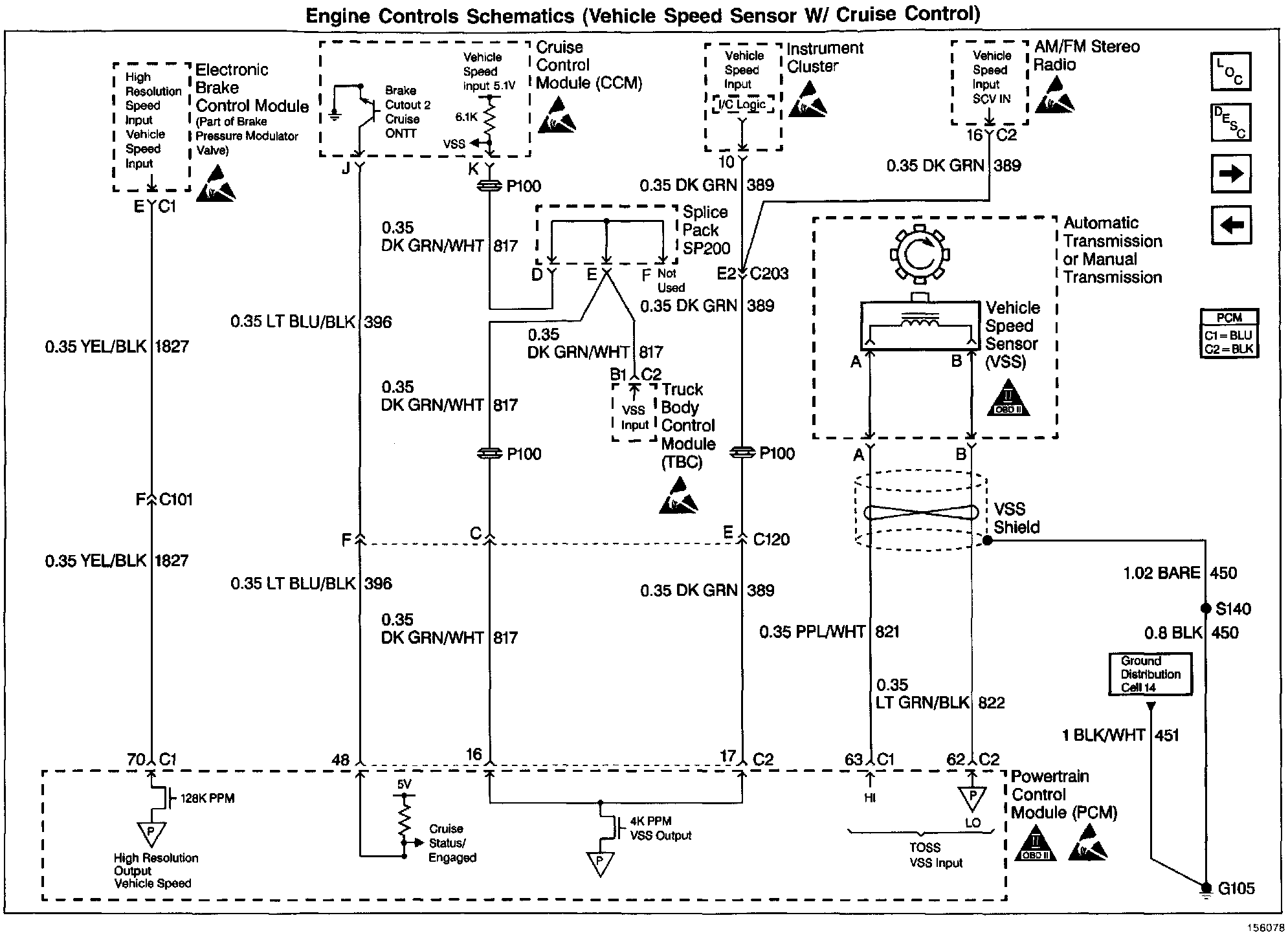

Wiring Diagram:
Wiring Diagram:
