Home >> Chevy Truck >> 1998 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Navigational Aids >> Power Distribution Schematics >> V - AF >> AD >> To

To

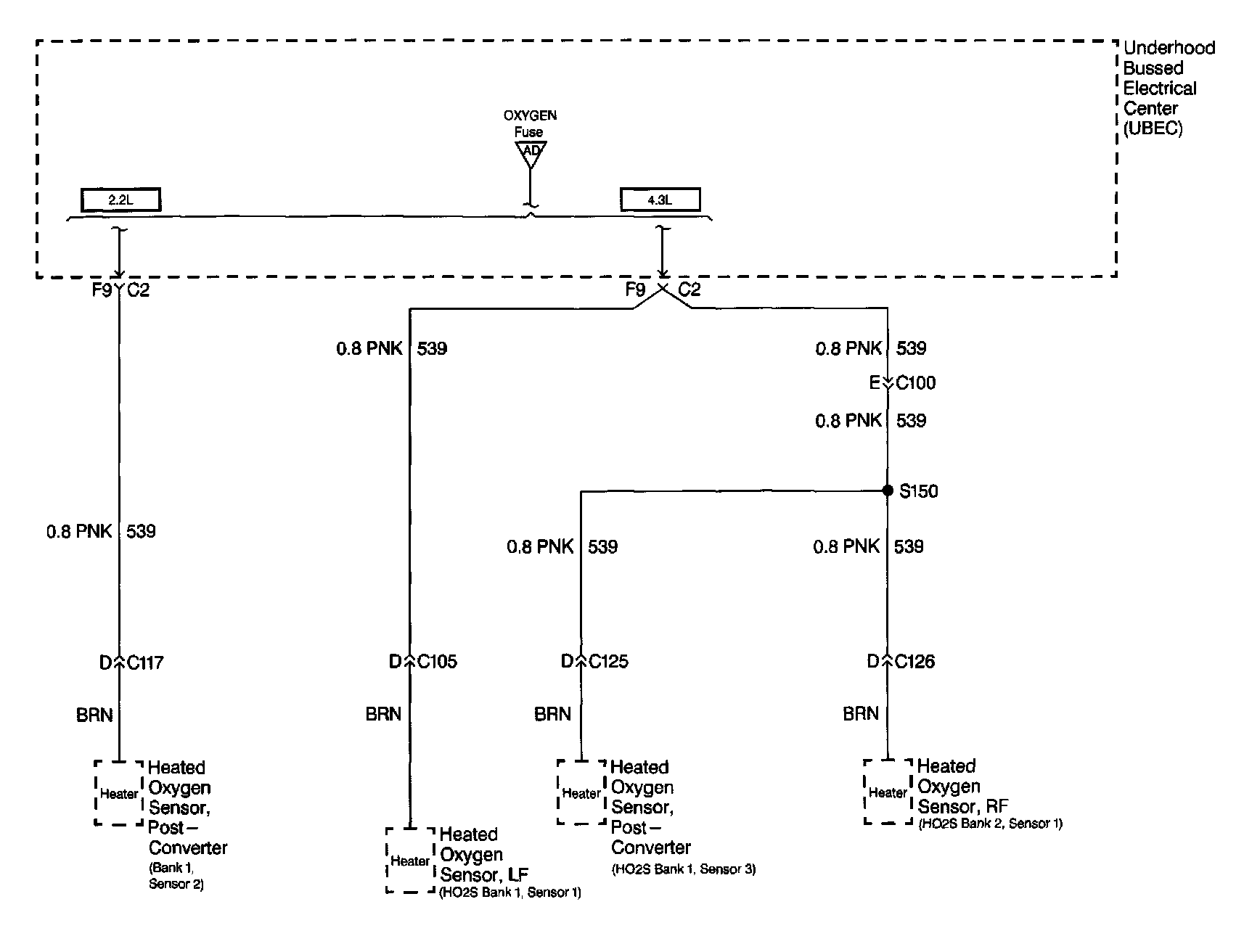

Power Distribution Schematics: UBEC And S150:
