Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Circuit Breakers
>>
Power Seats
Power Seats

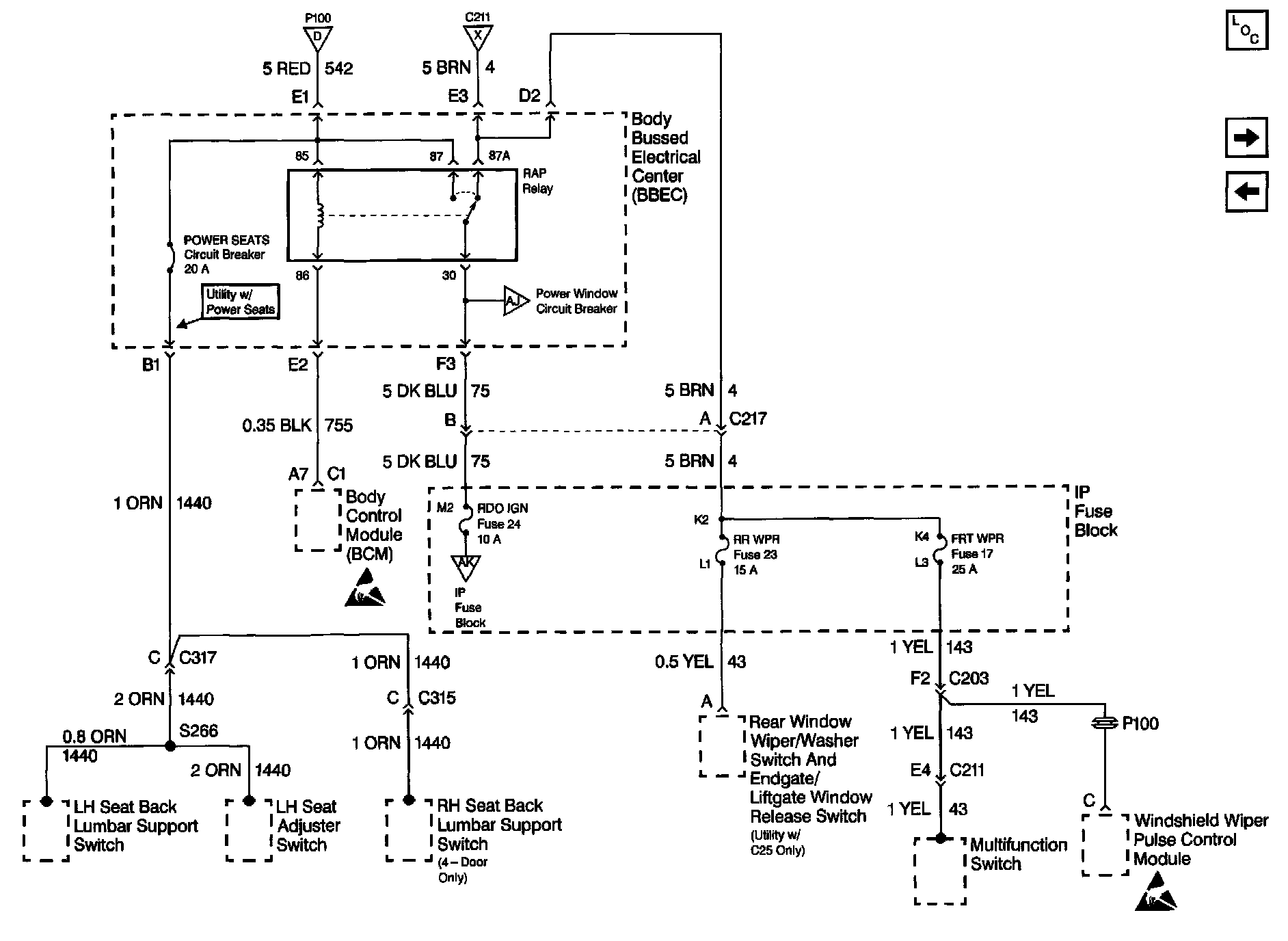

Power Distribution Schematics: RDO IGN, RR WPR And FRT WPR Fuses:
