Home >> Chevy Truck >> 1998 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Splice Pack SP203

Splice Pack SP203

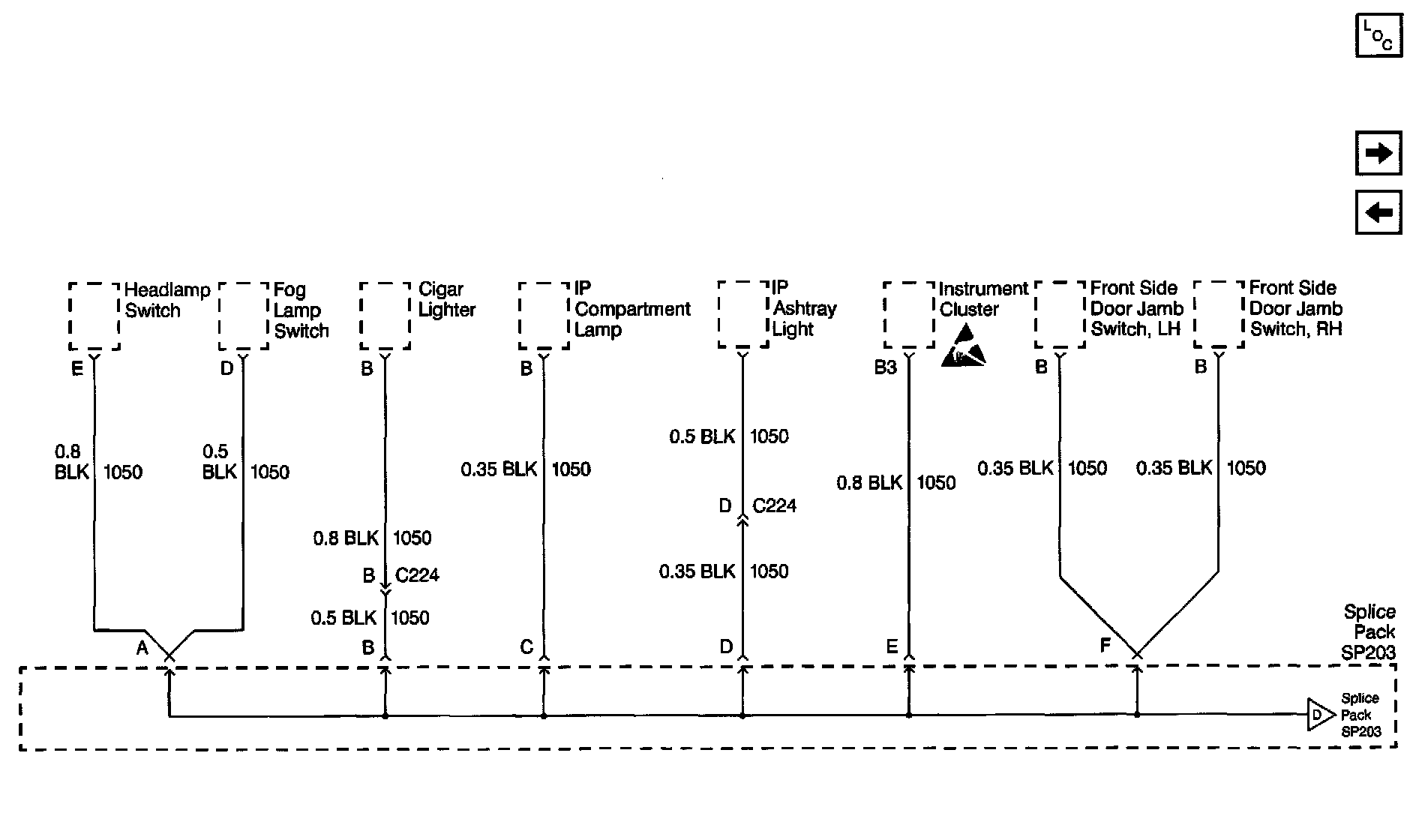

Ground Distribution Schematics: Splice Pack SP203 (Pickup):
