Ash Tray Lamp: Service and Repair

REMOVAL PROCEDURE




CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the battery negative cable.
2. Remove the ash tray.
3. Remove the knee bolster trim panel.

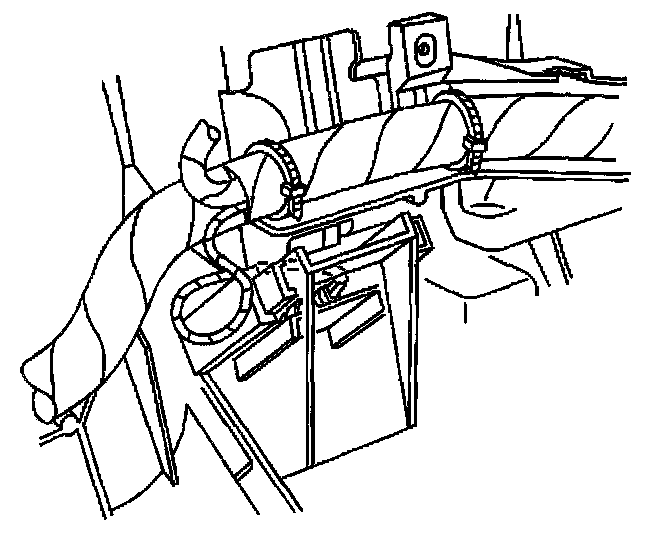

4. Remove the screws that retain the ash tray housing to the instrument panel.




5. Slide the ash tray housing forward.

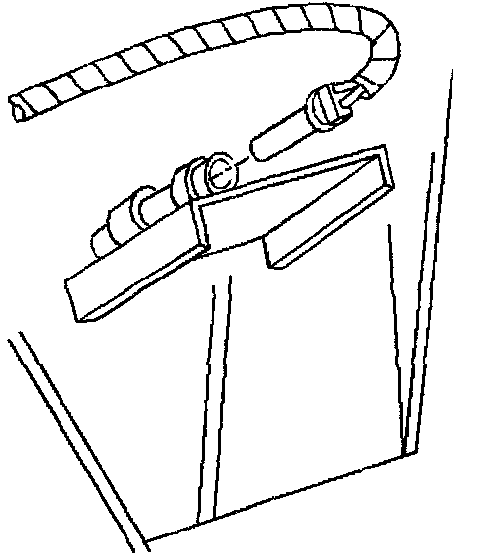

6. Remove the bulb from the ash tray housing.
6.1. Squeeze the metal tangs on the bulb shield.
6.2. Lift the bulb from the socket.

INSTALLATION PROCEDURE



1. Install the bulb to the ash tray housing.
- Insert the bulb into the socket.
- Squeeze the tangs on the bulb shield and push the bulb shield into the housing.




2. Slide the ash tray housing back into the instrument panel.
3. Install the screws that retain the ash tray housing to the instrument panel.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

4. Install the knee bolster trim panel.
5. Install the ash tray.
6. Connect the negative battery cable.
