Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Driver Information System
>>
W/O Trip Computer
W/O Trip Computer

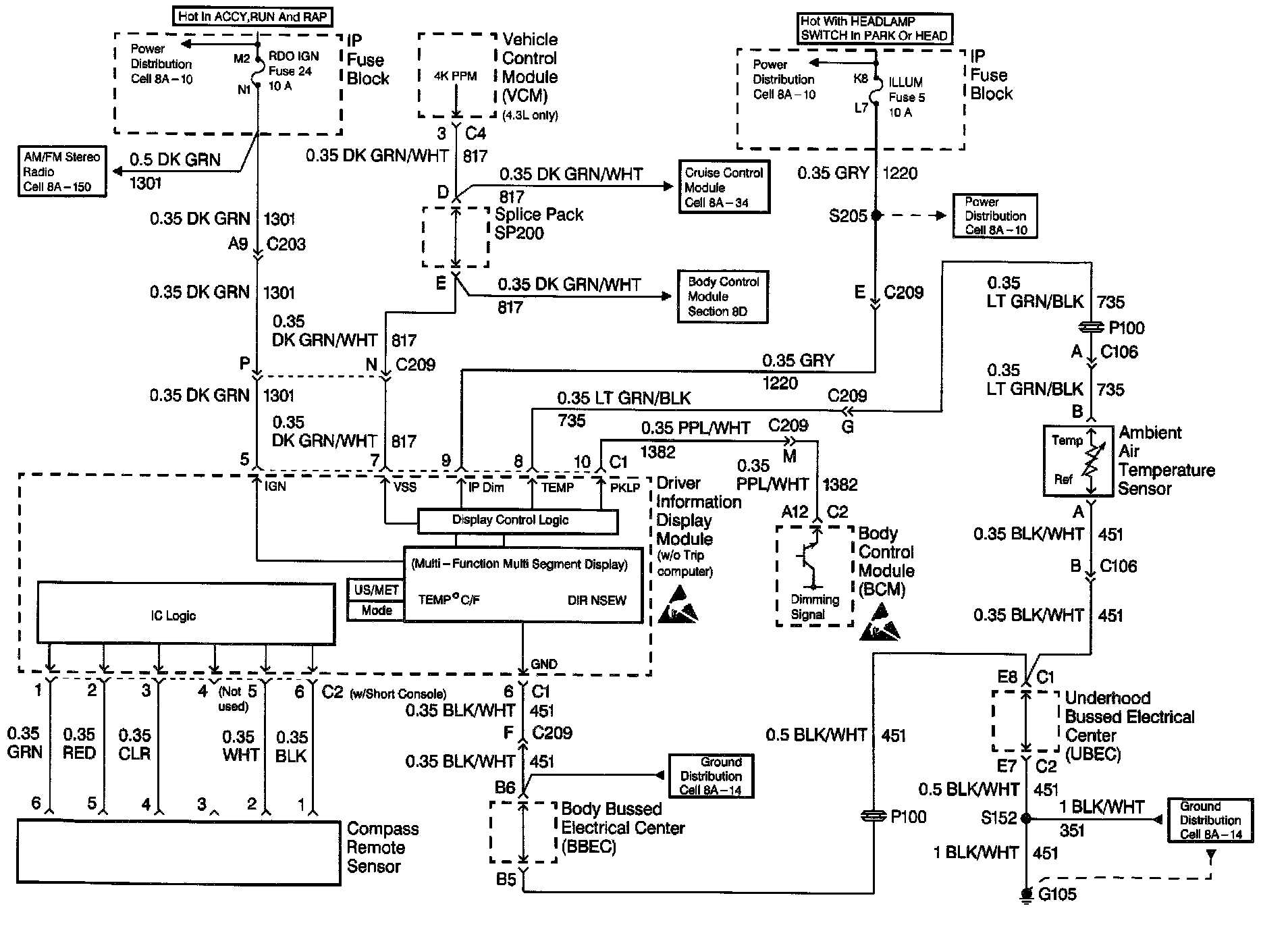

Driver Information System Schematics: W/O Trip Computer:
