Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
A/C System - Manual
>>

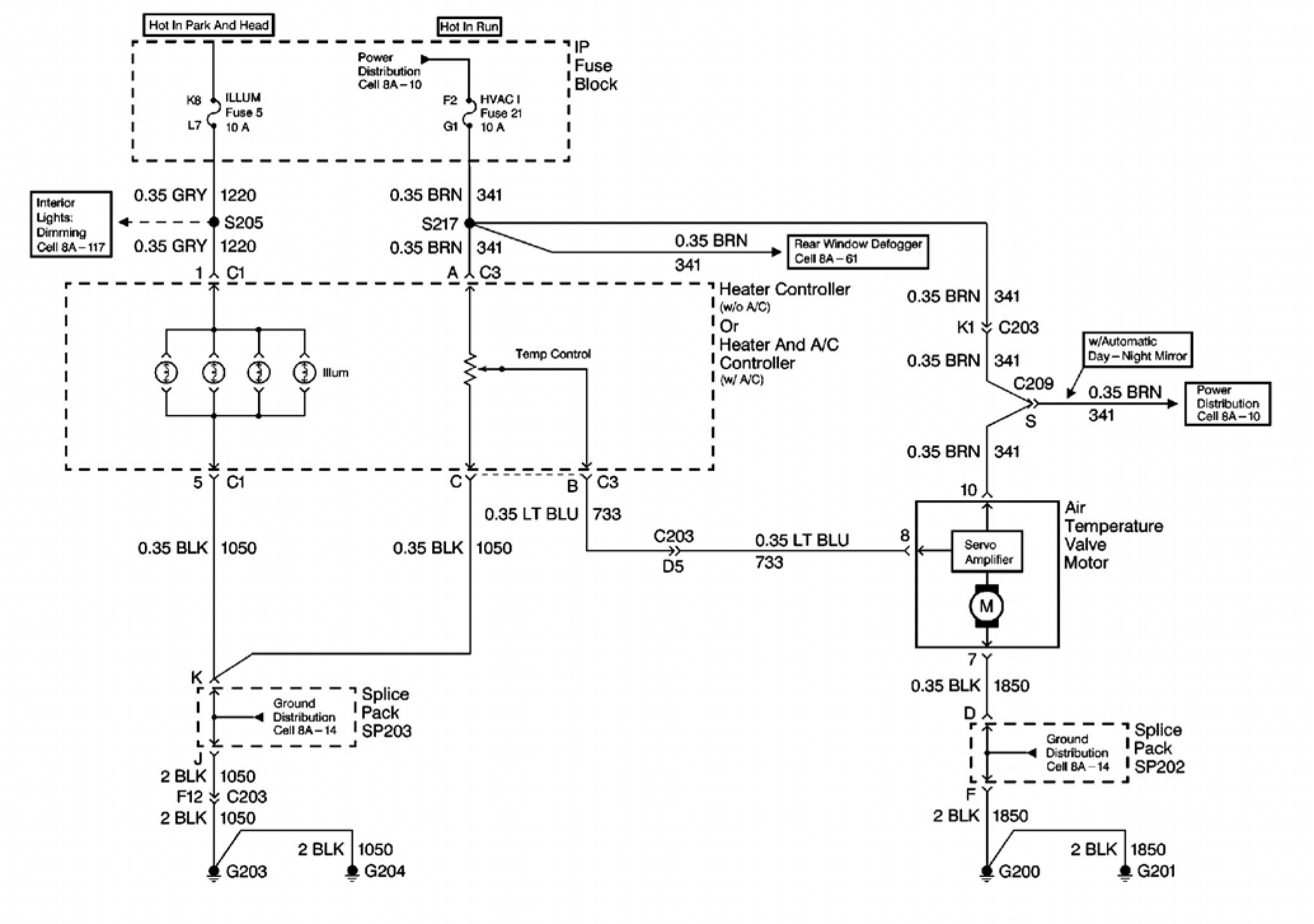

Air Delivery/Temperature Control
Air Delivery/Temperature Control
Pickup w/ Heat Only
All Except Pickup w/ Heat Only
