Floor Air Outlet

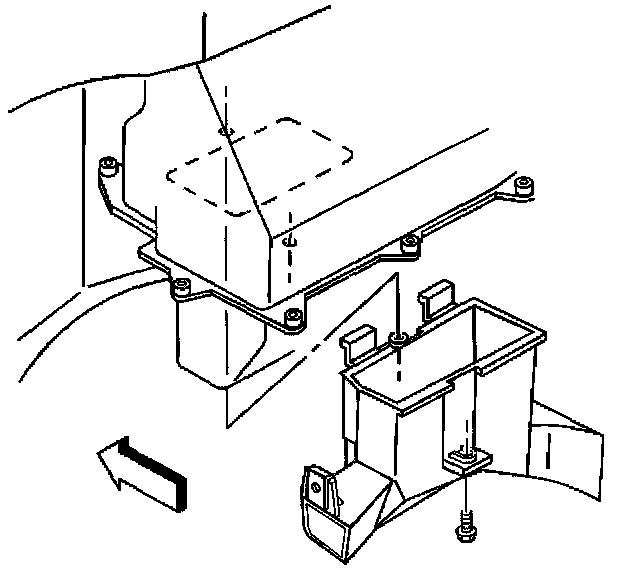

Removal Procedure

1. Remove the heater/vent module.
2. Remove the floor air outlet screws.





3. Remove the floor air outlet from the heat/vent module.

Installation Procedure





1. Install the floor air outlet. Ensure that the floor air outlet locks into place.
2. Install the floor air outlet screws.

Tighten
Tighten the screws to 3.1 N.m (27 lb in).

3. Install the heater/vent module.
