Lap

Removal Procedure

1. Remove the instrument panel.

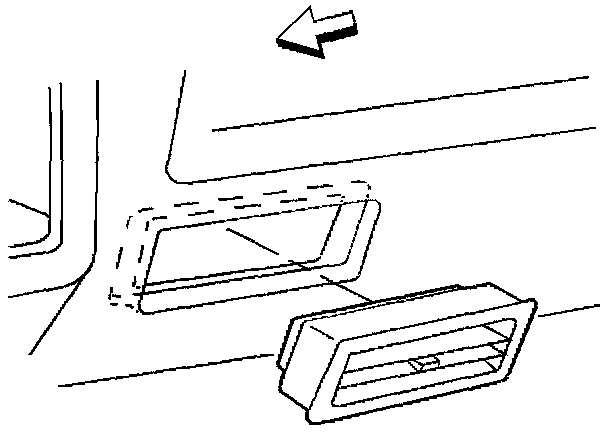

2. Remove the lap air outlet, if necessary.

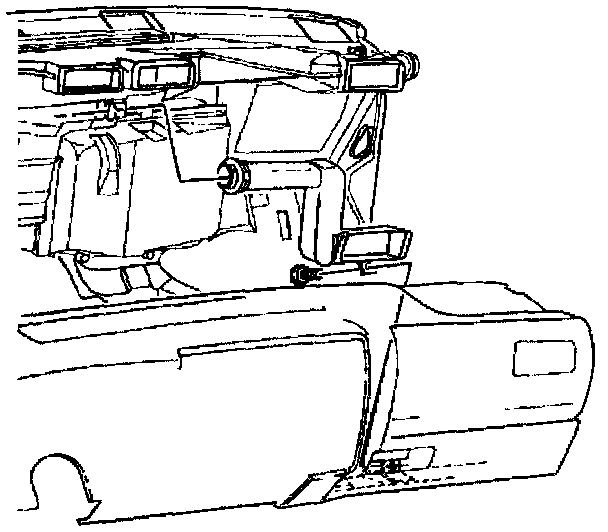

3. Remove the lap air outlet duct screw.





4. Remove the lap air outlet duct from the air distributor duct assembly.

Installation Procedure





1. Install the lap air outlet duct to the air distributor duct assembly.

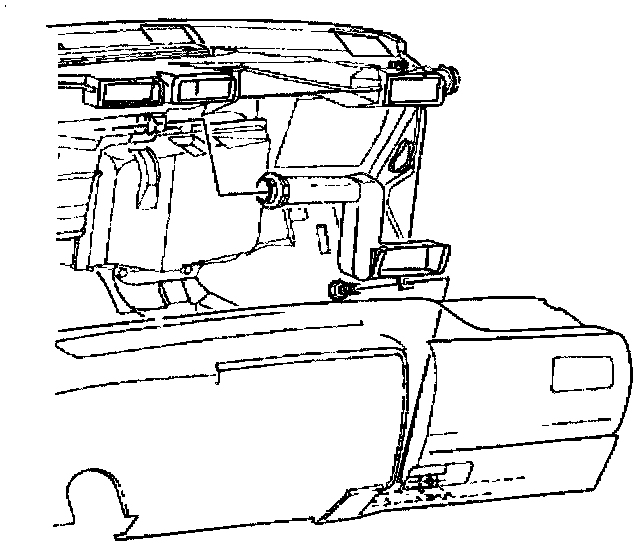

2. Install the lap air outlet screw.

Tighten
Tighten the screw to 1.9 N.m (17 lb in).

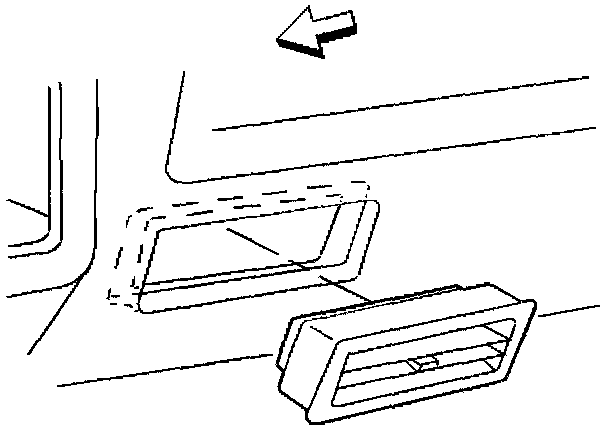

3. Install the lap air outlet, if necessary.
4. Install the instrument panel.
