Floor

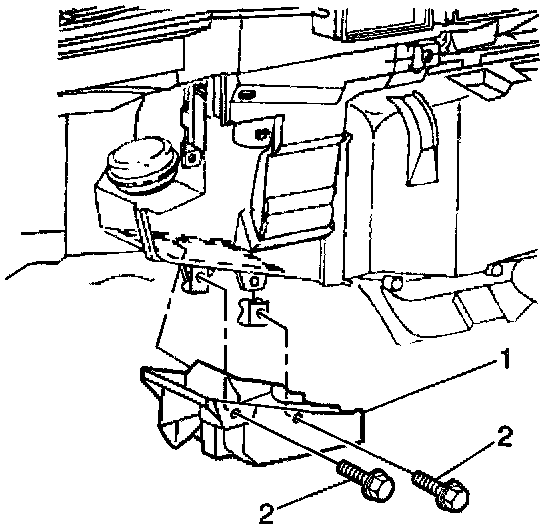

Removal Procedure

1. Remove the instrument panel sound insulator.
2. Remove the floor air outlet screws (2).
3. Remove the floor air outlet (1).

Installation Procedure

1. Install the floor air outlet (1).
2. Install the floor air outlet screws (2).

Tighten
Tighten the screws (2) to 3.1 N.m (27 lb in).

3. Install the instrument panel sound insulator.
