Defroster

Removal Procedure

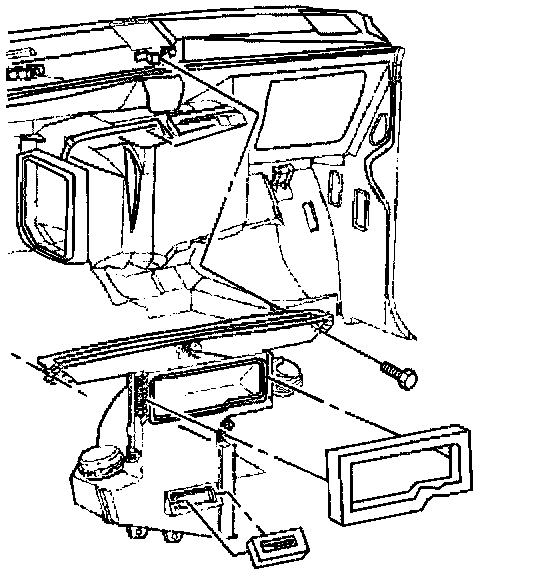

1. Remove the air distributor duct.
2. Remove the vacuum connectors as necessary.
3. Remove the windshield defroster nozzle screws.
4. Remove the windshield defroster nozzle from the heater assembly.

Installation Procedure

1. Install the windshield defroster nozzle to the heater assembly.
2. Install the windshield defroster nozzle screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the vacuum connectors, as necessary.
4. Install the air distributor duct.
