Air Distributor Duct

Removal Procedure

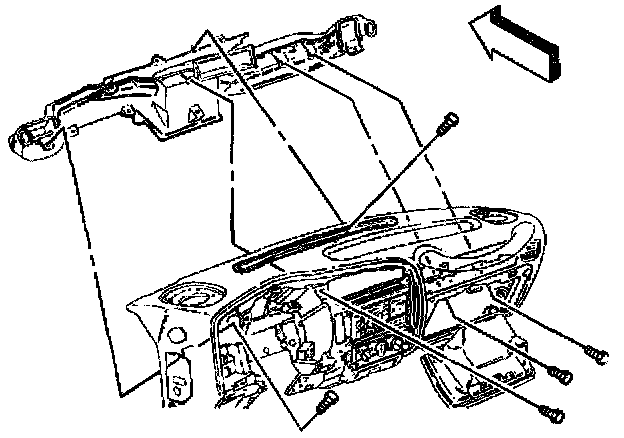

1. Remove the instrument panel.

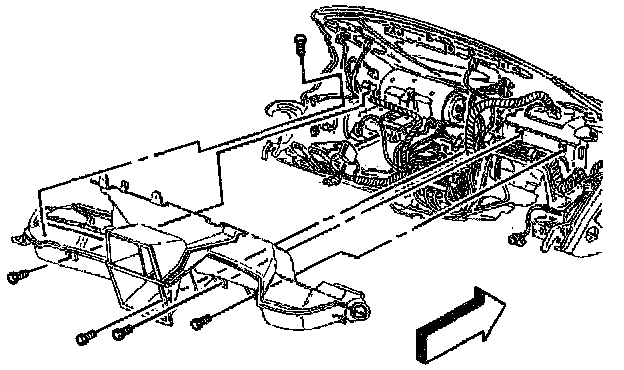

2. Remove the driver side air distributor duct screws.





3. Remove the cowl side air distributor duct screws.
4. Remove the air distributor duct.

Installation Procedure

1. Install the air distributor duct.





2. Install the cowl side air distributor duct screws.





3. Install the driver side air distributor dust screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

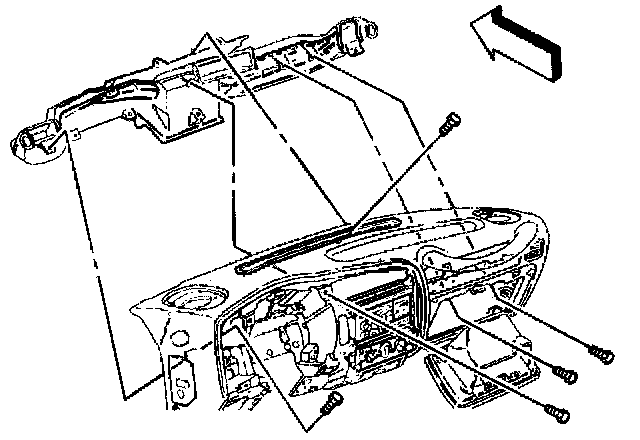

4. Install the instrument panel.
