Exhaust Pipe: Service and Repair

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle.
2. Remove the catalytic converter.

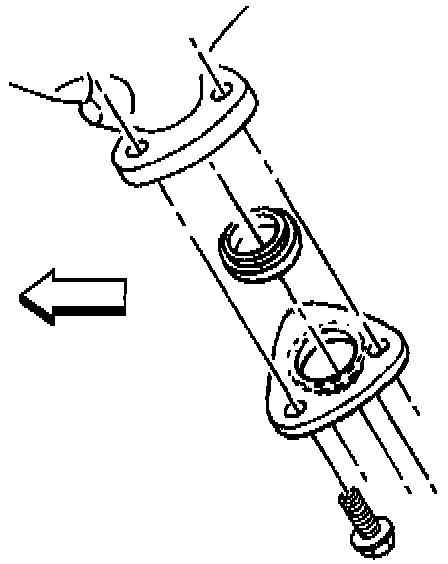

3. Remove the exhaust manifold pipe to manifold flange bolts.
4. Remove the exhaust manifold pipe and seal from the vehicle.

INSTALLATION PROCEDURE

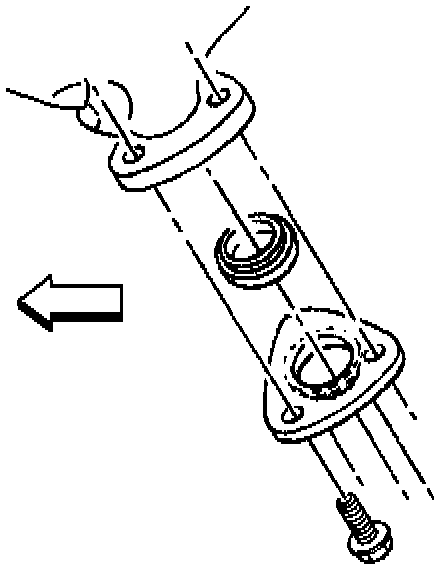

1. Install the exhaust manifold pipe and new seal to the vehicle.
2. Install the exhaust manifold pipe to manifold flange bolts.
^ Tighten the exhaust manifold pipe to manifold flange bolts to 30 Nm (22 ft. lbs.).

3. Install the catalytic converter.
4. Lower the vehicle.
