Valve Rocker Arm Cover Removal

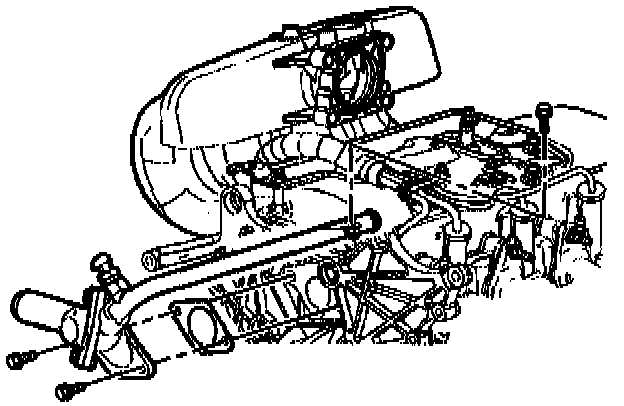

1. Remove the water outlet adapter.

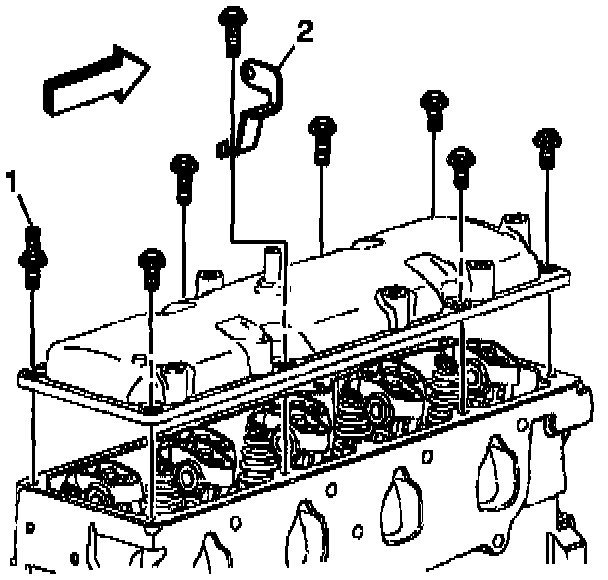

2. Remove the rocker arm cover bolts, the rocker arm cover bolt stud (1), and the injector harness bracket (3).
3. Remove the rocker arm cover.
4. Remove the rocker arm cover gasket.
