Intake Manifold Removal

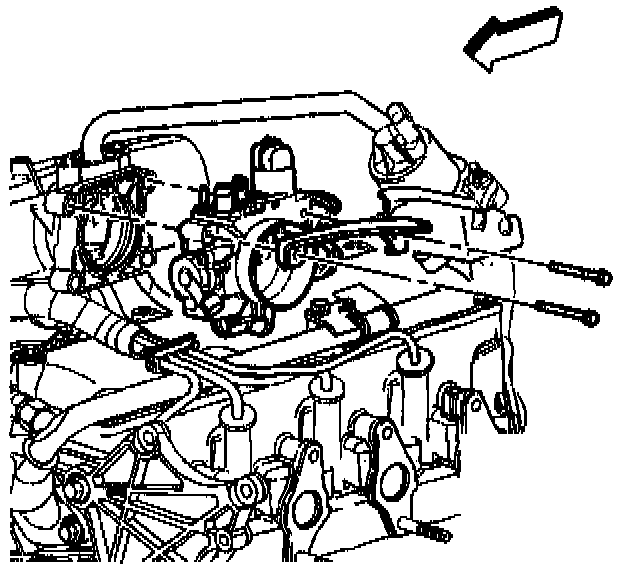

1. Remove the throttle cable support bracket and throttle body.

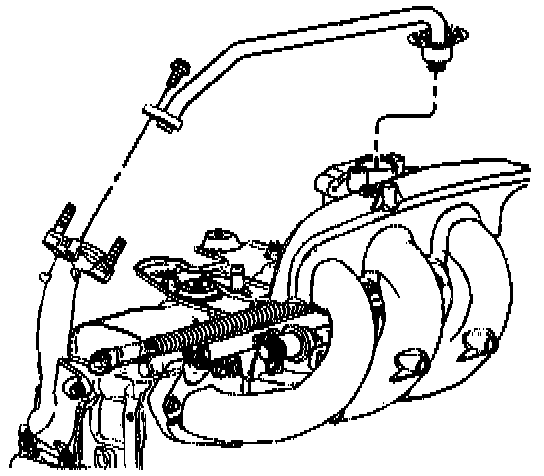

2. Remove the throttle body.

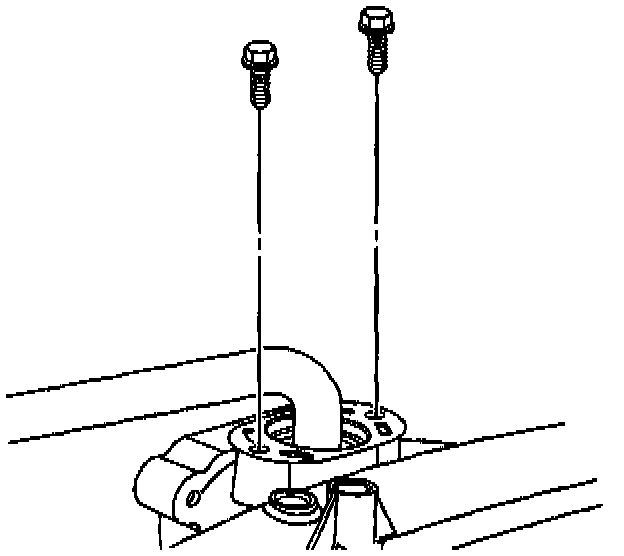

3. Remove the EGR pipe to manifold bolts.





4. Remove the EGR pipe to EGR adapter bolt.
5. Remove the EGR pipe.

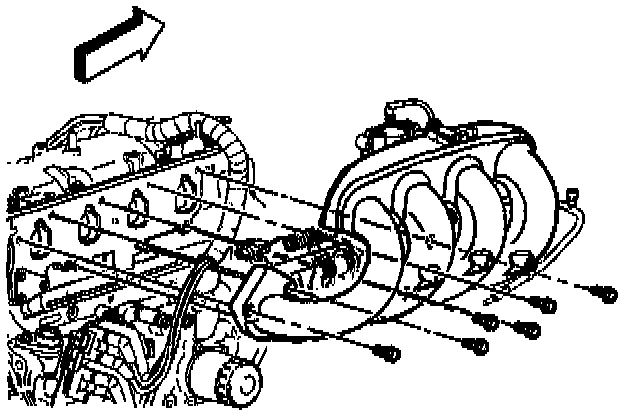

6. Remove the intake manifold bolts.
7. Remove the intake manifold nuts.
8. Remove the fuel rail bracket.
9. Remove the intake manifold.
