Crankshaft Balancer and Hub Removal

^ Tool Required
- J 24420-B Crankshaft Pulley Hub Puller

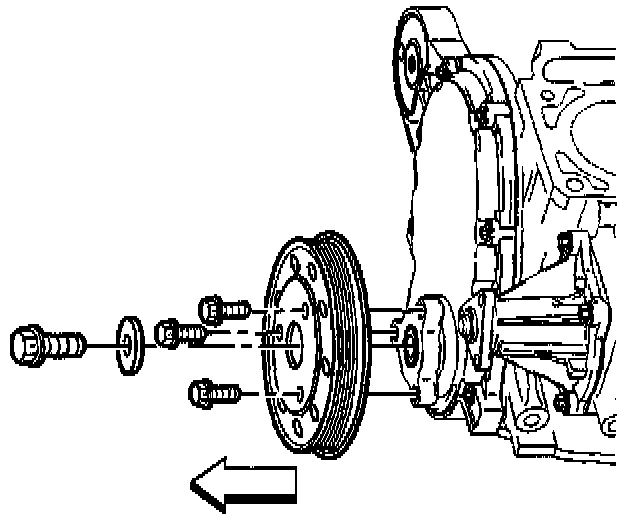

1. Remove the crankshaft pulley bolts and crankshaft hub bolt.
2. Remove the crankshaft pulley.

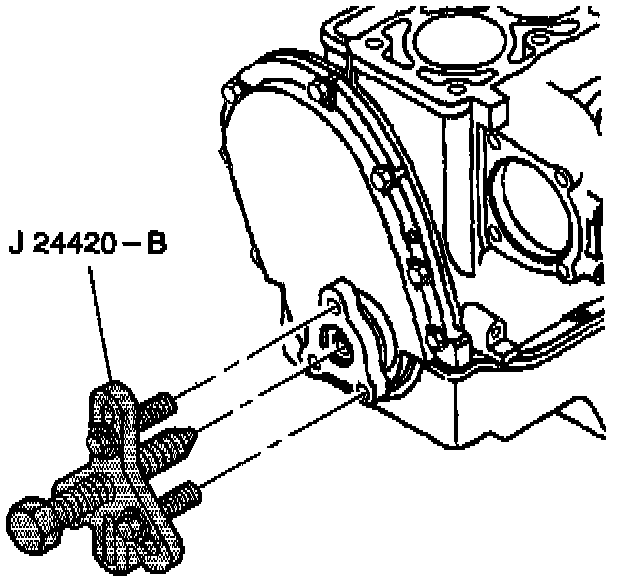

3. Position the J 24420-B onto the crankshaft pulley hub.

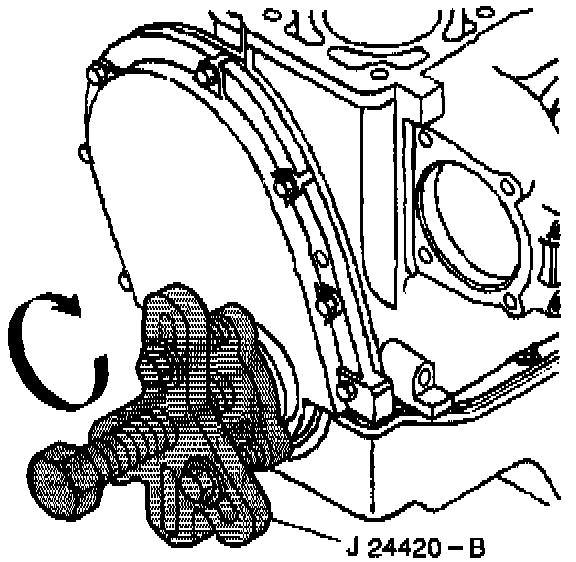

4. Using J 24420-B, turn the puller screw clockwise.





5. Remove the hub from the crankshaft.
