Camshaft Removal

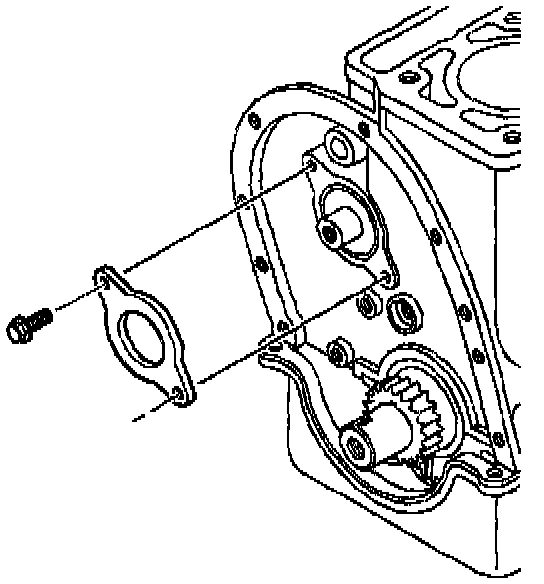

1. Remove the camshaft thrust plate bolts.





2. Remove the camshaft position sensor.





IMPORTANT: Do not damage the camshaft bearings while removing the camshaft.

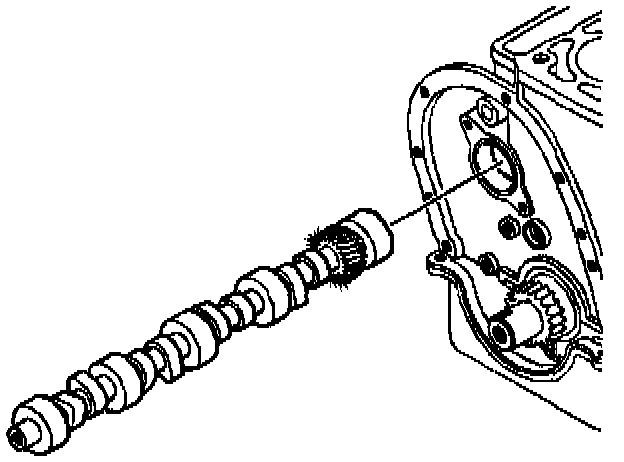

3. Remove the camshaft.
